| Type of relay | installation |
|---|---|
| Contacts configuration | NO |
| Mounting | in mounting box |
| Switching method | OFF-ON |
| Max. operating current | 10A |
| Operating temperature | -25...50°C |
| IP rating | IP20 |
| Supply voltage | 230V AC |
| MPN | BIS-402 |
| Type | bistable, impulse |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Brand | F&F |
| Manufacturer Part Number | 435019 |
| EAN | 5908312594062 |

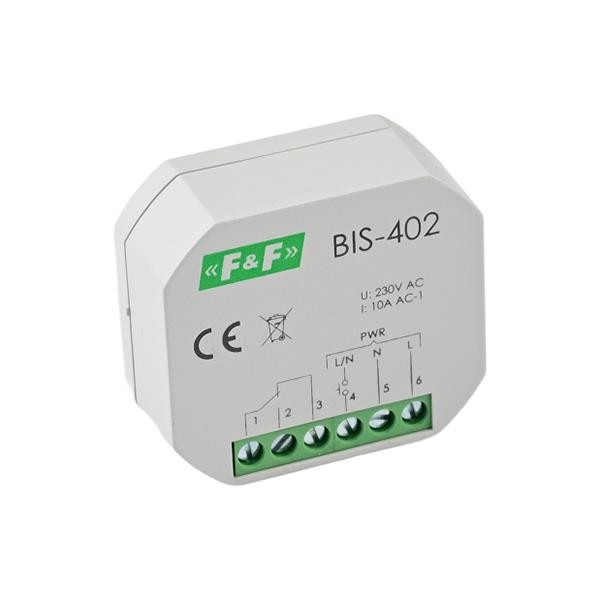

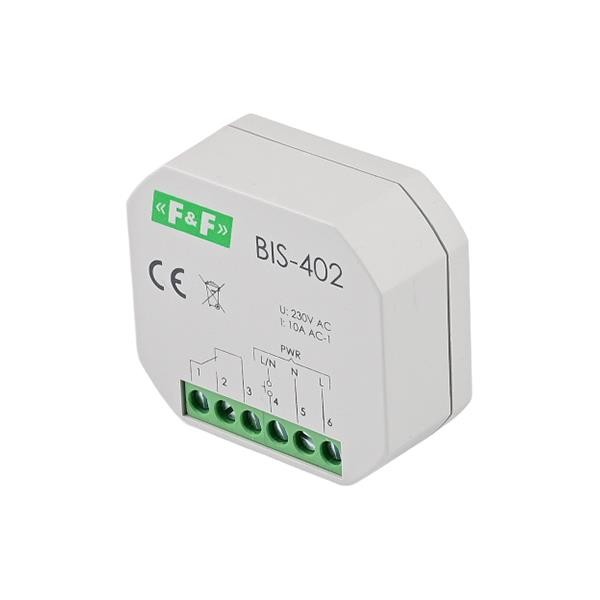

Check the listing for details. Relay: bistable, pulse, 10A, 230VAC, SPDT. Condition: New. Listed at 20.21 USD. Bistable Relay 230Vac 10A Ø55mm -20...50°C F&FA bistable relay, also known as an impulse relay, is an electronic device designed to control various devices, such as lighting, motors, alarms, etc., from different locations. This relay allows you to control the devices using buttons that are connected in parallel.The F&F BIS-402 relay is compact and easy to install. It has a large operating temperature range (-20...+50°C) and is reliable and durable.Main features:Supply voltage: 230VacCurrent Load: 10AControl current:
You may also like
$25.42

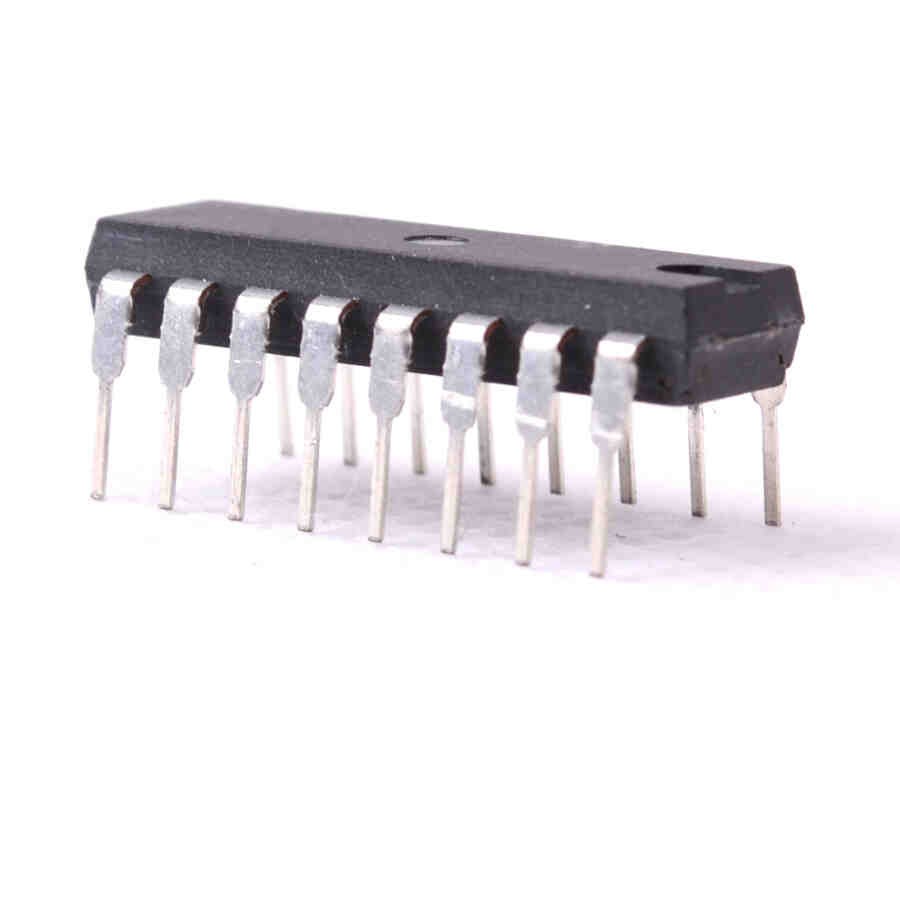

SN54367AJ SemiConductor - CUSTODIA: DIP16 MAKE: Generic
$25.42
UA8560D SemiConductor - CUSTODIA: DIP40 MAKE: RFT
$25.24

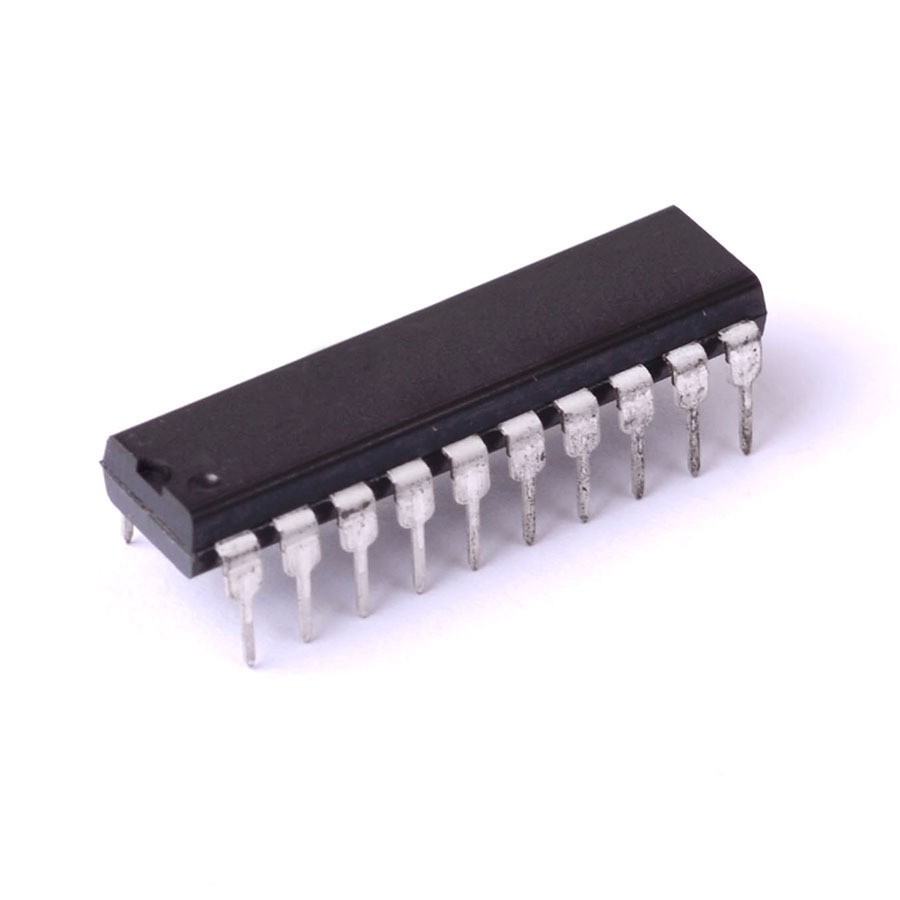

SN74ALS642AN SemiConductor - CUSTODIA: DIP20 MAKE: Generic
$25.42
SN74LS353N SemiConductor - CUSTODIA: DIP16 MAKE: Generic
$25.42
PIC16C505-04IR Integrated Circuit - CUSTODIA: DIP14 MAKE: Generic
$25.24
VND14NV04-E Semiconductor - CUSTODIA: Standard MAKE: Generic
$522.56
1PC CM09IG100TJB asynchronous motor motor
$25.42
U406 SemiConductor - CUSTODIA: TO71 MAKE: SILICONIX
$25.24
SN74HC151N SemiConductor - CUSTODIA: Standard MAKE: Generic
$233.14
1PC printing machine solenoid valve SYJ5120-5GD-M5
$9.99

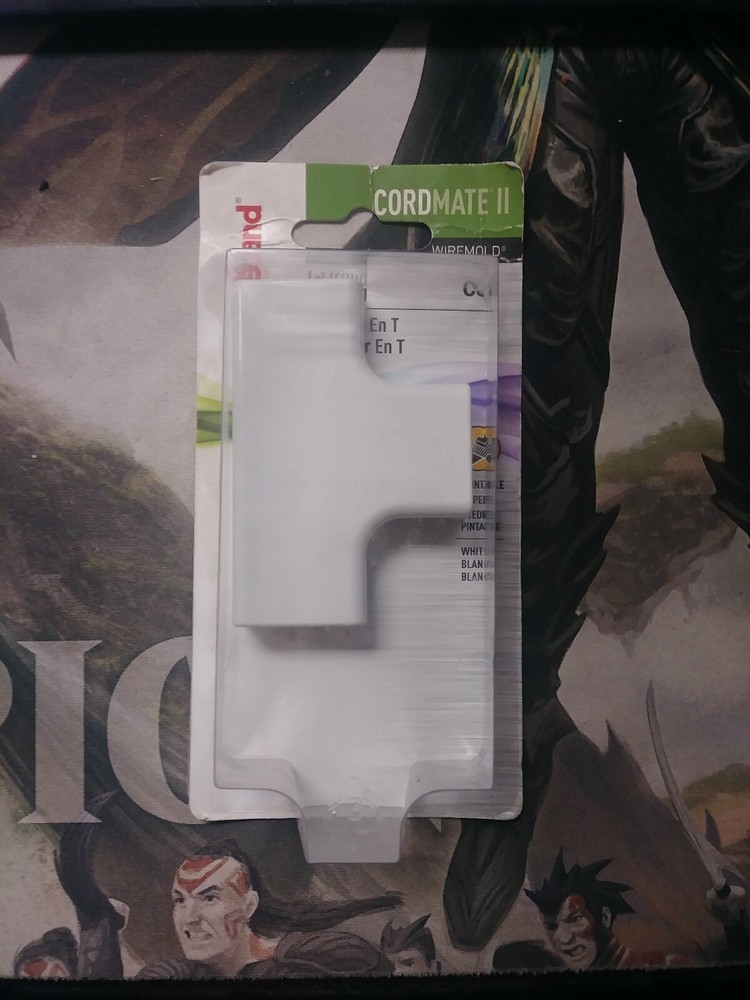

Cordmate 2 T Fitting C51
