| Current Output | 10A |
|---|---|
| Protection Level | IP20 |
| Nominal System Voltage | 36V / 48V, Auto Recognition (Non-Lithium) |
| Battery Operating Range | 30 ~ 65 VDC |
| System Configuration | Off-Grid |
| Power Source | Solar |
| Max Input Current (short-circuit, Isc) | 35A |
| Ground Type | Common Negative Lug (M3) |
| Dimensions | 8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm |
| MPN | RCC10RVRB-US |
| Battery Types | AGM/Sealed, GEL, FLOODED, LFP, USER* |
| Weight | 2.65 lbs / 1.2 Kg |
| Brand | Renogy |
| Max. PV Input Power | PV Input Power: 500W/36V; 650W/48V;Charging Power: 450W/36V; 600W |
| Type | Solar Charge Controller |
| Power Limiting Protection | Up to 600W/36V; 800W/48V |
| Current Type | DC |
| Solar Input Voltage Range (VOC) | 15 ~ 25VDC / 36V;15 ~ 40VDC / 48V |
| Model | MPPT |
| MPPT Voltage Range | 15 ~ 25VDC / 36V;15 ~ 40VDC / 48V |
| Rated Charge Current | 10A |
| Charging Mode | MPPT (Maximum Power Point Tracking) |
| Power Consumption | ≤ 2W |
| Application | Back-up Power, Camping/Hiking, Electronics, Home/Garden, Recreational Vehicle (RV), Shed |

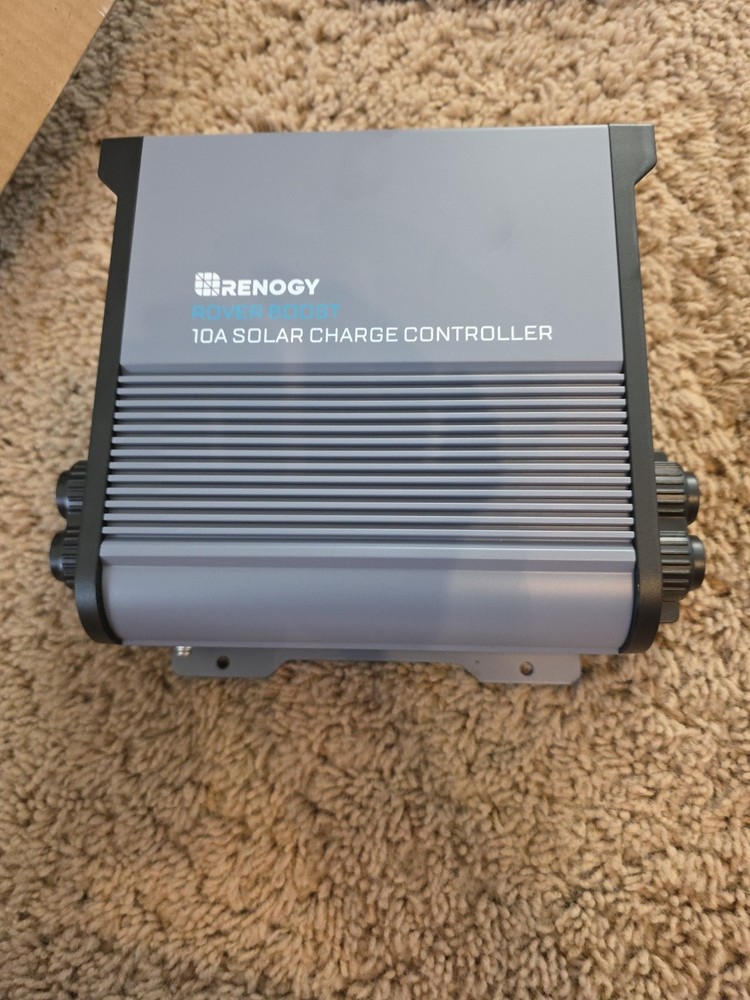

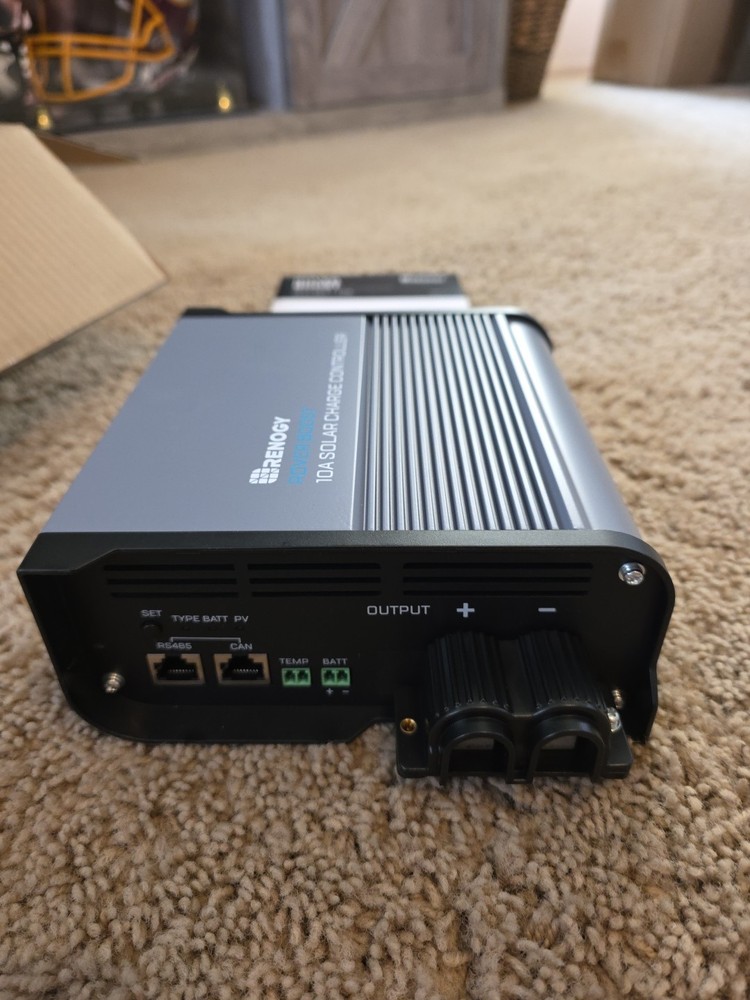

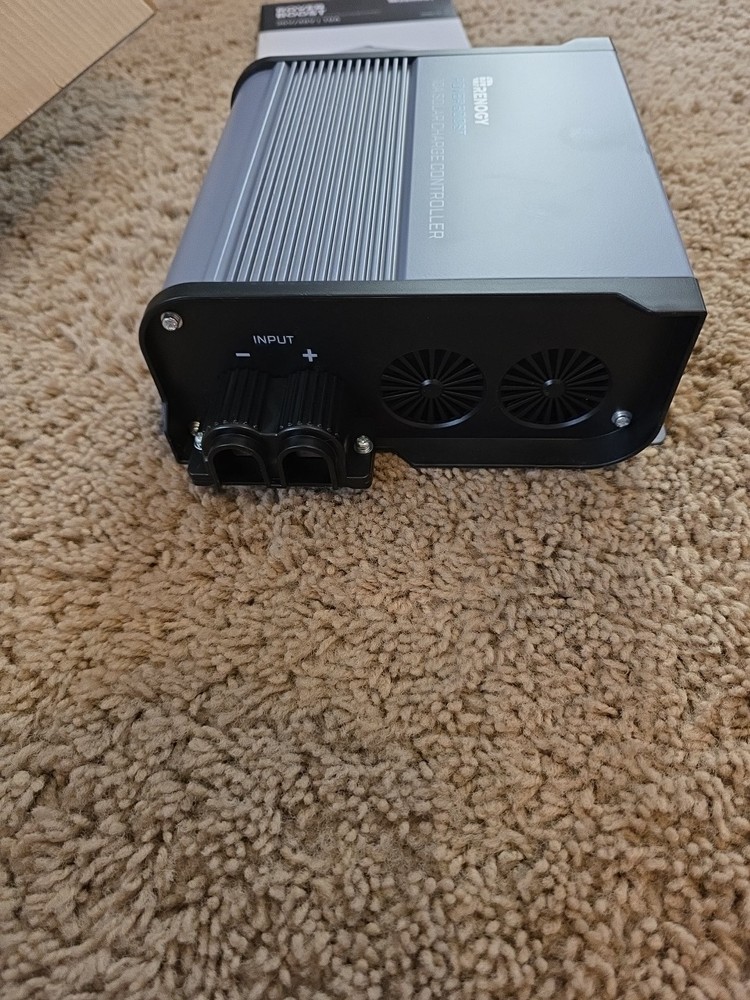

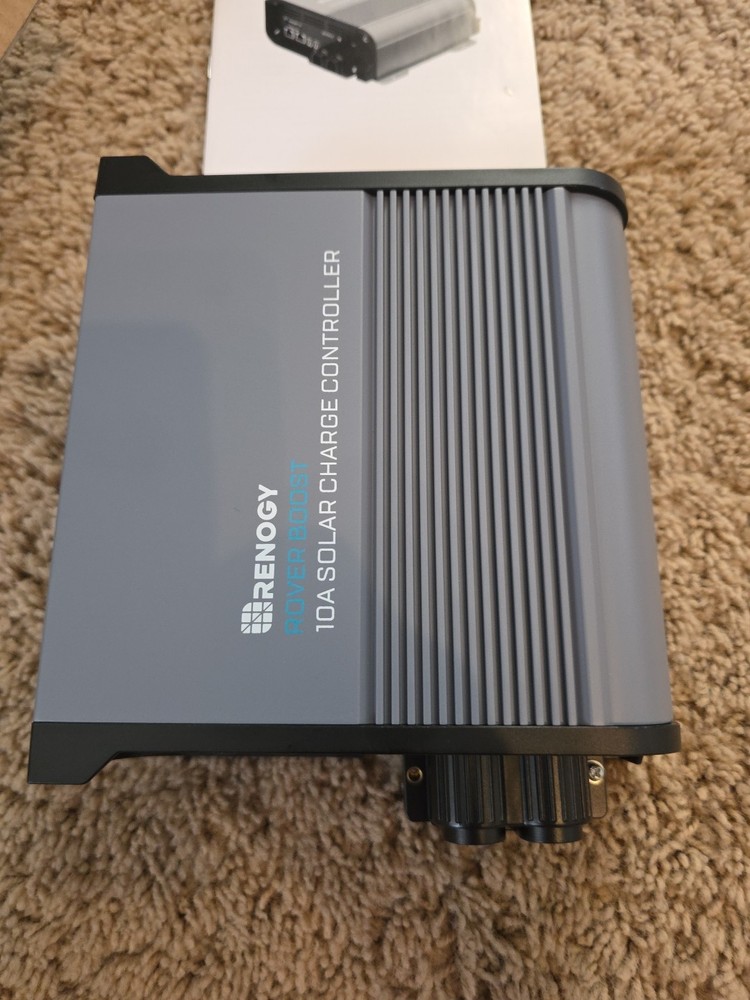

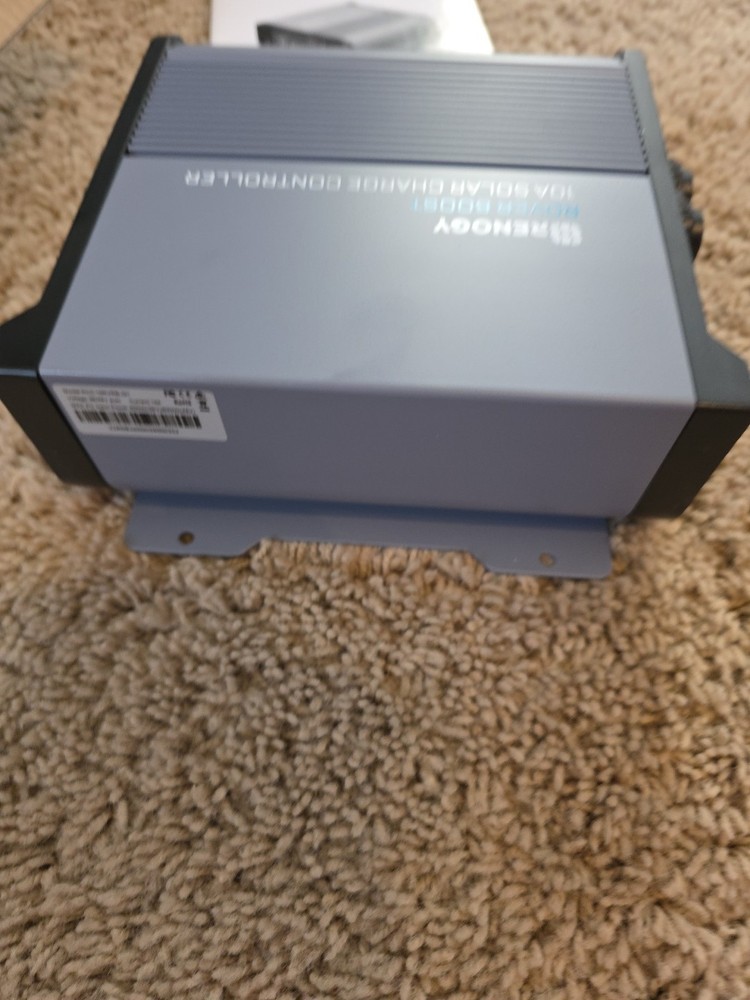

Check the listing for details. Renogy Boost 10A 36V/48V Auto DC Input MPPT Solar Charge Controller Regulator. Condition: Open box. Listed at 118.75 USD. The Renogy Boost 10A 36V/48V Auto DC Input MPPT Solar Charge Controller Regulator is a versatile and efficient device designed for managing your solar power system. With a current output of 10A and the ability to handle up to 500W/36V or 650W/48V of solar input power, this controller is suitable for various applications such as recreational vehicles, sheds, camping/hiking trips, electronics, home/garden use, and as a backup power source. Additionally, its MPPT technology ensures optimal power transfer from the solar panels to the battery, while the power limiting protection feature provides added safety. Designed with off-grid systems in mind, this solar charge controller is a reliable choice for your energy needs.
