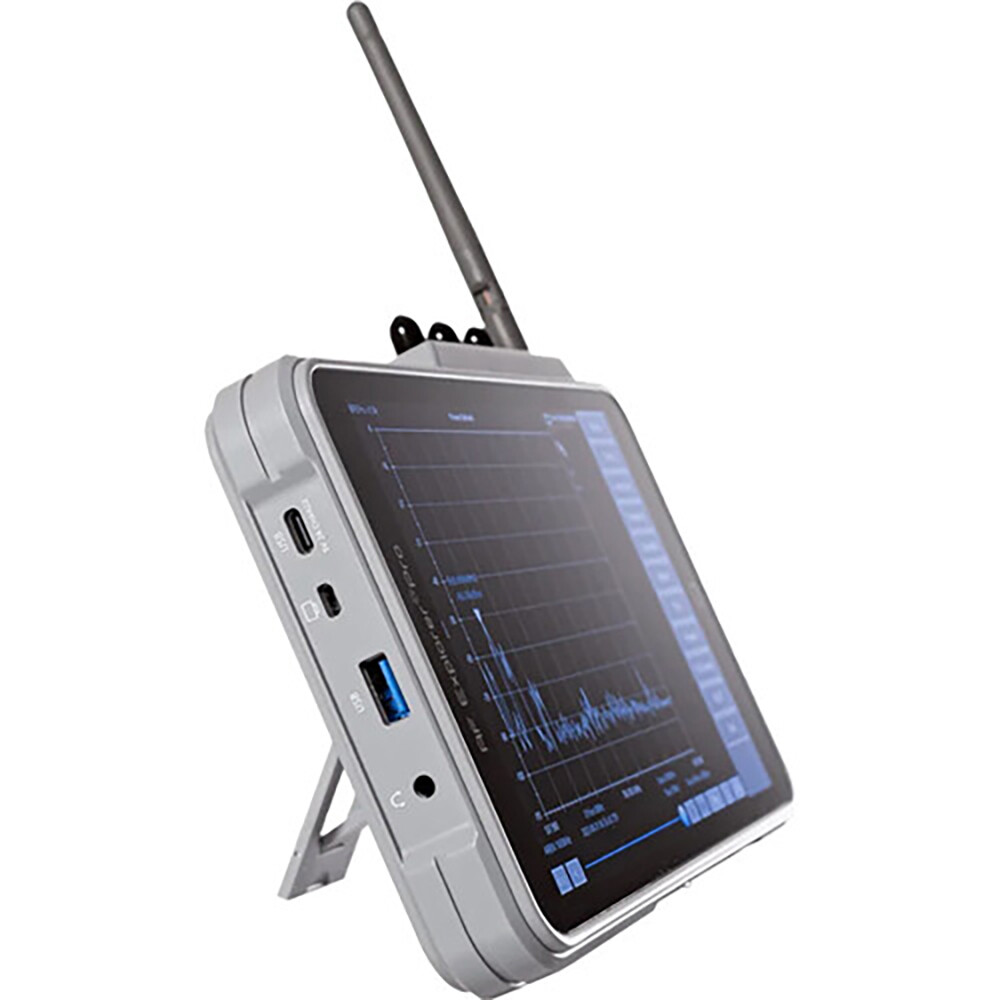

RF Venue RF Explorer Pro Portable RF Spectrum Analyzer

Name: RF Venue RF Explorer Pro Portable RF Spectrum Analyzer
SKU: 197425646520
Price: 1399.00 USD
Availability: InStock

$699.50

$1,399.00 -50%

Brand RF Venue

Condition New

Item ID 197425646520

Brand	RF Venue
MPN	RFEXPLORERPR
Model	RF-EXPLORER-PRO RF Venue
Panel Type	TFT LCD
Display Size	8
Native Resolution	1280 x 800
Touchscreen	Yes
Maximum Brightness	250 nits / cd/m2
USB I/O	1 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input/Output
Video I/O	1x Micro-HDMI Output
Audio I/O	1x 1/8 / 3.5 mm Output
Media/Memory Card Slot	Single Slot: microSD/microSDHC
Wireless	Wi-Fi *Built-In
Mobile App Compatible	Yes: Android & iOS App Name: VNC Viewer
Frequency Range	15 MHz to 6 GHz
Resolution	Bandwidth: 3 kHz to 2.5 MHz
Sweep Time	3 GHz / 280 ms, with RBW 2.5 MHz
Sweep Points	512 to 65,000
Dynamic Range	Direct: -110 dBm to +10 dBm Preamplifier LNA: -130 dBm to -30 dBm
Maximum Input Power	+33 dBm with Internal Attenuator Selected
Noise Level	Display Average Noise Level:-130 dBm, Typical LNA
Noise Floor	-160 dBm/Hz
CPU	Advanced Intel 64 Bits
DSP	High-Performance Dual DSP 32 Bits + 16 Bits
Save/Replay	100,000 Sweeps on Memory Unlimited Sweeps on File
File Format	File Export: Compatible CSV and Binary Formats
Battery Chemistry	Lithium-Ion
Battery Capacity	4500 mAh
UPC	658580646868

Check the listing for details. RF Venue RF Explorer Pro Portable RF Spectrum Analyzer. Condition: New. Listed at 1399.00 USD. Intuitive touchscreen and advanced viewing modes (Zero Span, Waterfall 2D/3D, Power Channel). Versatile Inputs & Outputs: SMA spectrum analyzer input for detailed system diagnostics. Wi-Fi Analyzer Mode: Built-in support for 2.4 & 5 GHz bands to monitor network congestion and avoid interference with digital mixing consoles or other devices.
