| Brand | Rode |
|---|---|
| MPN | RORCV |
| Model | RODE RCV |
| Type | Production Console |
| Available M/E Layers | 9 M/E |
| Effect Types | 2x Chroma Key |
| Downstream Keys | 2x Overlay |
| Audio Mixing | 20-Channel Mixing |
| Switching Type | Pushbutton |
| Processing Resolution | 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
| Color Processing | 8-Bit 4:4:4 RGB |
| Number of Video Input Sources | 6 |
| Video Inputs | 4x HDMI (1.4b) 2x USB-C (UVC) |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 25/2 |
| Audio Inputs | 2x Combo XLR-1/4 TRS 5x Proprietary (Shared with Video) |
| Embedded Audio Input | Wireless USB-C HDMI |
| Video Output Channels | 2 |
| Video Outputs | 2x HDMI |
| Output Video Format | HDMI (8-Bit 4:4:4 RGB, YUV) 1080p at 24/25/30/50/60 fps |
| Audio Outputs | 2x 1/4 TRS 2x 1/4 TRS Line |
| Inputs/Outputs | 3x USB-C(Stereo) |
| Other I/O | 1x RJ45 LAN |
| HDCP Support | No |
| IP Video | 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
| Transport Protocols | RTMP |
| Compatible Services | Facebook Live, Twitch, YouTube Live |
| Recording Media | 1x microSD (Unspecified Type) |
| Recording Modes | 1920 x 1080p (H.264/AVC) |
| Display Size | 2 |
| OS Compatibility | macOS 10.15 or Later Windows 10.1803 or Later Windows 11 |
| Processor | Not Specified by Manufacturer |
| Wi-Fi | Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | 5.3 |
| Power I/O | 1x USB-C Input |
| Power Consumption | Power Supply: 20 VDC at 3 A (60 W) |
| UPC | 810160684558 |

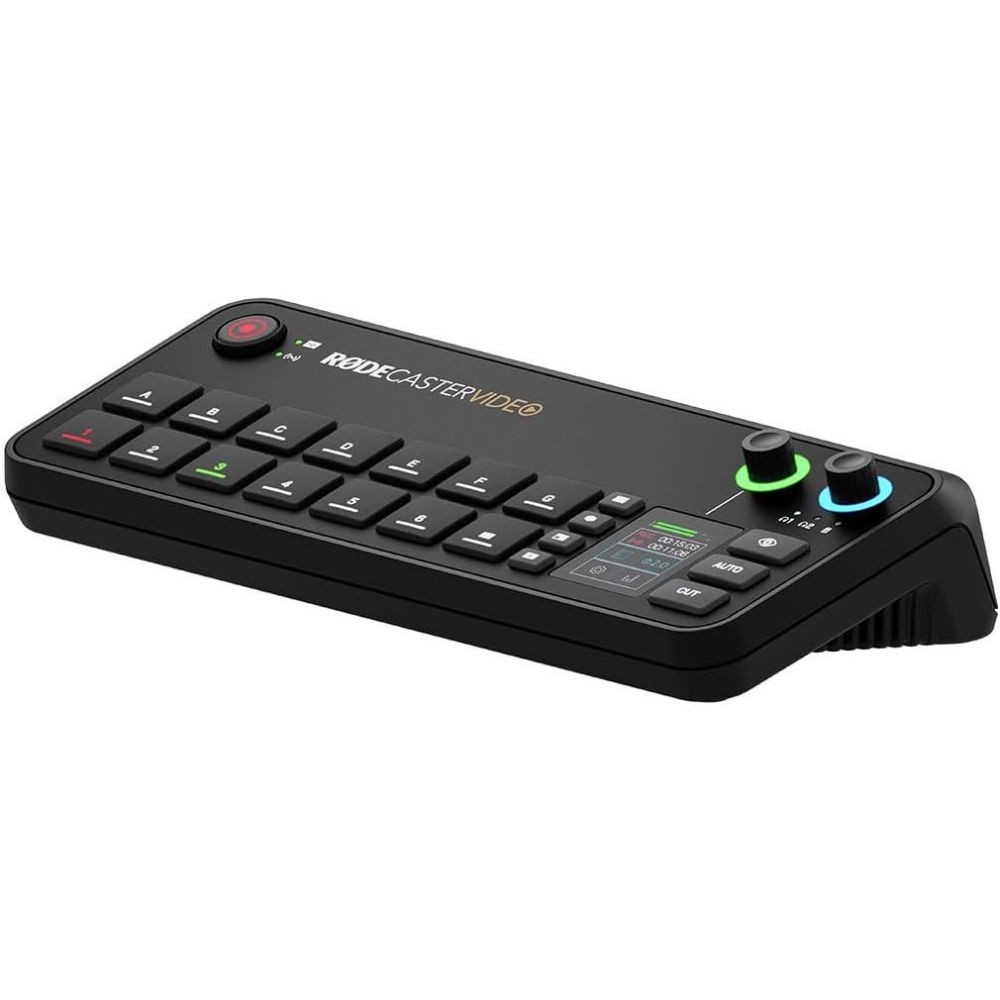

Check the listing for details. RODE Video Console w/ Pearstone Cable Black 6, SanDisk 128GB microSDXC Bundle. Condition: New. Listed at 1049.00 USD. A variety of connectivity options, including HDMI and USB-C ports, accommodate UVC video sources as well as both analog and digital audio sources. Up to 20 possible audio sources, or nine stereo channels, can be connected to the RODECaster Video using both wired and wireless connections.
