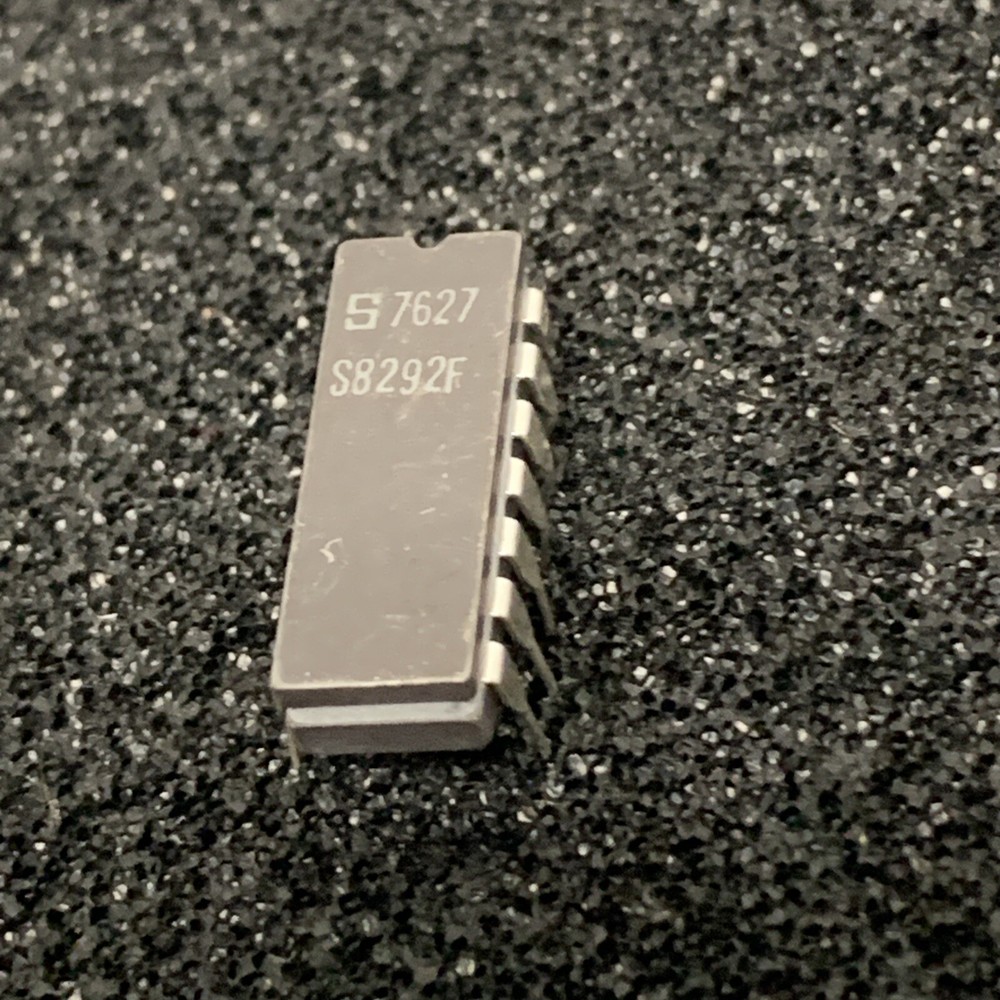

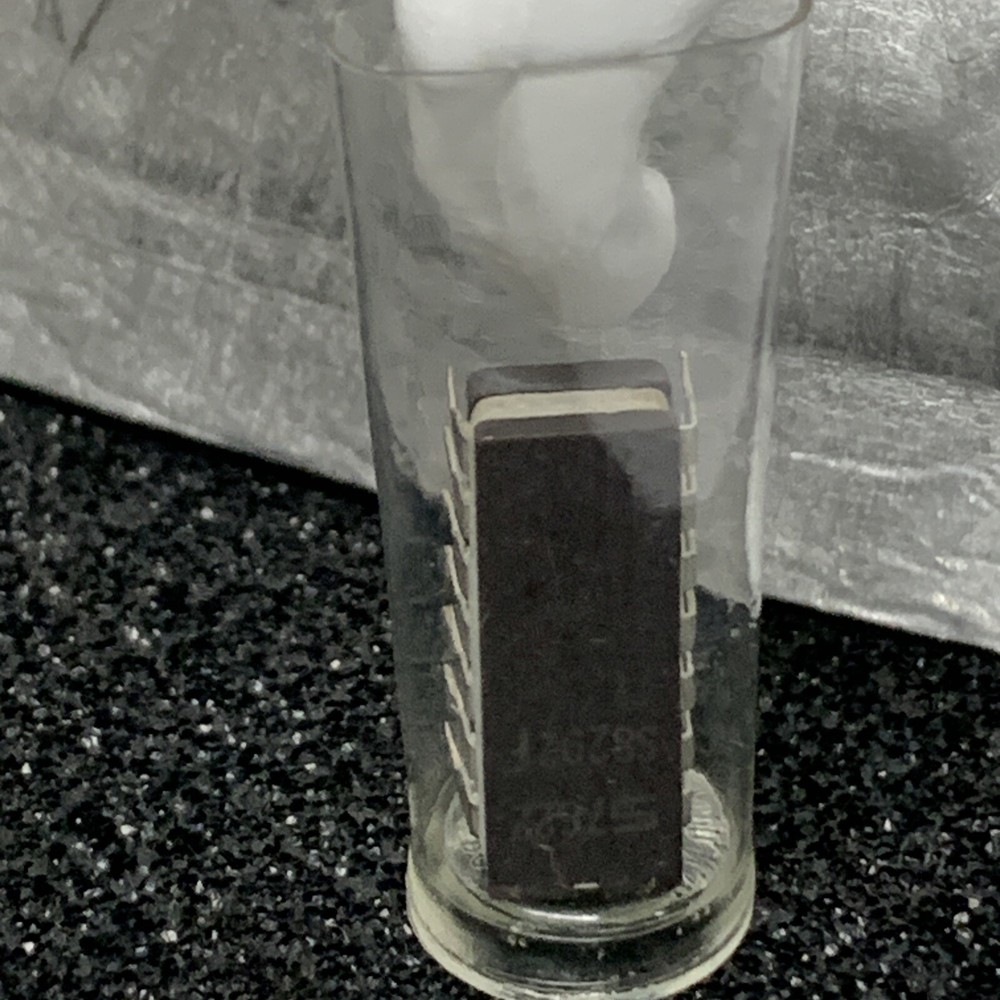

Check the listing for details. S8292F SIGNETICS PHILIPS DIGITAL MICROCIRCUIT. Condition: New. Listed at 10.95 USD. S8292F PHILIPS DIGITAL MICROCIRCUIT LOT 35000 D57 NEW OLD STOCK Technical Data | NSN 5962-01-037-6410 Characteristic Specifications OUTPUT LOGIC FORM TRANSISTOR-TRANSISTOR LOGIC INPUT CIRCUIT PATTERN 8 INPUT (NON-CORE DATA) BIT QUANTITY 10 VOLTAGE RATING AND TYPE PER CHARACTERISTIC 5.5 VOLTS MAXIMUM POWER SOURCE TIME RATING PER CHACTERISTIC 100.00 NANOSECONDS MAXIMUM PROPAGATION DELAY TIME, LOW TO HIGH LEVEL OUTPUT OPERATING TEMP RANGE -55.0 TO 125.0 DEG CELSIUS TERMINAL TYPE AND QUANTITY 14 PRINTED CIRCUIT TERMINAL SURFACE TREATMENT SOLDER INCLOSURE CONFIGURATION DUAL-IN-LINE INCLOSURE MATERIAL CERAMIC AND GLASS CASE OUTLINE SOURCE AND DESIGNATOR T0-116 JOINT ELECTRON DEVICE ENGINEERING COUNCIL BODY LENGTH 0.660 INCHES MINIMUM AND 0.785 INCHES MAXIMUM BODY HEIGHT 0.140 INCHES MINIMUM AND 0.180 INCHES MAXIMUM BODY WIDTH 0.220 INCHES MINIMUM AND 0.280 INCHES MAXIMUM STORAGE TEMP RANGE -65.0 TO 200.0 DEG CELSIUS FEATURES PROVIDED HERMETICALLY SEALED AND MONOLITHIC AND LOW POWER AND PRESETTABLE AND RESETTABLE AND W/ENABLE AND W/STROBE AND POSITIVE OUTPUTS TEST DATA DOCUMENT 19905-SA1975 DRAWING III UNPACKAGED UNIT WEIGHT 2.0 GRAMS III END ITEM IDENTIFICATION RECEIVER,RADIO TYPE R-1877/WLR-6(V)
