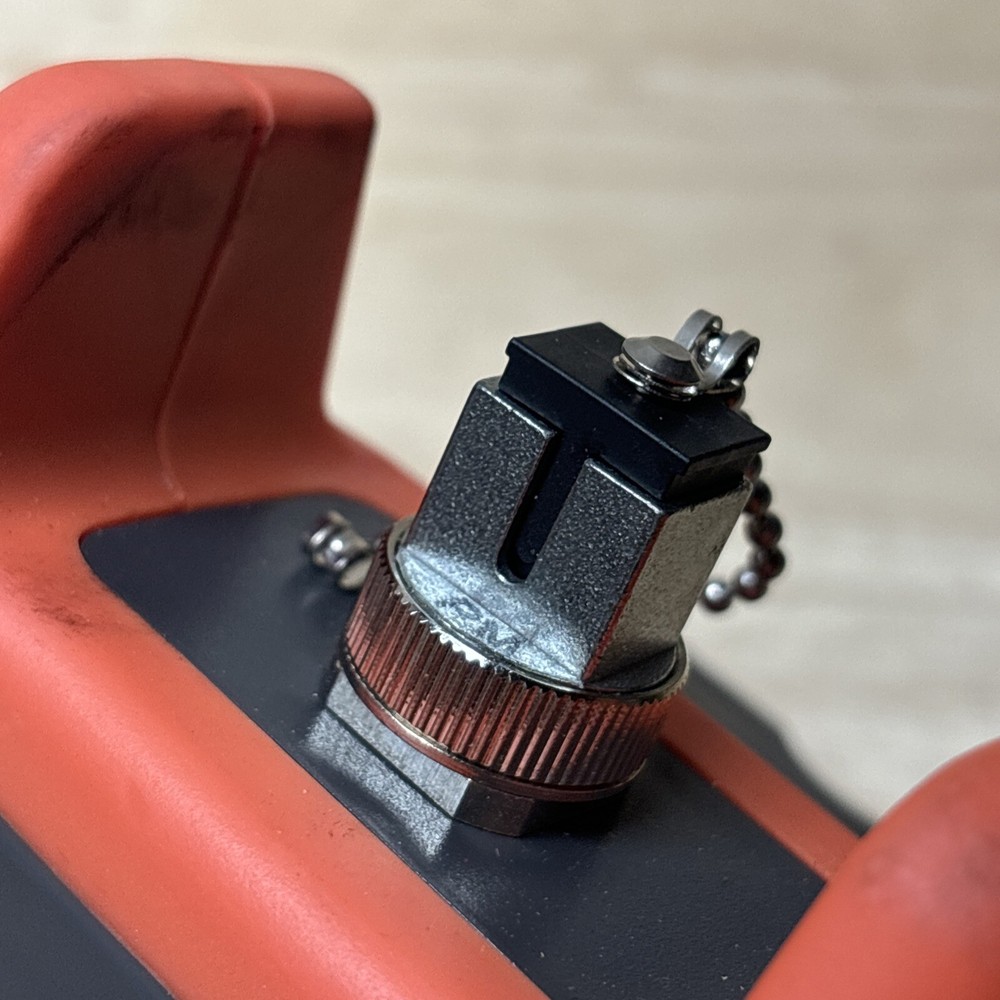

| Connector | FC (Interchangeable SC/ST) |
|---|---|
| Resolution (dB) | 0.01 |
| Storage Condition | -20°C ~ 70°C; (-4°F ~ 158°F) |
| Warranty | 1-Year Manufacturer's Warranty |
| Auto Wavelength Identification | Yes (With SLS-50) |
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550, 1625nm |
| Dimensions | 6.97 x 3.15 x 1.73 inches; (177 x 80 x 44mm) |
| Product | Optical Power Meter |
| MPN | OPM-50B |
| Fiber Type | Singlemode / Multimode |
| Power Range (dBm) | -50 ~ +27dBm |
| Weight | 0.69 lbs; (315g) |
| Display Unit | W / mW / µW / nW / pW / dBm / dB(REF) |
| Power Supply | Lithium Battery / AC Adapter |
| MOD Identification | 270, 1K, 2K Hz |
| Detector Type | InGaAs |
| Brand | Shineway Tech |
| Accuracy | ±5% ±1nW(±0.5dB@850nm) |
| Battery Life | Continuous operation: 70 hours |
| Humidity | 0 ~ 95% (Non-condensing) |
| Connectivity | USB |
| Power Saving | Auto-off after 5 minutes idle |
| Data Storage | 1000 records |
| Operating Condition | 0°C ~ 50°C; (32°F ~ 122°F) |

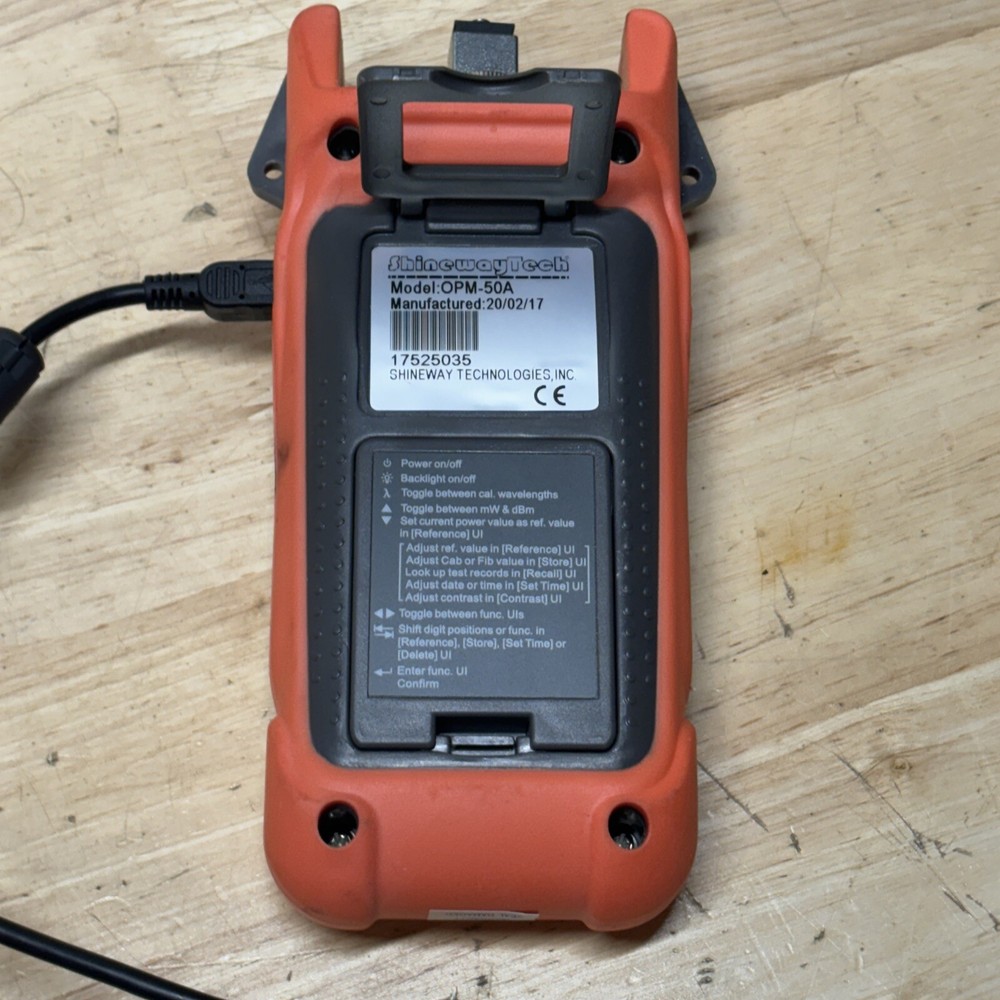

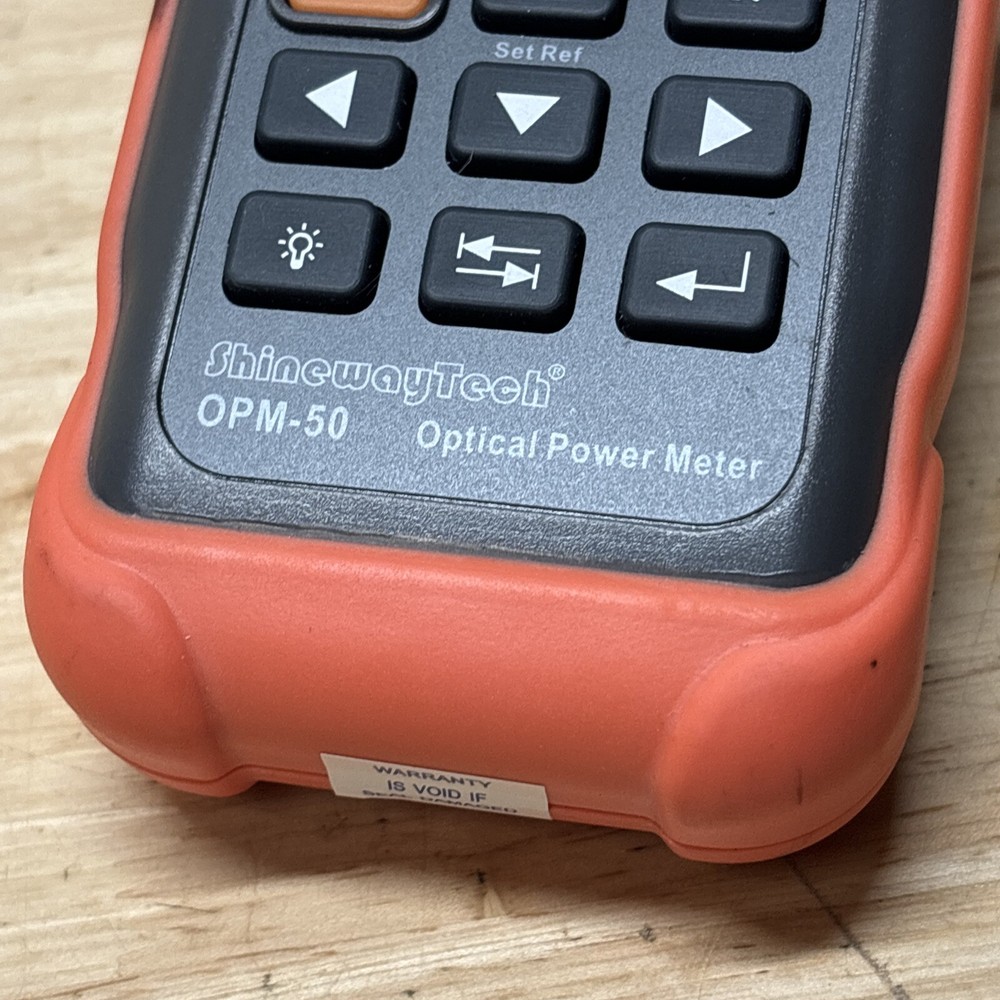

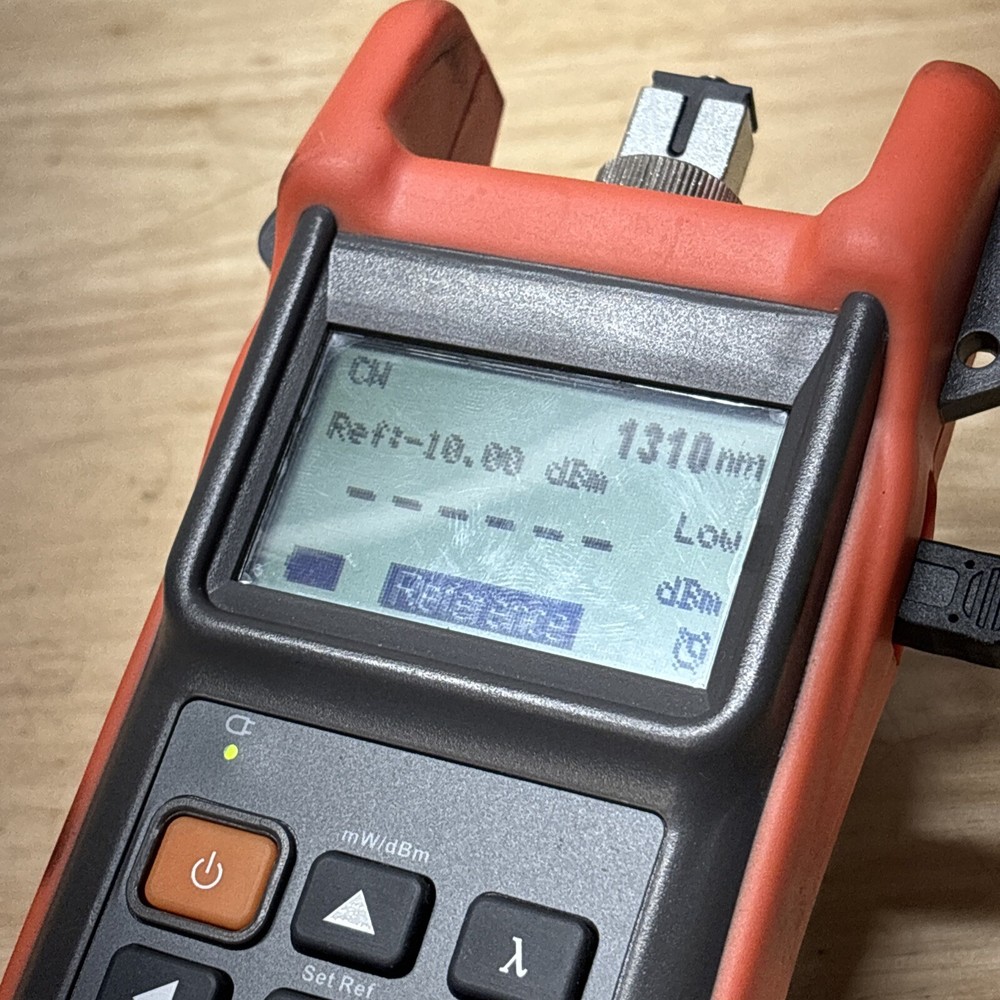

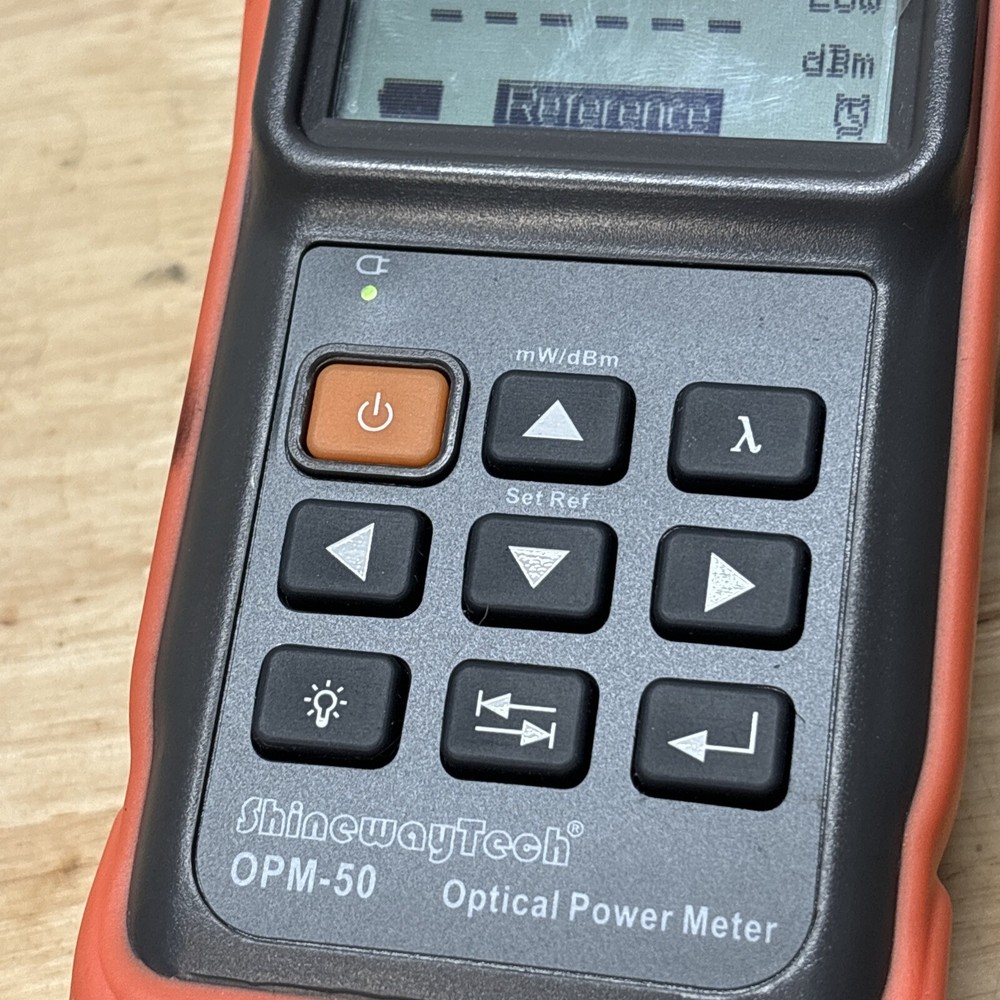

Check the listing for details. ShinewayTech OPM-50a Intelligent Optical Power Meter Read. Condition: Used. Listed at 150.00 USD. Needs a battery Works when plugged in
