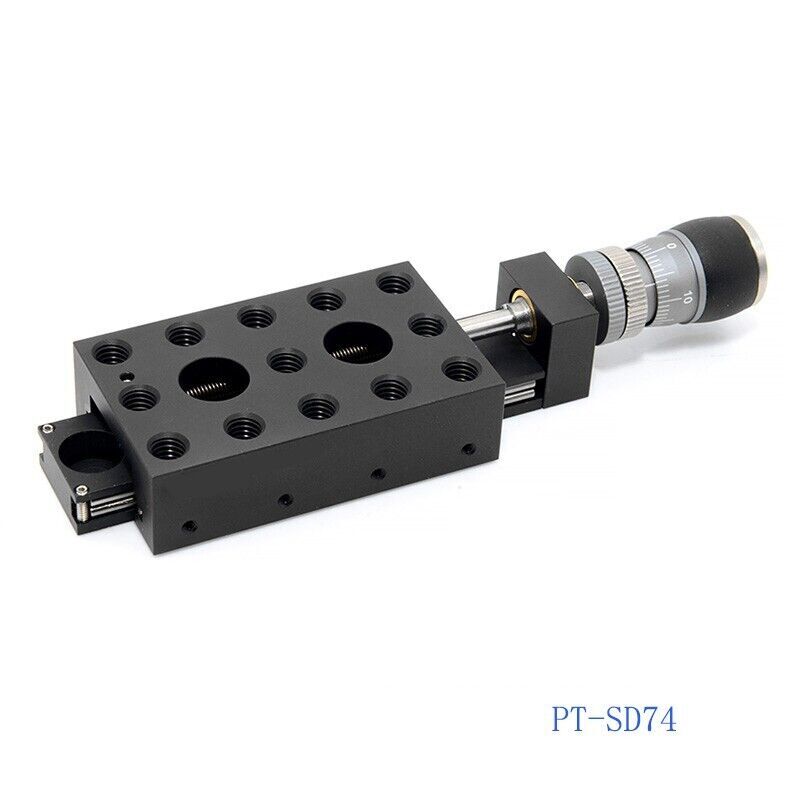

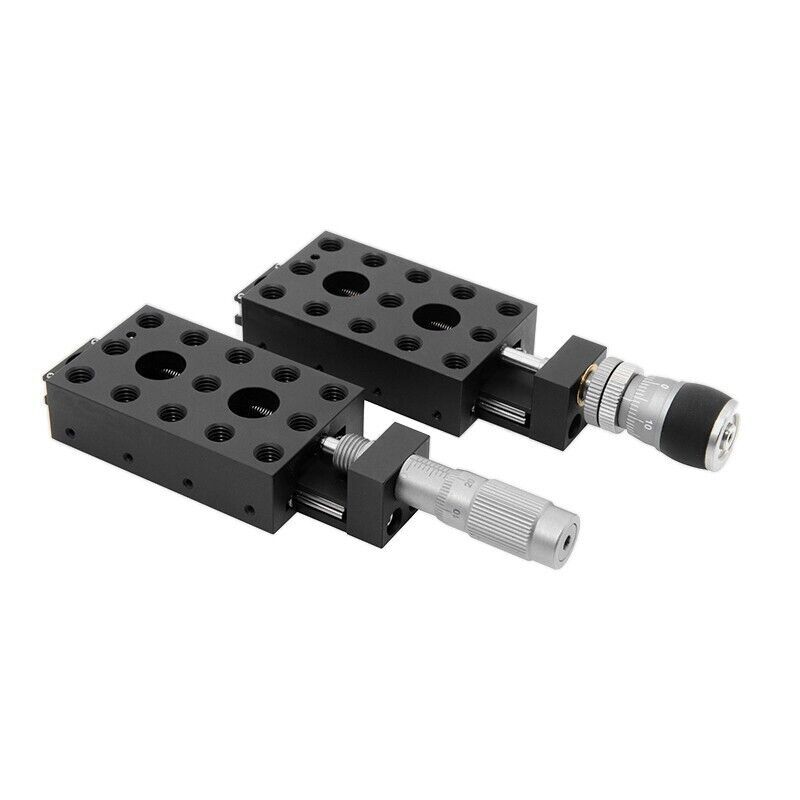

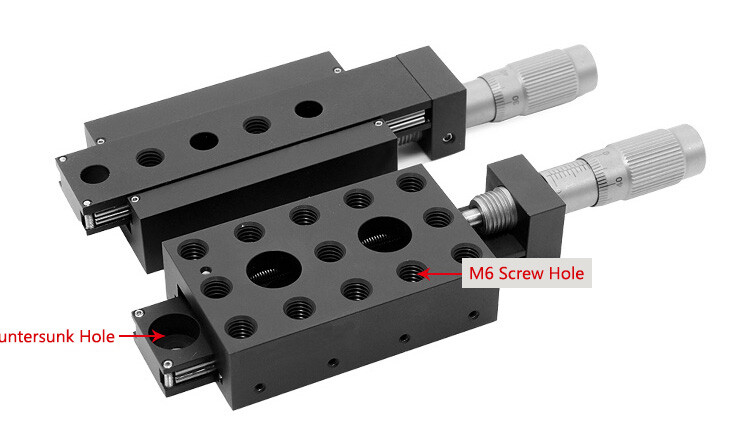

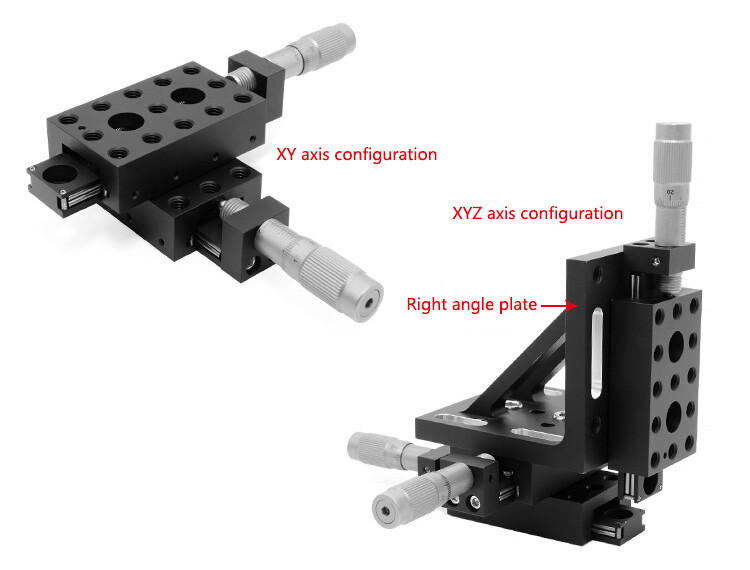

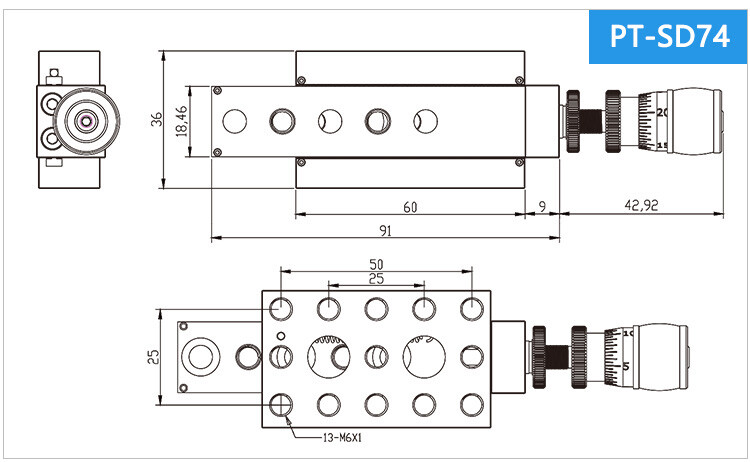

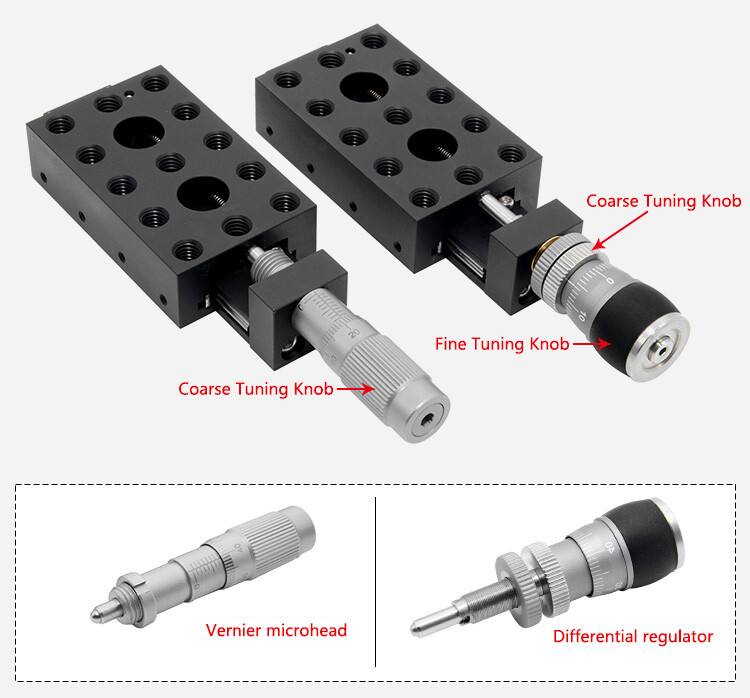

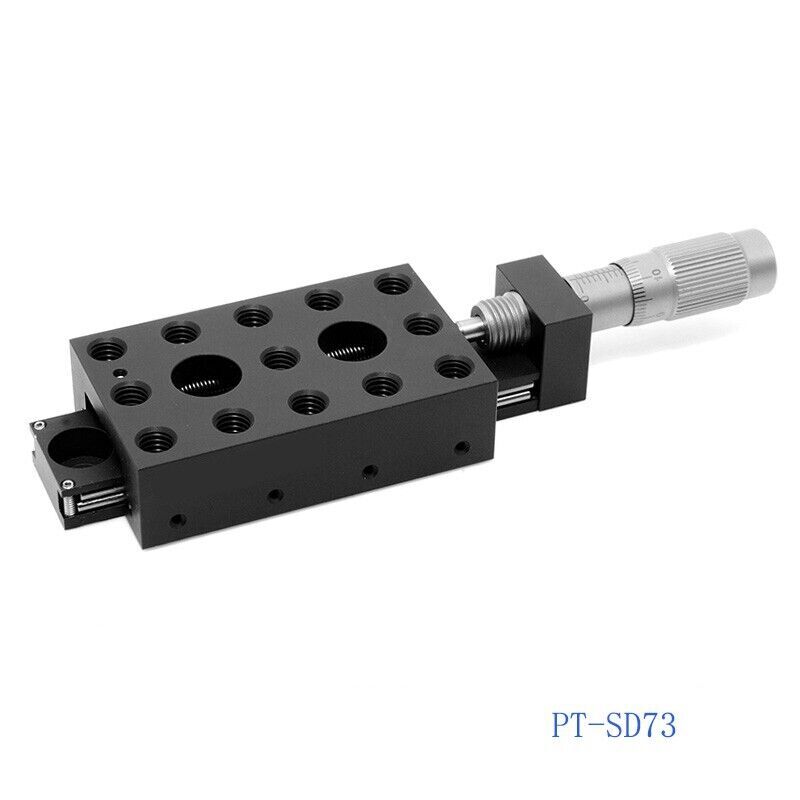

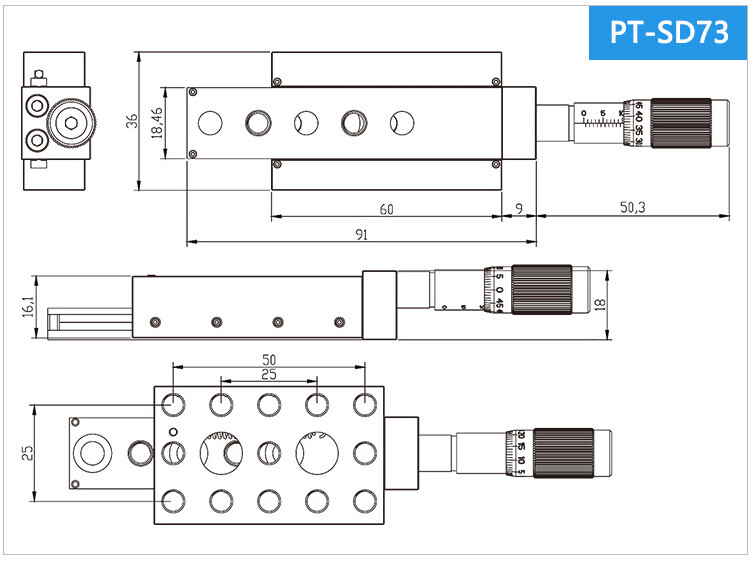

Check the listing for details. Single Axis Displacement Translation Platform High-Precision Manual Linear Stage. Condition: New. Listed at 111.66 USD. Product Description Single Axis Displacement Translation Platform High-Precision Manual Linear Stage 1. Modular design facilitates the combination of displacement tables into XY and XYZ configurations;2. Provide assembly options for measuring micro heads or differential regulators;3. The PT-SD73 displacement stage has a travel of 13mm and a division of 10μm;4. The travel of the PT-SD74 displacement stage is 8mm, with a coarse adjustment of 0.35mm per revolution and a fine adjustment of 2μm;5. 15 M6 threaded mounting holes.Product specification parametersSingle axis displacement platformModel NumberPT-SD73PT-SD74Travel Range13mm8mmDriving MethodVernier Micrometer HeadDifferential RegulatorIndexing Accuracy10μmRoughly adjust one circle by 0.35mm, Fine tuning 2 μ mPlatform Size90.8*36.1*18.1mm(Excluding regulator)Thread Type15 M6 screw holes, 2 Ø6mm countersunk head holesWeight127.2gMaterial7075 Aluminium AlloyThis single axis displacement stage features hardened steel linear bearings for precise movement and extended service life. The displacement table is pre equipped with a micrometer head or differential regulator as the driver, with 15 M6 screw holes on each displacement table and 2 06.0mm countersunk holes at the bottom. Users can install it onto the bread board or optical platform using M6 cap screws.The total travel of the uniaxial displacement stage is 25mm. The PT-SD73 is equipped with a microprobe driver, which has a travel of 13mm and a partition of 10μm. For applications requiring higher resolution, the PT-SD74 displacement table with differential regulator is also provided. The rough adjustment can be locked by hand screws on the regulator. The stroke of the rough adjustment can be adjusted by 8mm, the movement of the rough adjustment is 0.35mm per revolution, and the precision of differential fine adjustment is 2μm.In addition to being used as a single axis displacement table, the modular appearance design facilitates the assembly and assembly of two displacement tables to form an XY axis displacement table. If you want to build a displacement table with XYZ configuration, you need to use a right angle adapter. About Us Payment Shipping Returns Contact Us We are the trustworthy supplier. If you have any issues , please dont hesite to contact us via ebay message before opening any cases or returns or leave any negative feedback .Please believe in us and give us a chance to solve any issue of yours. We must offer our best service to you at any situation .We also believe both of us could solve any problem friendly .Thanks in advance. 1.We accept PayPal only.2.All major credit cards are accepted through secure payment processor PayPal.3.Payment must be received within 4 business days of auction closing.4.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. 1.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay.2.We arrange the shipment within our promised handling date.3.Delivery time depends on destination and other factors.4.International buyers please note: a.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are buyers responsibility. We will try our best to reduce the risk of the custom duties. b.Please check with your countrys customs office to determine what these additional costs will be prior to buying. Please dont hesitate to contact us by ebay message before you open any returns .We must help you out in the first time. If you have any problem or confusion , please feel free to contact us via ebay message, we must help you out in the first time . About Us We are the trustworthy supplier. If you have any issues , please dont hesite to contact us via ebay message before opening any cases or returns or leave any negative feedback .Please believe in us and give us a chance to solve any issue of yours. We must offer our best service to you at any situation .We also believe both of us could solve any problem friendly .Thanks in advance. Payment 1.We accept PayPal only.2.All major credit cards are accepted through secure payment processor PayPal.3.Payment must be received within 4 business days of auction closing.4.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. Shipping 1.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay.2.We arrange the shipment within our promised handling date.3.Delivery time depends on destination and other factors.4.International buyers please note: a.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are buyers responsibility. We will try our best to reduce the risk of the custom duties. b.Please check with your countrys customs office to determine what these additional costs will be prior to buying. Returns Please dont hesitate to contact us by ebay message before you open any returns .We must help you out in the first time. Contact Us If you have any problem or confusion , please feel free to contact us via ebay message, we must help you out in the first time . powered by
