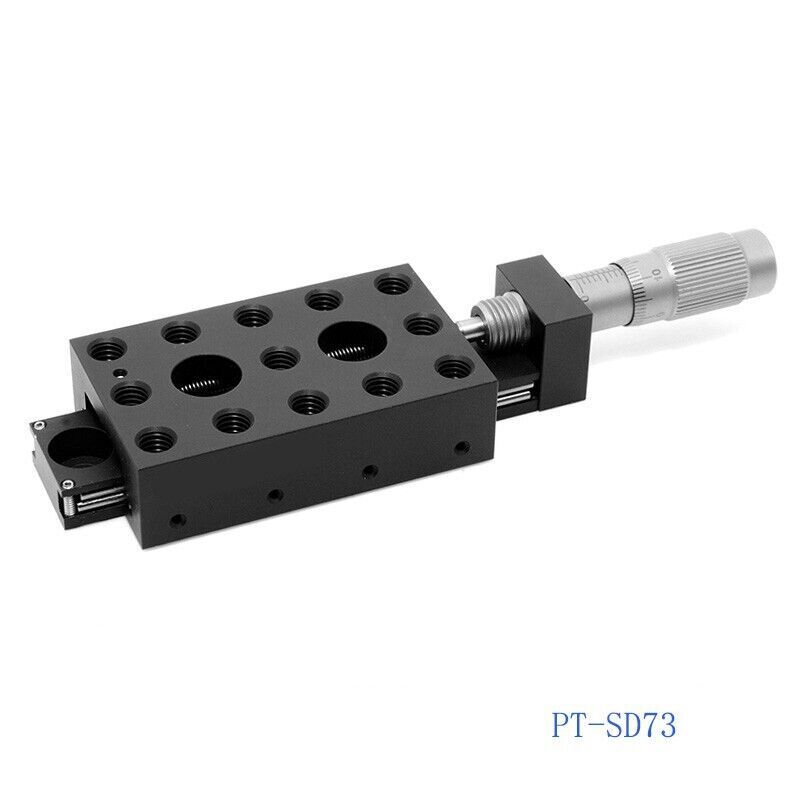

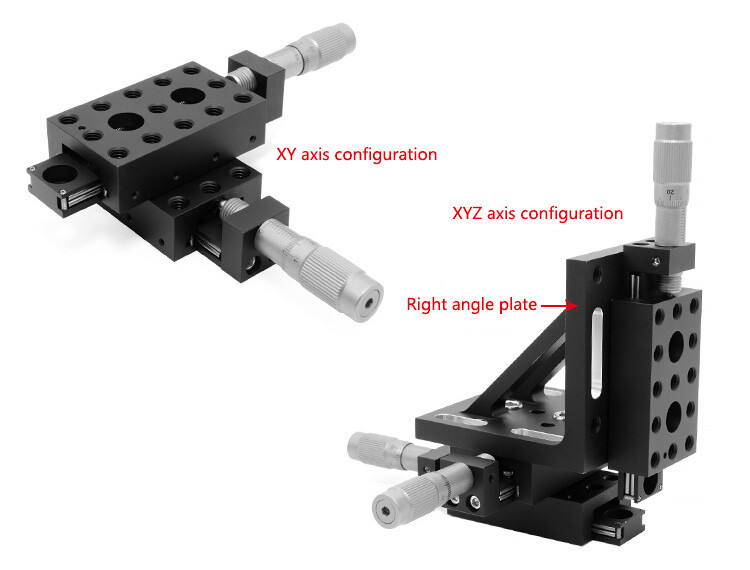

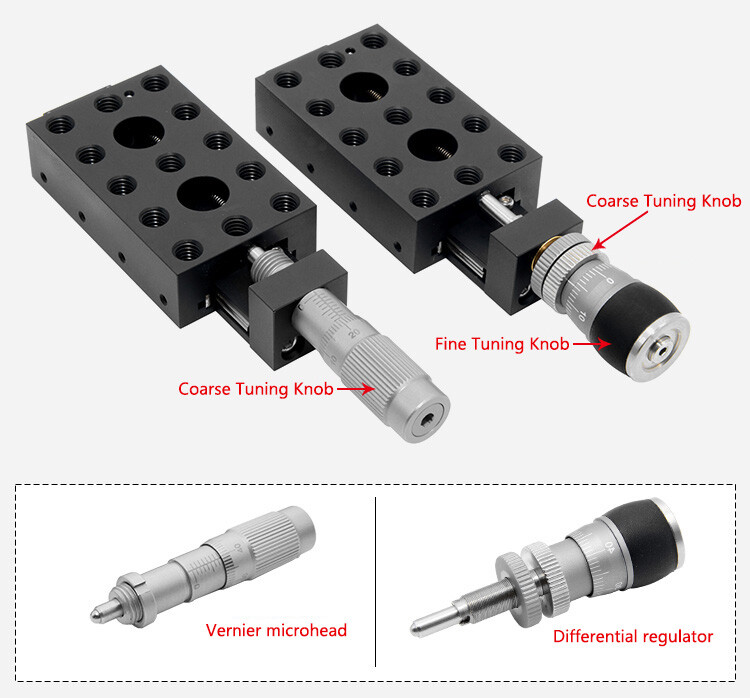

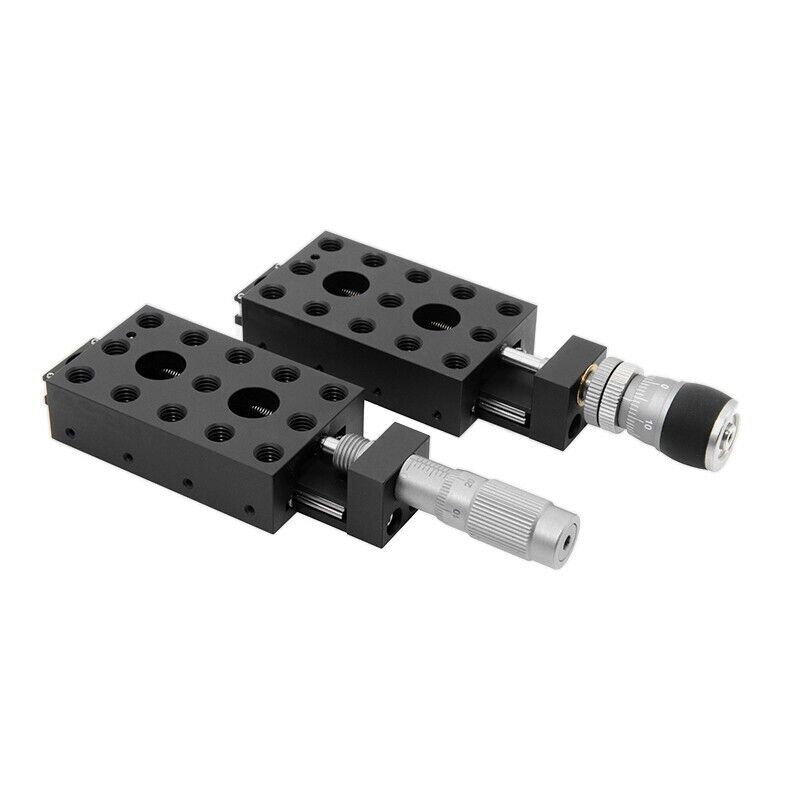

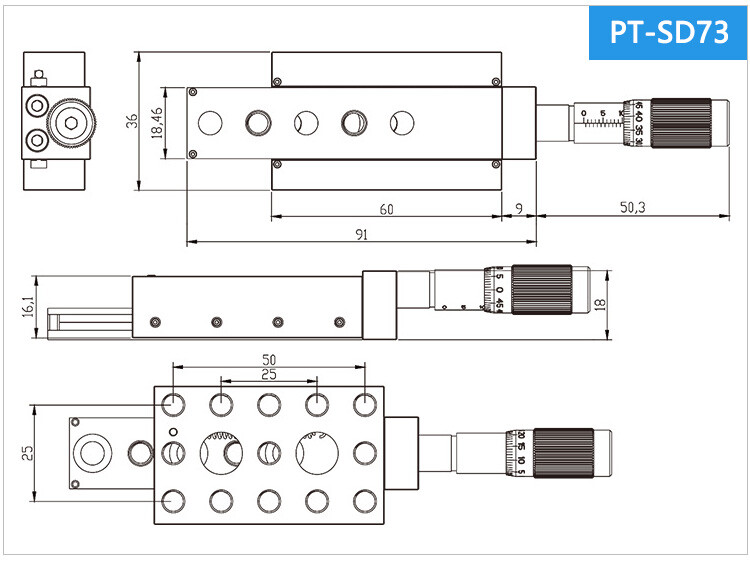

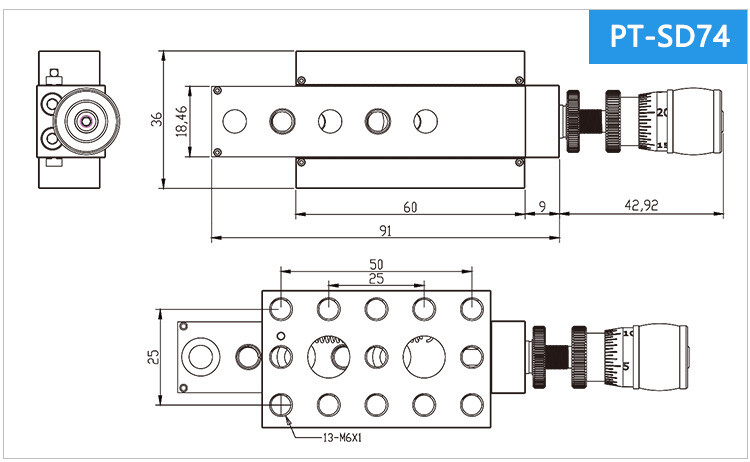

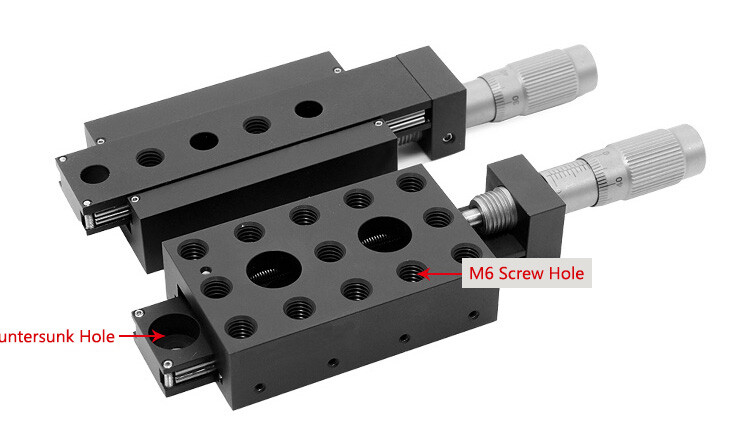

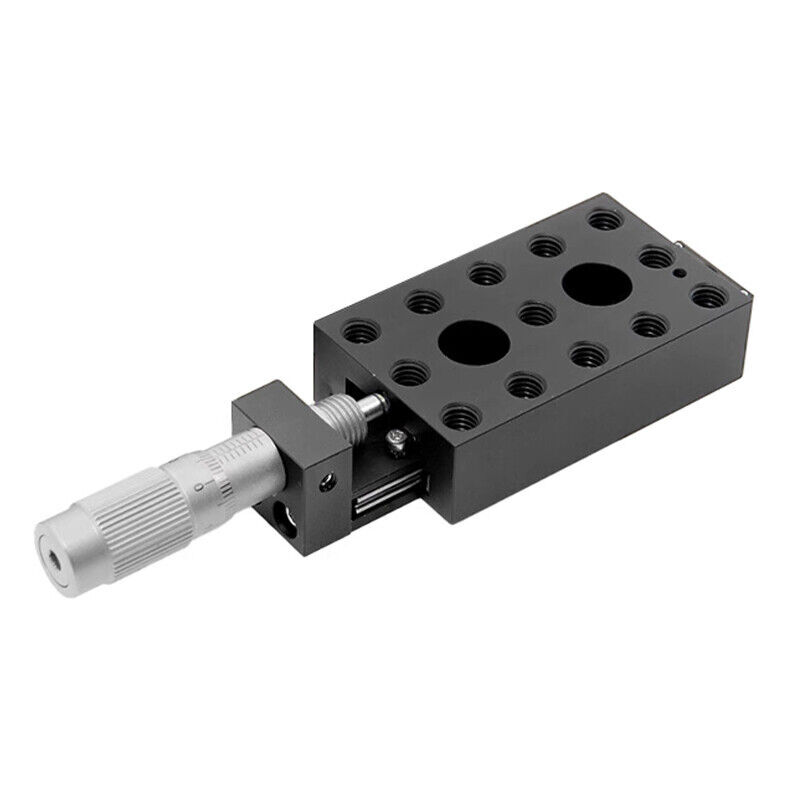

Check the listing for details. Single Axis High-Precision Manual Linear Stage Displacement Translation Platform. Condition: New. Listed at 114.58 USD. Product Description Single Axis High-Precision Manual Linear Stage Displacement Translation Platform1. Modular design facilitates the combination of displacement tables into XY and XYZ configurations;2. Provide assembly options for measuring micro heads or differential regulators;3. The PT-SD73 displacement stage has a travel of 13mm and a division of 10μm;4. The travel of the PT-SD74 displacement stage is 8mm, with a coarse adjustment of 0.35mm per revolution and a fine adjustment of 2μm;5. 15 M6 threaded mounting holes.Product specification parametersSingle axis displacement platformModel NumberPT-SD73PT-SD74Travel Range13mm8mmDriving MethodVernier Micrometer HeadDifferential RegulatorIndexing Accuracy10μmRoughly adjust one circle by 0.35mm, Fine tuning 2 μ mPlatform Size90.8*36.1*18.1mm(Excluding regulator)Thread Type15 M6 screw holes, 2 Ø6mm countersunk head holesWeight127.2gMaterial7075 Aluminium AlloyThis single axis displacement stage features hardened steel linear bearings for precise movement and extended service life. The displacement table is pre equipped with a micrometer head or differential regulator as the driver, with 15 M6 screw holes on each displacement table and 2 06.0mm countersunk holes at the bottom. Users can install it onto the bread board or optical platform using M6 cap screws.The total travel of the uniaxial displacement stage is 25mm. The PT-SD73 is equipped with a microprobe driver, which has a travel of 13mm and a partition of 10μm. For applications requiring higher resolution, the PT-SD74 displacement table with differential regulator is also provided. The rough adjustment can be locked by hand screws on the regulator. The stroke of the rough adjustment can be adjusted by 8mm, the movement of the rough adjustment is 0.35mm per revolution, and the precision of differential fine adjustment is 2μm.In addition to being used as a single axis displacement table, the modular appearance design facilitates the assembly and assembly of two displacement tables to form an XY axis displacement table. If you want to build a displacement table with XYZ configuration, you need to use a right angle adapter. About Us We are aiming to bring the best products as well as service to all of the customers . If you have any needs, please dont hesitate to contact us at any time . If you are unsatisfied with the items received ,please contact us (via eBay Message) first before you operate the return or leave feedback .Many thanks. Payment We accept PayPal only.All PayPal payments must be confirmed (shipping and billing addresses must match).Payment must be received within 7 business days of auction closing.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is the same and correct before you pay.thanks. Shipping 1,We ship items to your PayPal confirmed address only. Please make sure your address in PayPal is matched with your shipping address on ebay before you pay.2,We are unable to take any responsibility for wrong address, any custom delay or tax. Because transit time is highly depended and provided by Postal Service.3.Items will be shipped within the handling time as we promised.4.The ETA Delivery time depends on destination and other factors.(public holidays., natural disasters, customs issue and other unexpected impact, etc)Import duties, taxes, and charges are not included in the item price and shipping cost. These charges are the buyers responsibility.Please check with your countrys customs office to determine what these additional costs will be before prior to bidding or buying.If you have any request or question about our handling and shipping, please feel free to contact us via eBay message.In a word, we will do our best to serve you. Returns If you are unsatisfied with the items received ,please contact us (via eBay Message) first before you operate the return or leave feedback .We must go to the extreme length to solve all of the issues in the first time.If you have not received your products within 30 days from payment, please contact us. Wewill track the shipment and get back to you asap. Our goal iscustomer satisfaction! powered by
