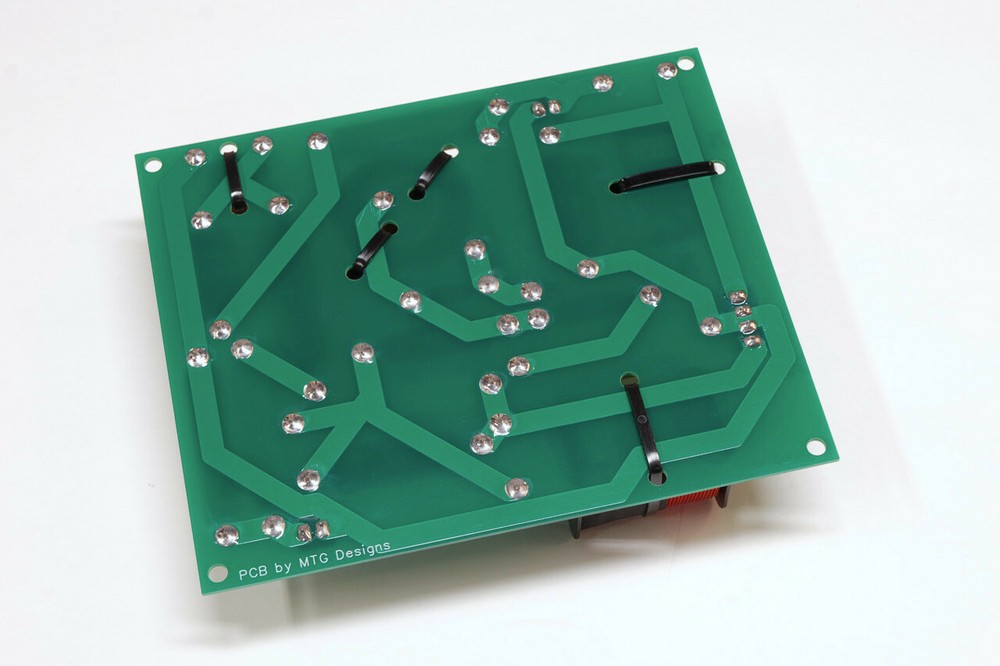

Check the listing for details. Single Crossover PCB for the Sunflower Redux DIY speaker design - PCB Kit. Condition: New. Listed at 12.50 USD. Custom printed circuit boards designed for the crossover of the Sunflower Redux DIY speaker design by Paul Carmody. Take the guesswork out of crossover assembly, these boards make the process quick and straightforward. The boards measure 6.9" x 5.7" and feature large solder pads and copper traces for great electrical connectivity. Note photos of fully assembled crossovers are for reference only. ***Listing has been changed from a pair of PCBs to a single PCB in order to allow purchase of singles or odd numbers*** Includes: 1x Crossover PCBs for the Sunflower Redux DIY speaker design. 4x Terminal blocks which accept up to 12 gauge wire. 4x Snap in PCB standoffs. 4x Mounting screws (screw finish may vary). Requires: Crossover components for the Sunflower speaker design. Compatible components tested for fit on this PCB: C1 - 4.7uF - Dayton Audio DMPC-4.7 C2 - 12uF - Dayton Audio DMPC-12 C3 - 0.10uF - Dayton Audio DMPC-0.10 C4 - 33uF - Parts Express 33uF Non Polarized Electrolytic C5 - 68uF - Parts Express 68uF Non Polarized Electrolytic C6 - 12uF - Parts Express 12uF Non Polarized Electrolytic C7 - 100uF - Parts Express 100uF Non Polarized Electrolytic L1 - 0.25mH - Jantzen Audio 0.25mH 20 AWG Air Core L2 - 1.5mH - Jantzen Audio 1.5mH 18 AWG Air Core L3 - 4.0mH - Dayton Audio 4.0mH 18 AWG I-Core -or- Erse Audio 4.0mH 18 AWG I-Core L4 - 8.0mH - Dayton Audio 8.0mH 18 AWG I-Core -or- Erse Audio 8.0mH 18 AWG I-Core R1 - 1 Ohm - Dayton Audio DNR-5.1 R2 - 2 Ohm - Dayton Audio DNR-2.4 R3 - 5.1 Ohm - Dayton Audio DNR-5.1 R4 - 4.7 Ohm - Dayton Audio DNR-4.7 R5 - 30 Ohm - Dayton Audio DNR-30 R6 - 1.5 Ohm - Dayton Audio DNR-1.5 Assembly: Glue components to the correct positions on the board (hot melt glue works great). Secure inductors with non metallic cable ties. Solder components leads to the pads on the bottom of the board. Attach wires from input and drivers and mount crossover board.
