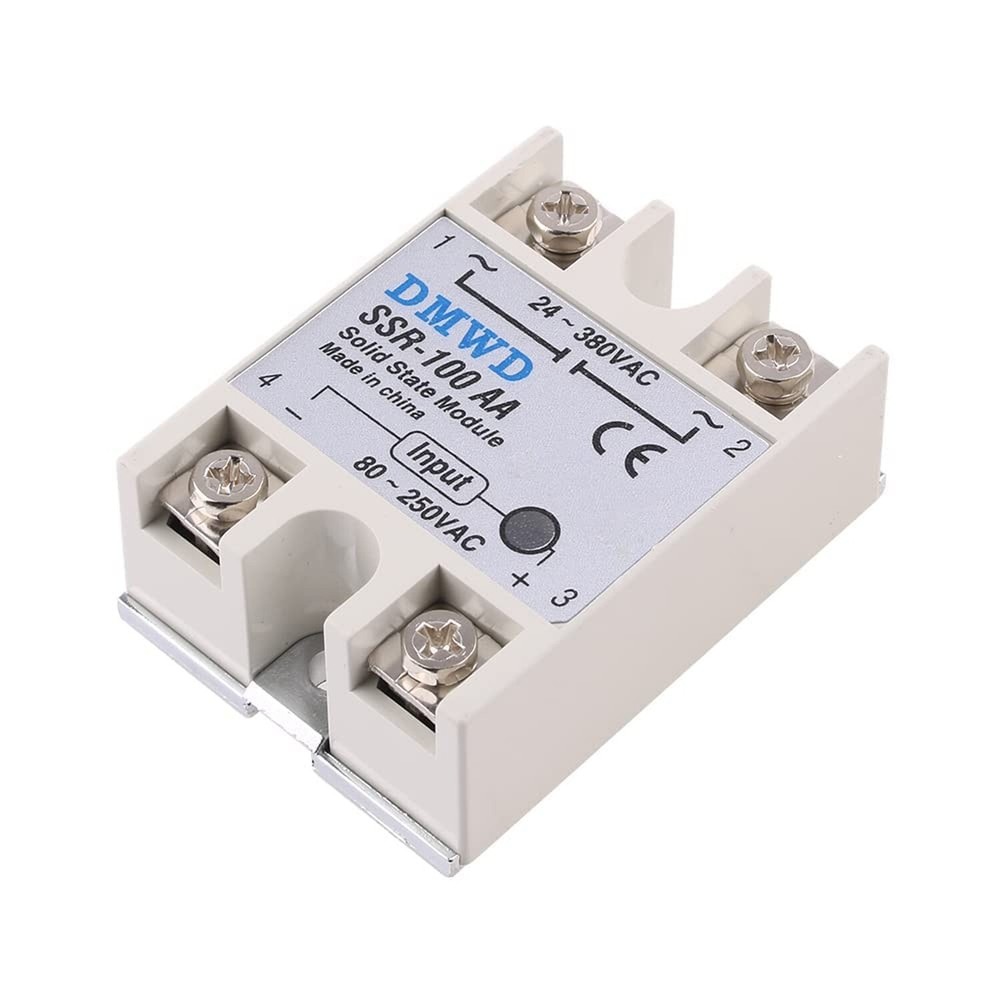

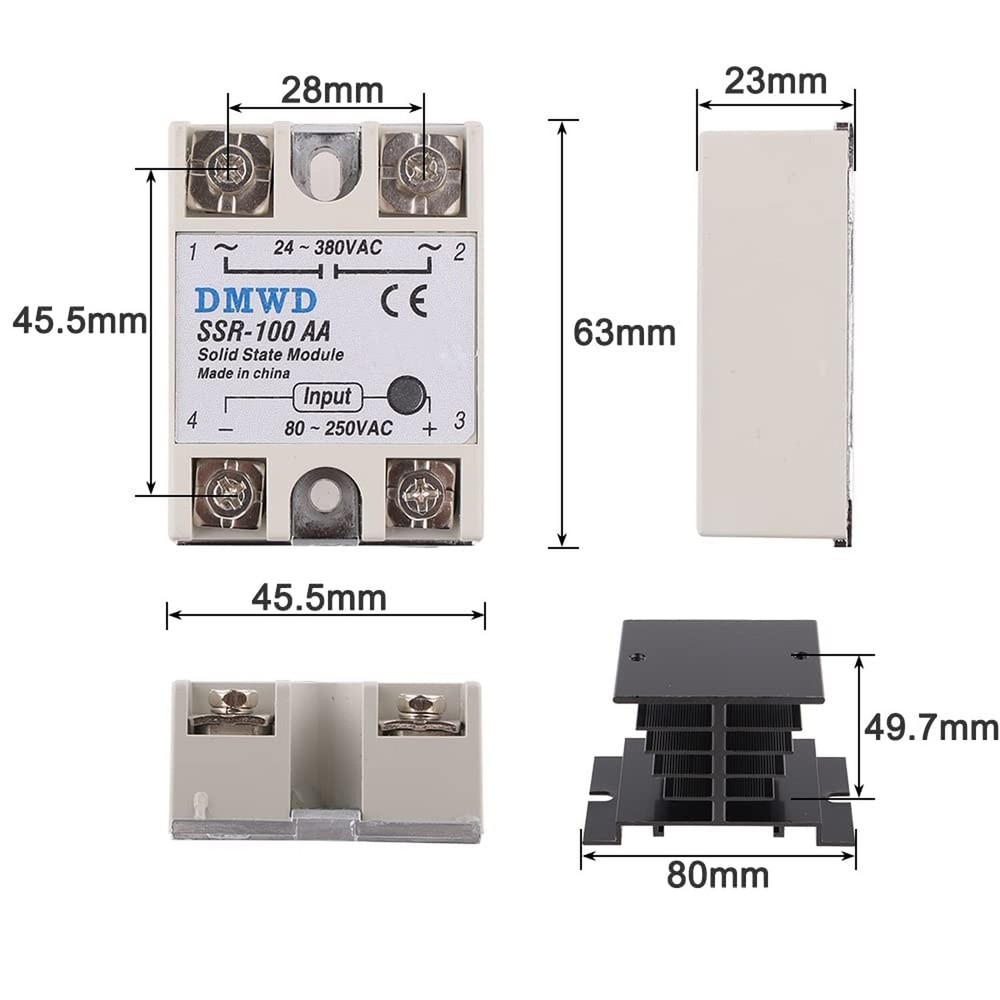

Check the listing for details. SSR-100AA Solid State Relay AC to AC (Input 80-250V AC Output 24-380V AC) wit.... Condition: New. Listed at 22.67 USD. SSR-100AA Solid State Relay AC to AC (Input 80-250V AC Output 24-380V AC) with Heat Sink, 100A ✓ Free 60 Day Returns ✓ Free Express Shipping Description: DMWD Low cost single phase solid state relay SSR-100AAInput voltage 80-250V AC Load voltage 24-380V ACLoad current 100Amp 100A 80-250V AC to AC solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on. Built in RC absorptionPhotoelectric isolationSCR outputLED indicator for operation statusPanel mountZero-crossing switch typeUL Approved, CE Compliant to EN60950-1 Note: When the load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them. When the load current is 40A or more, a fan cooling radiator or water cooling radiator must be equipped. Heat sink is included. Package Content:1 x Solid State Relay1 x All Aluminium Heat Sink Size/Weight:SSR(60x45x23mm/100g)Heat Sink(785050mm/80g) Warranty:Free new replacement in 5 years, Have faith in quality Features: Model: SSR-100AA, single phase Solid State Relay 100A AC to AC control, CE Compliant to EN60950-1Input voltage 80-250V AC, Load voltage 24-380V AC, Max load current 100 AmpRugged epoxy encapsulation construction, high isolation over than 50M(500VDC), high dielectric over than 2.5KV, output snubber circuit protectionNo EMI/EFI & Low surge by Zero Cross Trigger method, specially suited to control sensitive, capacitive and Non-saturated inductive loadsSSR switches use semiconductor component acts as a switch for the relay, no moving parts inside, no mechanical wear, no action noise, no mechanical failure, and high reliability Product Details: Contact Type: Normally OpenCurrent Rating: 10 AmpsMounting Type: Panel MountBrand: DMWDOperation Mode: AutomaticPackage Dimensions ‏ : ‎ 3.78 x 3.35 x 2.13 inches; 7.83 ouncesItem model number ‏ : ‎ SSR-100AA +SanRePianDate First Available ‏ : ‎ May 3, 2022Manufacturer ‏ : ‎ DMWDBest Sellers Rank: #317,582 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #284 in Solid State Relays#284 in Solid State RelaysCustomer Reviews: 2.2 2.2 out of 5 stars 3 ratings
