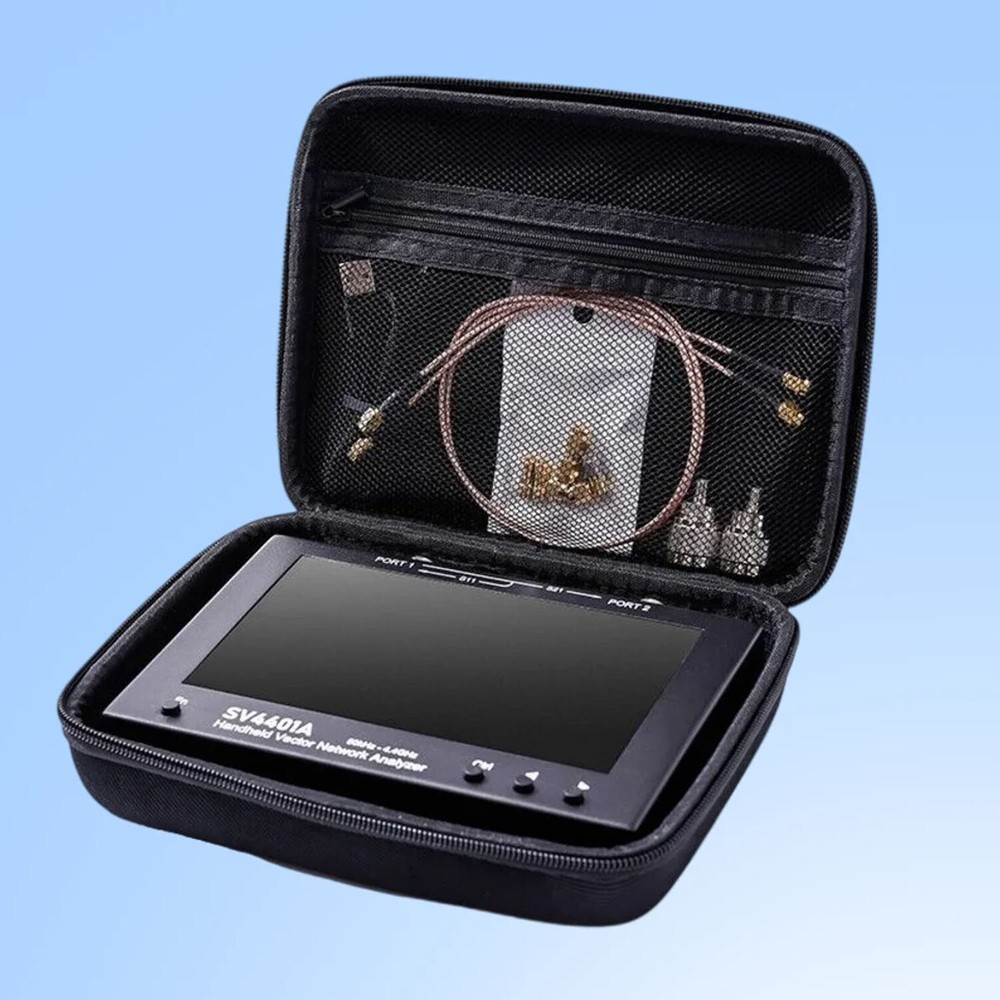

Check the listing for details. SV4401A 50KHz-4.4GHz VNA Vector Network Analyzer 7inch Touch Lcd 100dB Dynamic. Condition: New. Listed at 329.00 USD. SV4401A VNA 50KHz-4.4GHz Vector Network Analyzer 100dB Dynamic 7inch Touch Lcd Firmware upgrade Product Performance: 1. Measuring frequency range: 50KHz-4400MHz; 2. RF output power: -12dbm to -42dbm adjustable (step 1db) (error in the full frequency band: plus or minus 1db); 3. Frequency accuracy: ± 1ppm 140MHz 4.S21 Dynamic Range: 90dB (below 2GHz), 75dB (4.4GHz) (turn on 25x averaging and 100Hz IF), if you turn on the IF 100Hz and 25x averaging, you can achieve 100db dynamics below 1.3GHz. 5.S11 dynamic range: better than 50db 6.2 Port Return Loss: 30dB typ (1.5GHz), 20dB min (4.4GHz) 7.USB Interface: USB Type-C Communication Mode: CDC (Serial) 8. Number of calibration points: 101-1001 points 9. Number of scanning points: 101 points-1001 points 10.Display trace: 7 traces 11. Mark: 8 mark points (mark mark bar can be moved anywhere on the screen) 12.Setting save: 12 (shortcut menu) (save the next time you turn on the use can be directly called, without the need to calibrate from the new, the next time you turn on the power to automatically call the last time before the power off of the saved parameters, and increase the automatic storage of the starting and stopping frequency of the function, convenient for the next time to call) Built-in file saving, in principle, you can save unlimited number of storage units, according to the capacity of the TF card. 13. Scanning speed: about 400 points/second 14. Can measure S-parameters, voltage VSWR SWR Smith's circle diagram Phase diagram, group time delay, TDR function ......; 15. The use of 7-inch high-brightness IPS capacitive touch screen, IPS TFT (1024x600) viewing angle close to 180 °, long-time use does not hurt the eyes; (outdoor can see the curve, at present, such hand-held vector network in the screen brightness of a higher one) 16. The use of metal chassis, effective shielding of electromagnetic interference, making the S21 in the 2GHz is better than 100dB of dynamic range 17. Compact design, body size 195mm * 150mm * 35mm, compact and portable; Packaging size: 300 * 200 * 90mm 18. RF interface for L16-F (N female), easy to connect all kinds of measured parts; 19. Standard use of two 18650 batteries with a total capacity of 6600mAh, battery life of up to 4 hours; (You can modify the installation of two 21700 battery seat, the capacity of up to 10,000mAH, battery life of up to 6 hours or so. 20. Full touch screen design, while supporting 4 front panel buttons, flexible and convenient operation; 21. English menu; 22. Support screen brightness adjustment; 23. Upgrade the firmware by way of virtual U disk, no programmer is needed, only a USB cable is needed to upgrade the firmware; 22. Expand a USB power output interface, 5V/1A output (can be used as a charging treasure); 24. Use high-current 2A charging IC, shorter charging time; 25. Support the upper computer, you can use the computer as the display operation interface; 26. Net weight: 1160 grams. 27. Total weight of the outer package: 2000 grams. 28. Support screen shot, support screenshot uploading to computer. Can test ①VSWR and impedance of antenna; ②Insertion loss, isolation, standing wave of filter; ③ The attenuation, shortening factor , phase of the cable; ④Amplification of antenna amplifier; ⑤ Cable length Frequency meter function; Group delay function is powerful; The key is that you can also debug the uv-band frequency duplexer Firmware upgrade method Connect the computer with a data cable, press and hold Ctrl and then turn on the computer, click Udisk of Vector Network Analyzer, you will see a u-disk on the computer, copy the upgrade file to that u-disk, overwrite the original file, turn off the computer, press and hold Ctrl and turn on the computer, a dialog box will pop up, click Upgrade to upgrade, wait for the completion of the shutdown and then turn on the computer again. Special Note: If you meet the u-disk does not show up after connecting to computer, please fully charge it first before connecting to computer to enter the u-disk mode. Because once connected to the computer will be charging, some usb with load capacity is not good will cause the computer to exit the usb mode caused by connection failure. What in package: - 1 x SV4401A - 2 x N to SMA Adapters - 1 x SMA OPEN/SHORT/LOAD Calibration Kit - 2 x SMA Double Female Straight Adapters - 1 x SMA Dual Male Straight Adapter - 2 x 50cm/19.7" RG316 Cables - 1 x USB Type-C Data Cable - 1 x Storage Bag 1.Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrives. 2. Any Customs tax applied to this package should be covered by buyers. 3. As has been stated on the eBay item description, Import duties, taxes and charges are not included in the item price and shipping charges. These charges be at the buyer responsibility, meanwhile the customs tax depend on the buyer local customs office. Contact Us: 1. We have always been trying to provide the best service and reliable products for every customer, however, accident may happen sometimes, please contact us to resolve any issue before leaving a negative feedback. 2. Please contact us by "Ask a question". Payment 1. Payment methods accepted : Paypal only. 2. Payment must be received within 7 business days of auction closing. Shipping 1. We ship your orders within 1-2 business days after the payment received. 2. Item shipped via Singapore Post or HongKong Post , It takes about 7-14 business days (USA,CA,AU,UK). others country 10-20 business days(Brzil,India,RU),Exact delivery time depends on postal process. 3. If you do not receive your item(s) by 30 business days,Please feel free to contact us via ebay mail system , we will try our very best to resolve any problems with you Return Policy 1. Return is accepted within 30 days after the buyer's receiving the item. 2. If this item is defective upon receipt, customer has up to 14 days from date of receipt for exchange of a new one. 3. Unused/unopened merchandise will be fully credited. Other Policies We are not responsible for any custom duty or import tax. If you need we write low price on shipping bill, pls leave message when you make payment . All emails will be answered within 24 hours. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible, Suggest send eBay message to us, That is easy to find.
