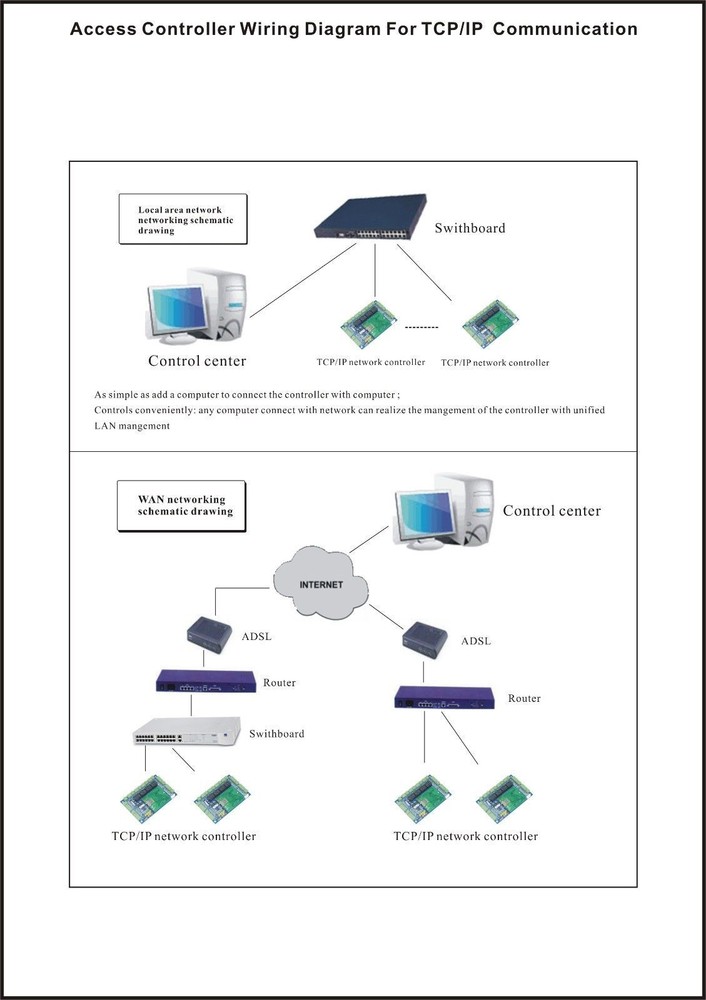

Check the listing for details. TCP/IP Network Wiegand 26 Entry Attendance Access Panel Control Board For 2 Door. Condition: New. Listed at 74.99 USD. Specification: Door control: 2 Readers can connect: 4 (2 IN, 2 OUT) Memory up to 20,000 Users/Cards Event Buffers/Record up to 20,000 Input Format of Reader: Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc) Network Communication via TCP/IP Professional Software: -Easy to check and query (Who enter the door at what time) -Time and Attendance printable report form can export as excel -Supportable database: Access or SQL Extremely easy to install Conventional functions: Offline operation Real time supervision Photo display when valid card Mass storage Flexible user privilege setup Remote unlocking Multi-user supervision Quick setting Convenience checking and query Revisable and printable report form Report can be exported to excel file Multi ways access: 1. Proximity Card only 2. Proximity Card and password 3. Card number and password 4: Super password(You can at most 4 super passwords. People only need to input any one of these 4 password to unlock the door. System doesn ' t record this unlocking information. Password can be 1-6 numbers. ) Alarm for long time opening Alarm for invalid card swiping Alarm for unlawful entry Unlocking at definite time e-map Professional function: Interface locking Intimidation alarm Integrated fire control Anti passback and anti tail Interlocking Multi-card unlocking Emergency double locking Indoor population checking Unlocking based on internal and external validation Specifications: Communication TCP/IP Software Supportable Database Access & SQL Power Supply Input: DC 12V, 4 ~ 7A Power Consumption of Circuit Board Less than 100mA Input Format of Reader Wiegand 26 bit (All card reader with compatible protocol, such as Motorola, HID, EM, M1, etc) Quantity of Readers 4 units Door Controlled 2 Door Controlled Control 2 door, get in and out door by swiping card, or get in by swiping card and get out door by button Door Opening Time Extending Setting 1 ~ 600 seconds (adjustable) Max Quantity of Controller No limit (Remark: N denotes q ' ty of computer serial prot or q ' ty of 485hub port, support 256pcs ports) Operating Temperature -40°C ~ 70°C Operating Humidity 10% ~ 90% RH, No Condensation Quantity of Users 20,000 users Quantity of Event Buffers (offline) 100,000 event buffers Power Interruption Protection Measure High speed memory, records never lose Max Distance from Reader to Controller 100m (suggestion distance 80m) Max Distance between Controllers Depends on net coverage area Collocations PCB board,case,power,power line,erial port communication line,software,manual,certificate,key(2pcs),carton Alarm for Long Time Door Open, Unlawful Entry, Intimidate Yes Fire and alarm linkage If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm Complsive open and close door at long time Yes Open door in remote distance Yes Inter Block Yes Anti Passback and Tail Yes Multi-Card Open Door Yes Open Long Time at Specified Time Yes Electronic Map Yes Locking Urgently Yes First Card to Unlocking Yes Unlock Based on Internal and External Validation Yes Keypad (card + password, super password) Yes Dimension - approx. 160 (W) x 106 (H) mm - approx. 6.3 (W) x 4.17 (H) inch Access control management software: Nomal shift and multi-shifts Time attendance management system; Fixed ration dining management system; Meeting attendance management system; Online patrol management system and Security alarm management system Package Includes: 1 x Access Control Board for 2 Door 1 x CD Tip: "Exit button", "electric lock" and "DC 12V power supply" are not included in this package. Shipping: We Ship to Worldwide. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. The item will be shipped out within 48 hours on the weekdays ( Monday to Friday ) or the next business days on the weekend after full payment must be received. Only ship to the eBay address. Please make sure your address in eBay is Correct before you pay. we are not responsible for any wrong or undeliverable addresses. We will ship out the item by airmail Registered Post from China or Hong Kong Post Office, it have a tracking number. it takes about 10-25 working days to arrive. Sometimes take a little longer , Due to Local dispatch or other reasons,It might goes more than 30 days . Country Proximate Delivery time Asia 7-25 working days Australia,New zealand,Canada 7-25 working days USA 7-15 working days Belgium/UK/Denmark/Finland/Greece/Ireland /Malta/Norway/Portugal/Germany/Sweden 10-25 working days Italy/France and other country 10-25 working days Payment We accept PayPal only. All major credit cards are accepted through our secure payment processor PayPal. Payment must be received within 7 days of auction closing. Refunds & Returns If you do not satisfied with your purchase, or if it is damaged when receive, please let us know, we will do our best to help. If the problem cannot be solved, please return it to me in the condition it was received within 30 days. we will send you replacement or give you a refund. All returns should include all original items undamaged, in re-saleable condition, all original packaging including manuals, warranty forms. Buyers is responsible for the returning shipping cost. We care about our valued customers, and will always try to help you. So if you have any problems, please Ebay message us immediately. Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues. Please contact us BEFORE leaving any negative or neutral feedback or open any dispute on paypal.
