Three Phase Energy Quality Analyzer with 4PCS 6000A Flexible Current Sensors

Name: Three Phase Energy Quality Analyzer with 4PCS 6000A Flexible Current Sensors
SKU: 257369867175
Price: 2550.00 USD
Availability: InStock

$1,275.00

$2,550.00 -50%

Brand VTSYIQI

Condition New

Item ID 257369867175

Maximum Peak Transient Voltage	See description
Voltage Flicker	Yes
Energy parameters	Wh, Varh, Vah.
Custom Bundle	No
Working Current	about 590mA, continuous working 8hours.
Current Measurement Range	See description
MPN	2025
Communication Interface	USB.
Voltage Measurement Range	See description
Backlight Function	Yes, suitable for dark places and nighttime use
Phase Configuration	3-Phase
Bandwidth	See description
Working Temperature	-10°C~40°C; below 80%Rh.
Current Clamp Wire Length	2M
Peak	Yes.
Line Voltage	1.0V~2000V.
Structure	Double insulation, with insulation shock-proof she
Number of channels	4 voltages, 4 currents
Phasor Diagram Display	Automatic
Storage Temperature	-10°C~60°C; below 70%Rh.
Expert Mode	Yes.
Insulation	Between instrument line and shell ≥10MΩ.
Voltage Test Wire Length	3M
Start Current Mode	Yes, 100 seconds
Electricity Energy Parameter	W, VA, Var, PF, DPF, cosφ, tanφ.
Phase Voltage	1.0V~1000V.
Menu language	English/Chinese.
Modified Item	No
Brand	VTSYIQI
Harmonic Wave	Yes, 0 - 50 times
Total harmonic distortion	Yes, 0 - 50 times, each phase
Input Impedance	Test voltage input impedance: 1MΩ
Transient Record Groups	150 groups
Screenshot Capacity	60PCS
Frequency	40Hz~70Hz.
Three-phases Unbalance	Yes
Country of Origin	China
Instrument Size	240mm×170mm×68 mm.
UPC	607612537438

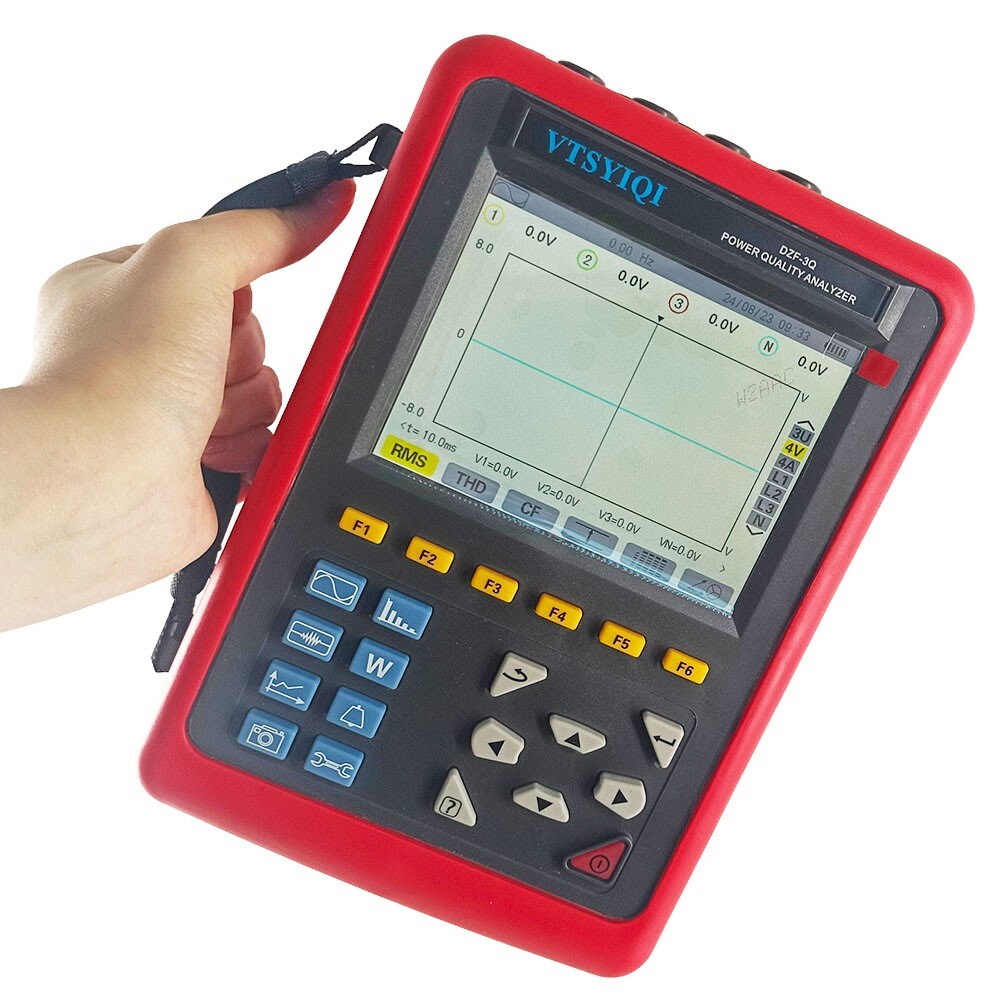

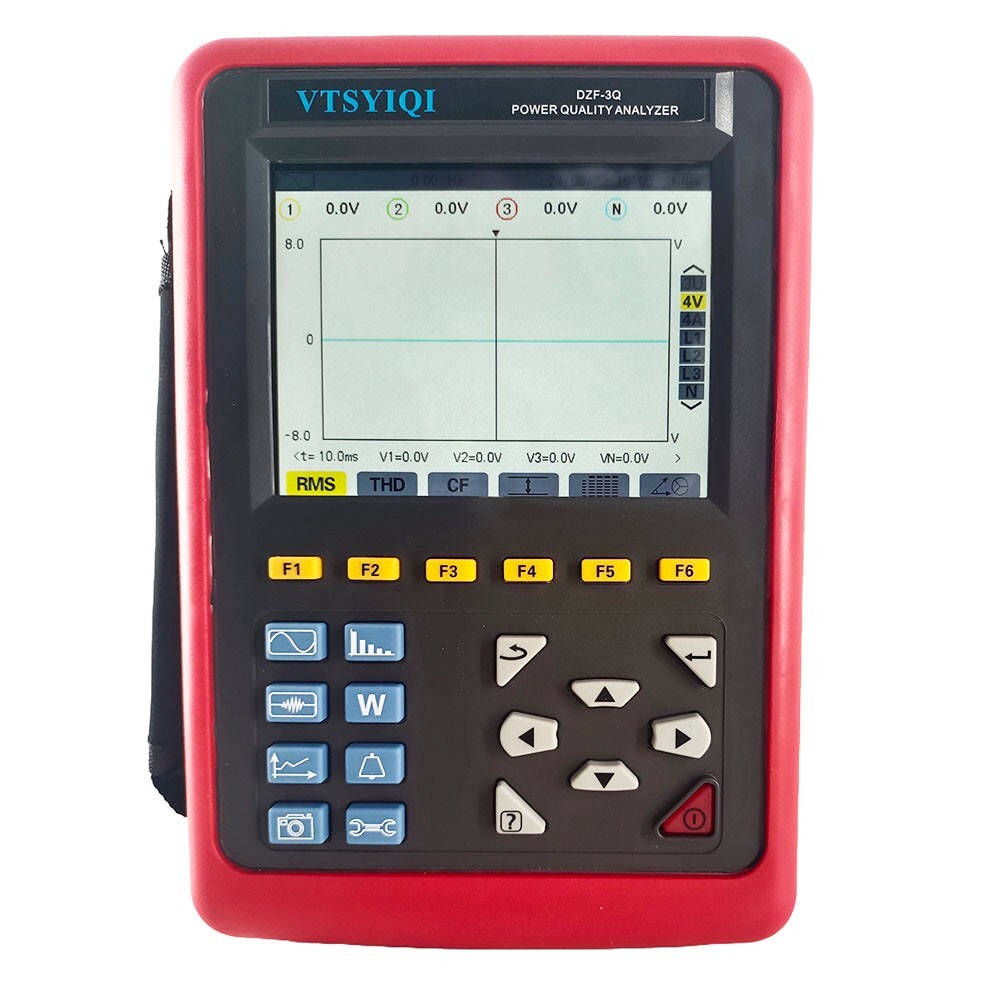

Check the listing for details. Three Phase Energy Quality Analyzer with 4PCS 6000A Flexible Current Sensors. Condition: New, Made in China. Listed at 2550.00 USD. 300F Flexible Coil Current Sensor (with Integrator) : 10A ~ 6000A. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on.
