All returns accepted ReturnsNotAccepted
Brand TSUDAKOMA
Operation CNC
Setting Position Horizontal/Vertical
Country/Region of Manufacture Japan

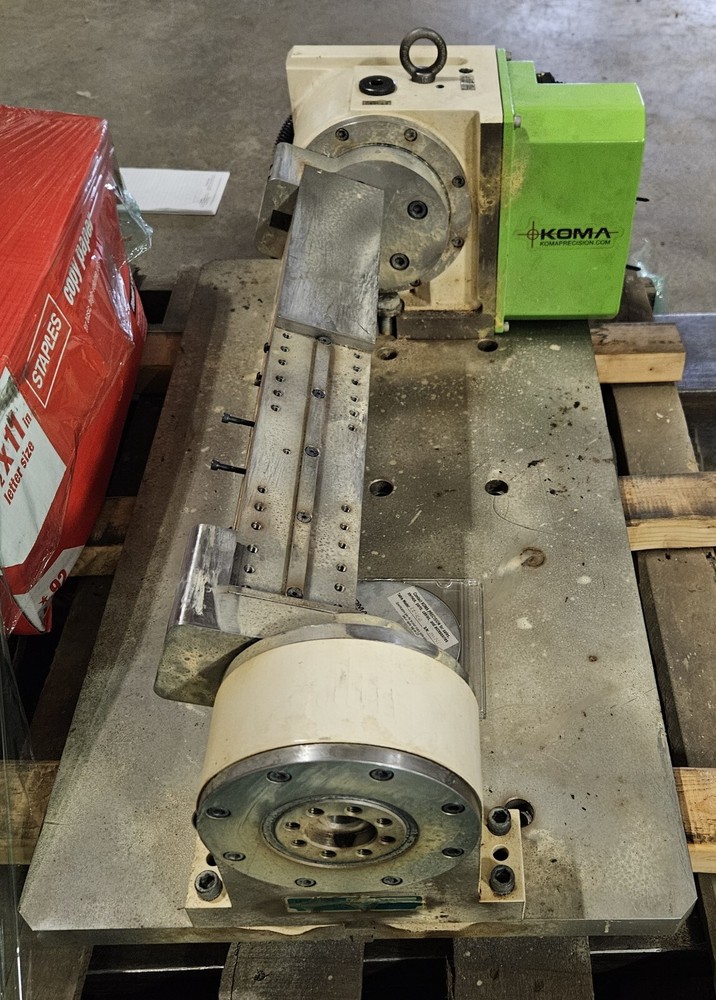

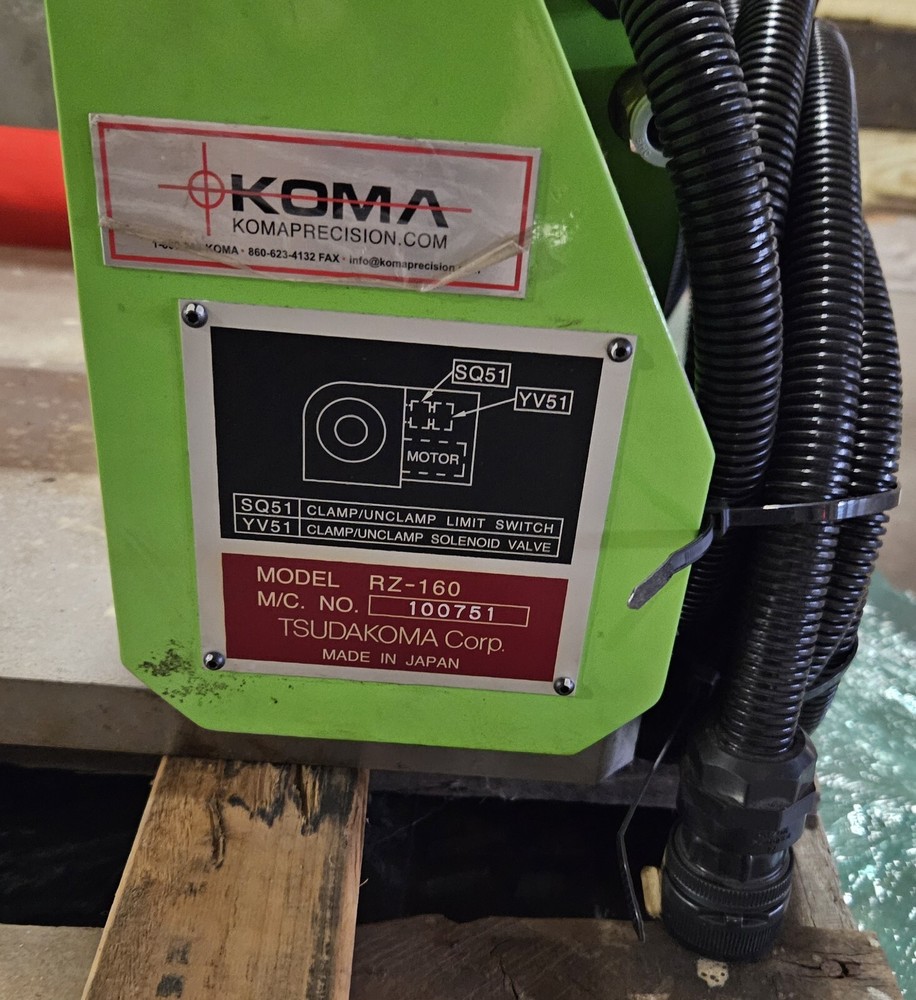

Check the listing for details. TSUDAKOMA ROTARY TABLE RZ-160 includes Controller, tailstock and cables. Condition: Used. Listed at 11499.00 USD. *****BEAUTIFUL UNIT USED FOR DEMO ONLY*****TSUDAKOMAMODEL RZ-160M/C NO 100751TAILSTOCKM/C NO 1171310 Controller (included with table) TPC-Jr G2 S/N 1005614COMES WITH ALL CABLES All mounted on a 1" flat ground subplate included! Spindle outer diameter 100h7 Table diameter (optional) (160 or 200) Center height 135 Center bore Nose Diameter (w/face plate) 55H7 (50H7) Thru Diameter 40 Table T-slot width w/face plate 12H8 Guide block width 14h7Maximum motor speed 3000rpm Speed reduction ratio 1/60 Maximum table speed 50rpm Inertia converted into motor shaft x 10-3kg.m2 .19 Clamp system Pneumatic Clamp torque @72psi Nm (ft. lbs.) 156 (115) Net Weight kg (lbs.) 40 (88) Allowable wheel torque Nm (ft. lbs.) 147 (108) Allowable work inertia kg.m2 .48 Allowable work weight kg (lbs) [with tailstock] 75 (165) [150 (330)] 150 (330) Allowable load when table clamped N (lbf) 7,840 (1,756) Nm (ft. lbs.) 156 (115) Nm (ft. lbs.) 392 (289)CHECK OUT OUR OTHER GREAT BUYS!

$5,749.50
$11,499.00
