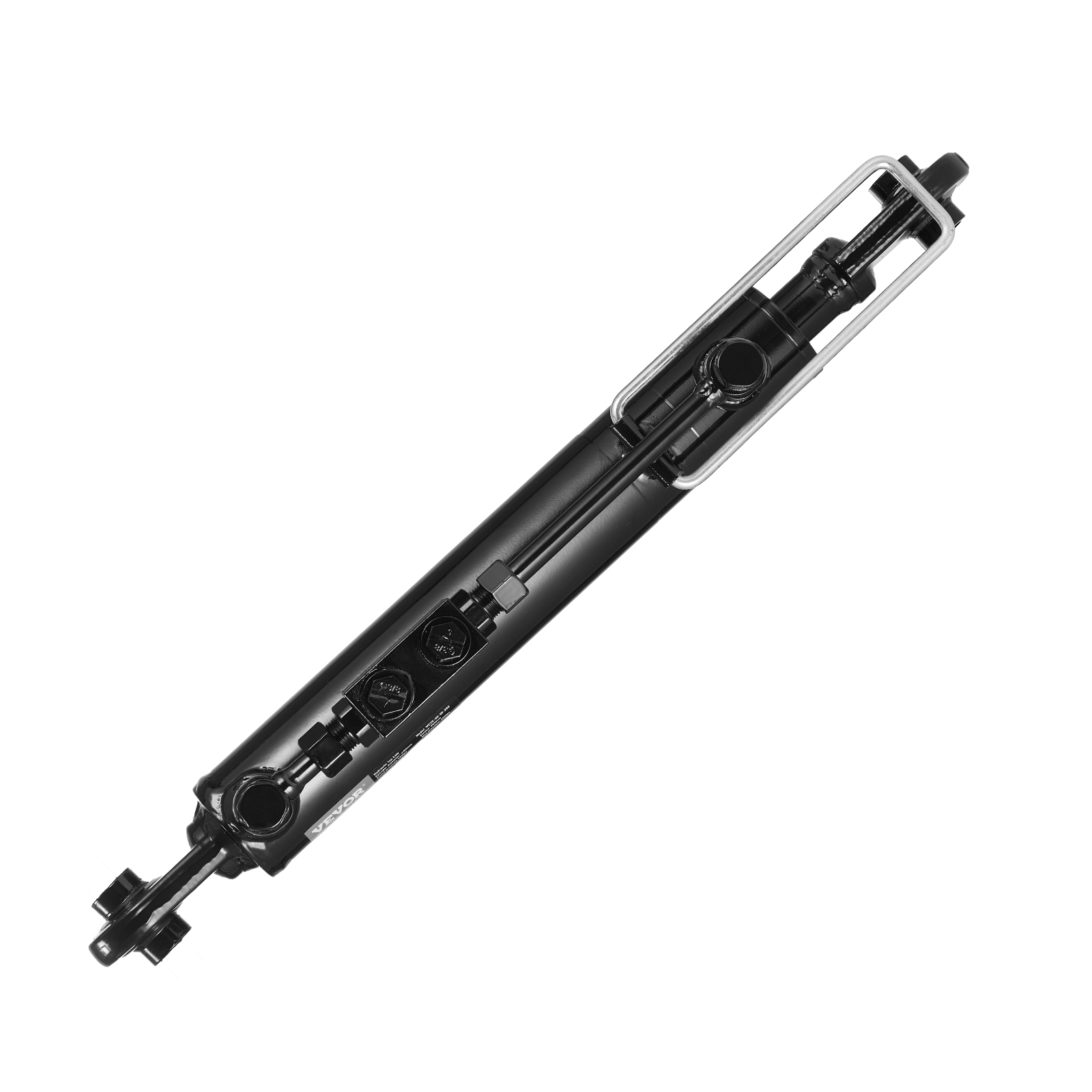

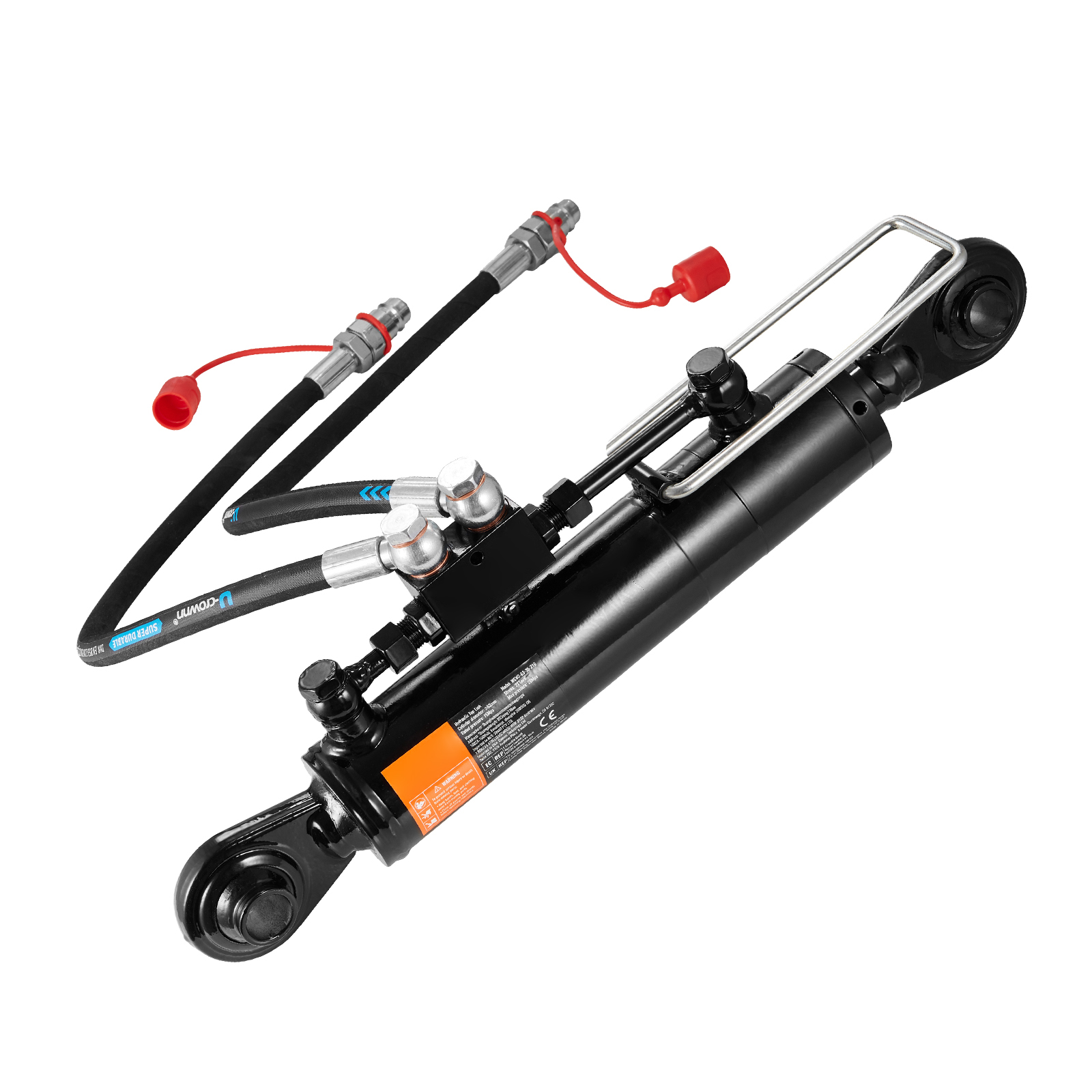

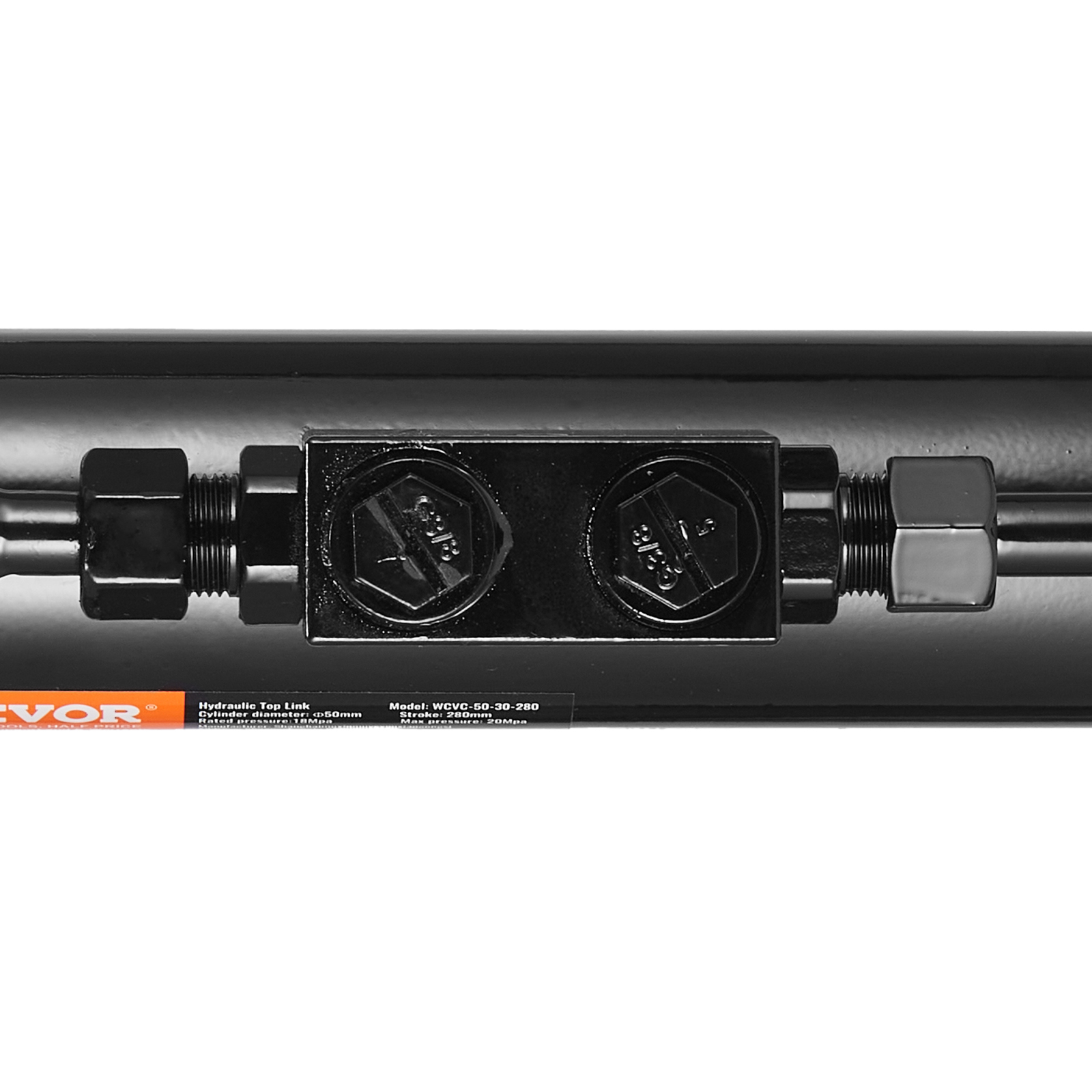

Uimoso Hydraulic Top Link Cat.1-1 / Cat.2-2 18 1/8" - 31 7/8" with 2x Hoses

Name: Uimoso Hydraulic Top Link Cat.1-1 / Cat.2-2 18 1/8" - 31 7/8" with 2x Hoses
SKU: 286804028452
Price: 142.00 USD
Availability: InStock

$71.00

$142.00 -50%

Brand Uimoso

Condition New

Item ID 286804028452

Selection

Quantity

Selection	Cat.1-1 [20 7/8" - 31 7/8"]
Brand	Uimoso
MPN	DLGYYGL11IN26R8N3
Model	Hydraulic Top Link
Suit for	Cat.1-1 / Cat.2-2 Tractor

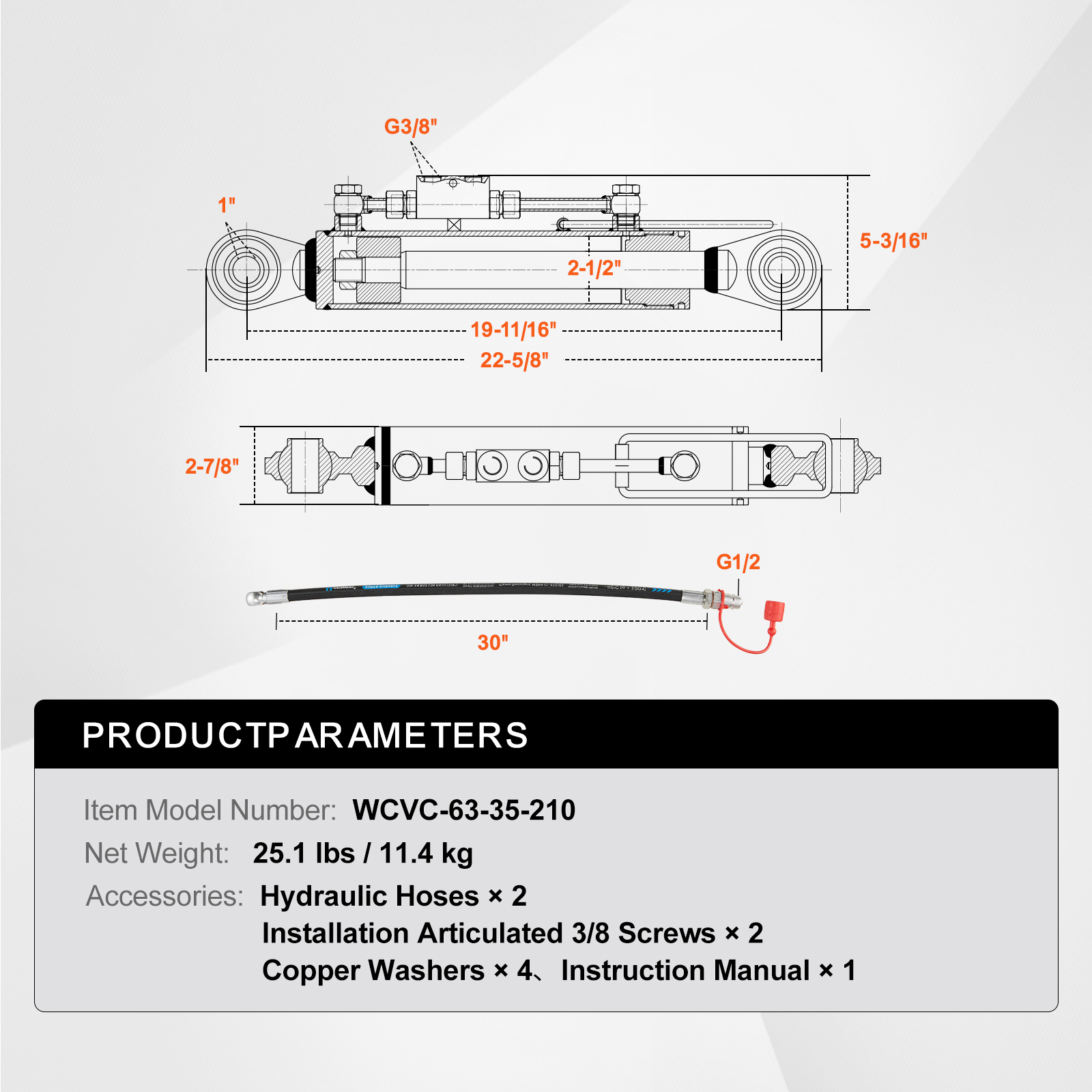

Item Model Number	WCVC-50-30-280/WCVC-63-35-210/WCVC-50-30-210

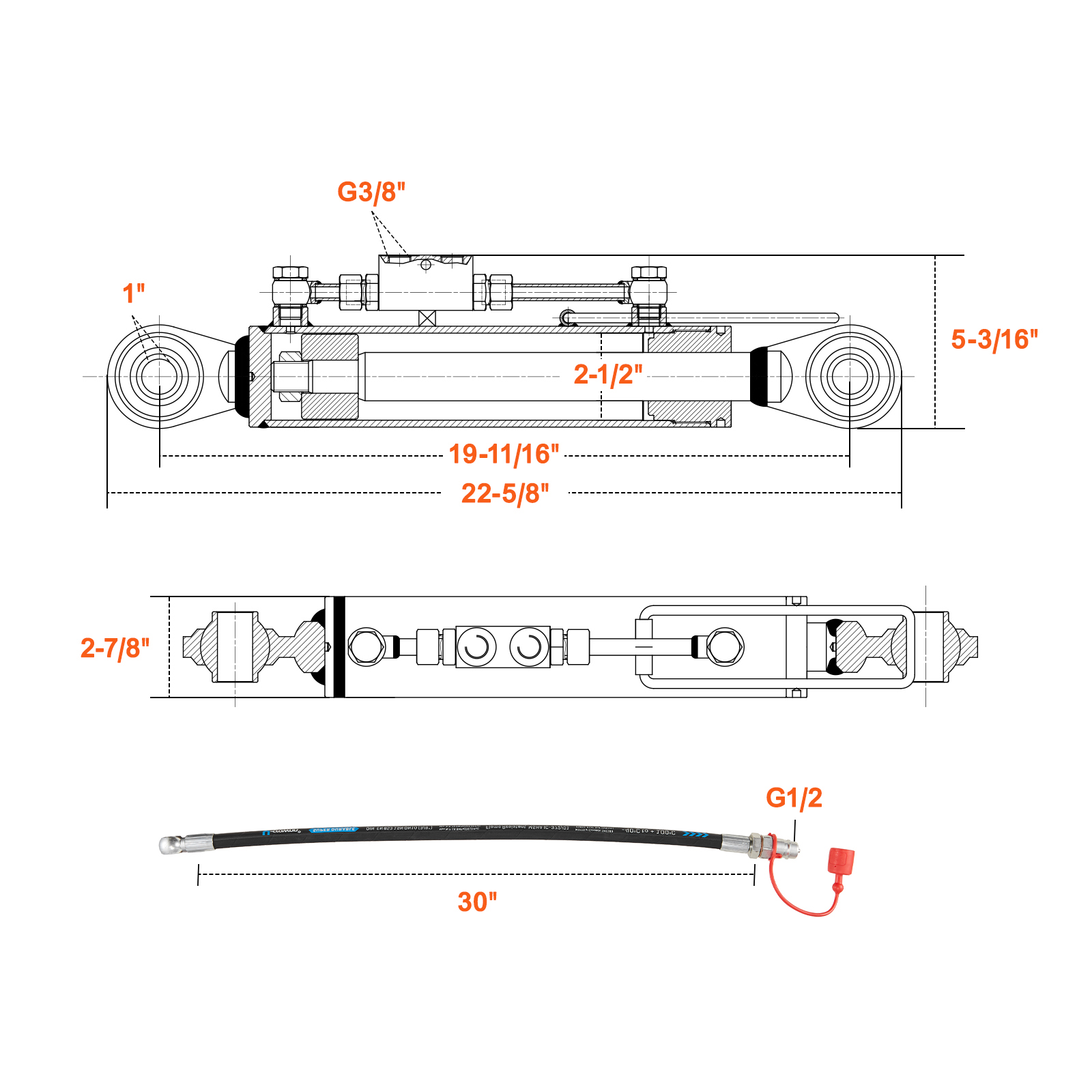

Minimum Retracted Length	20-7/8 inch (530 mm)/19-11/16 inch (500 mm)/18-1/8 inch (460 mm)
Stroke	11in/8-5/16in/ 8-1/4in / 280/211/210 mm
Cylinder Diameter (I.D.)	2.0/2.5 inch / Φ50/63 mm
Outer Diameter	2-3/8in/ 2-7/8 inch (Φ60/73 mm)
Piston Rod Diameter	1.2/1.4 inch / Φ30/35 mm
Connection Hole Diameter	0.8/1.0 inch / Φ19.4/Φ25.5 mm
Connection Hole Width	1.7/ 2.0 inch / 44/51 mm
Thrust Force	3.5/4 Tons
Pull Force	2.3/2.5 Tons

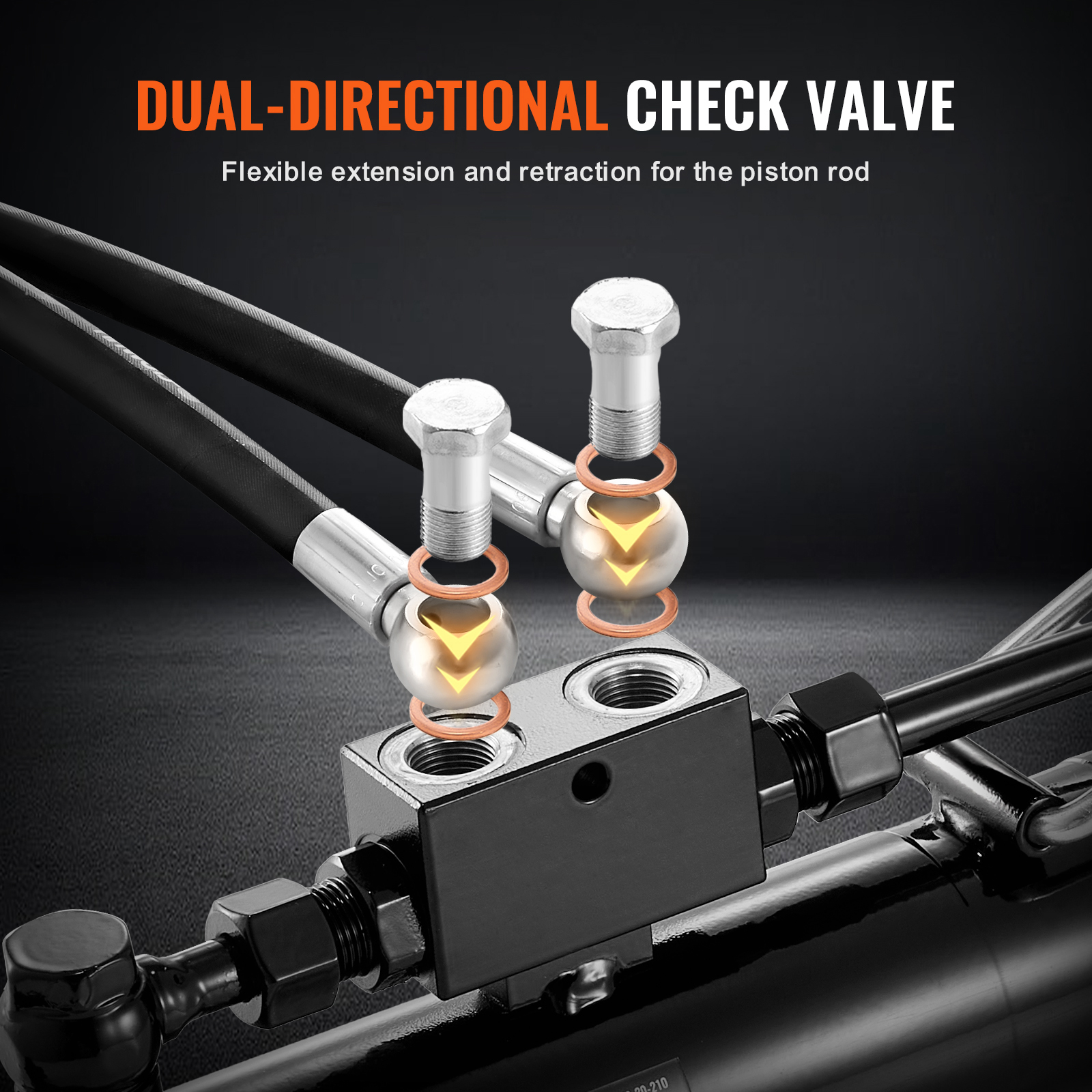

Check Valve Inlet/Outlet Port	G3/8"

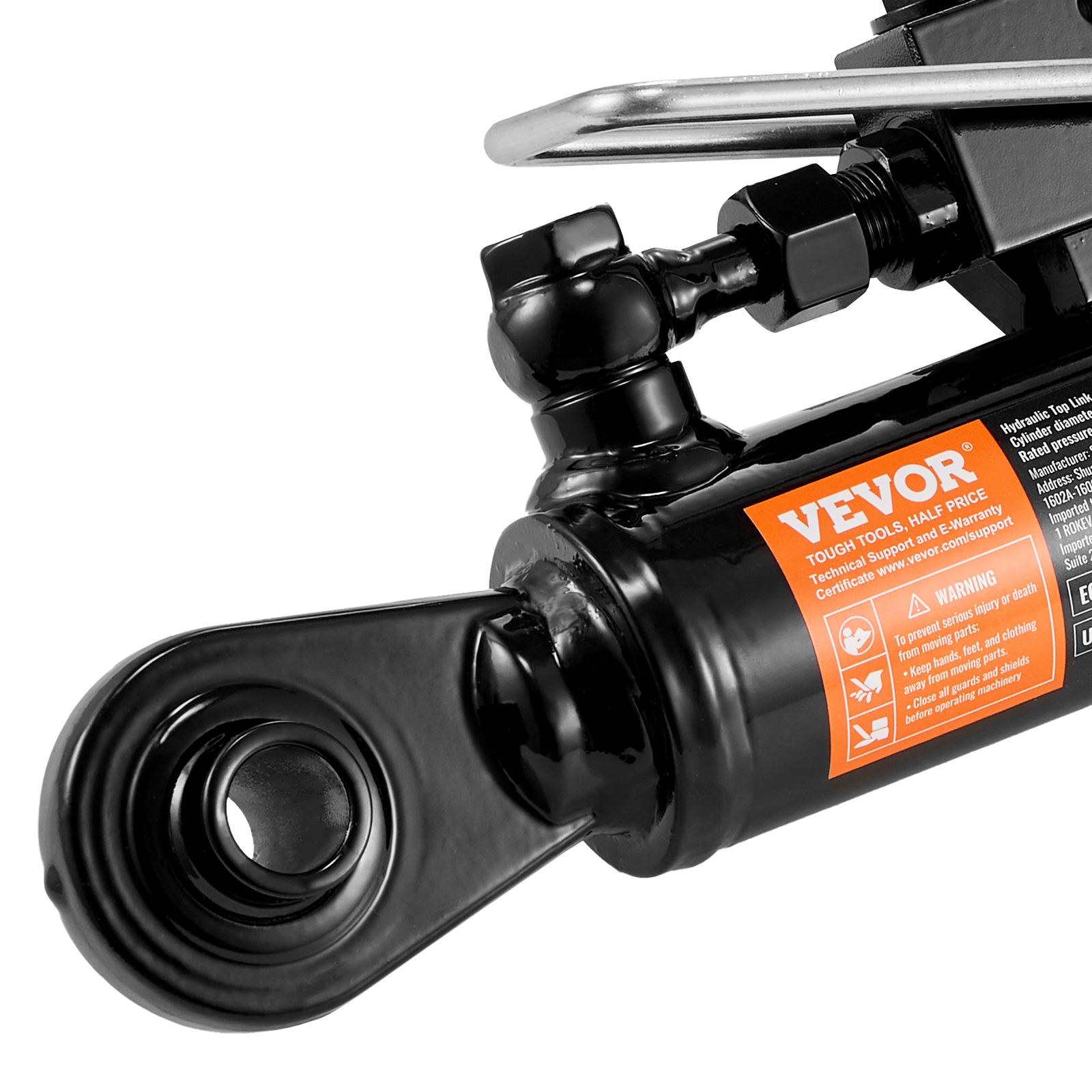

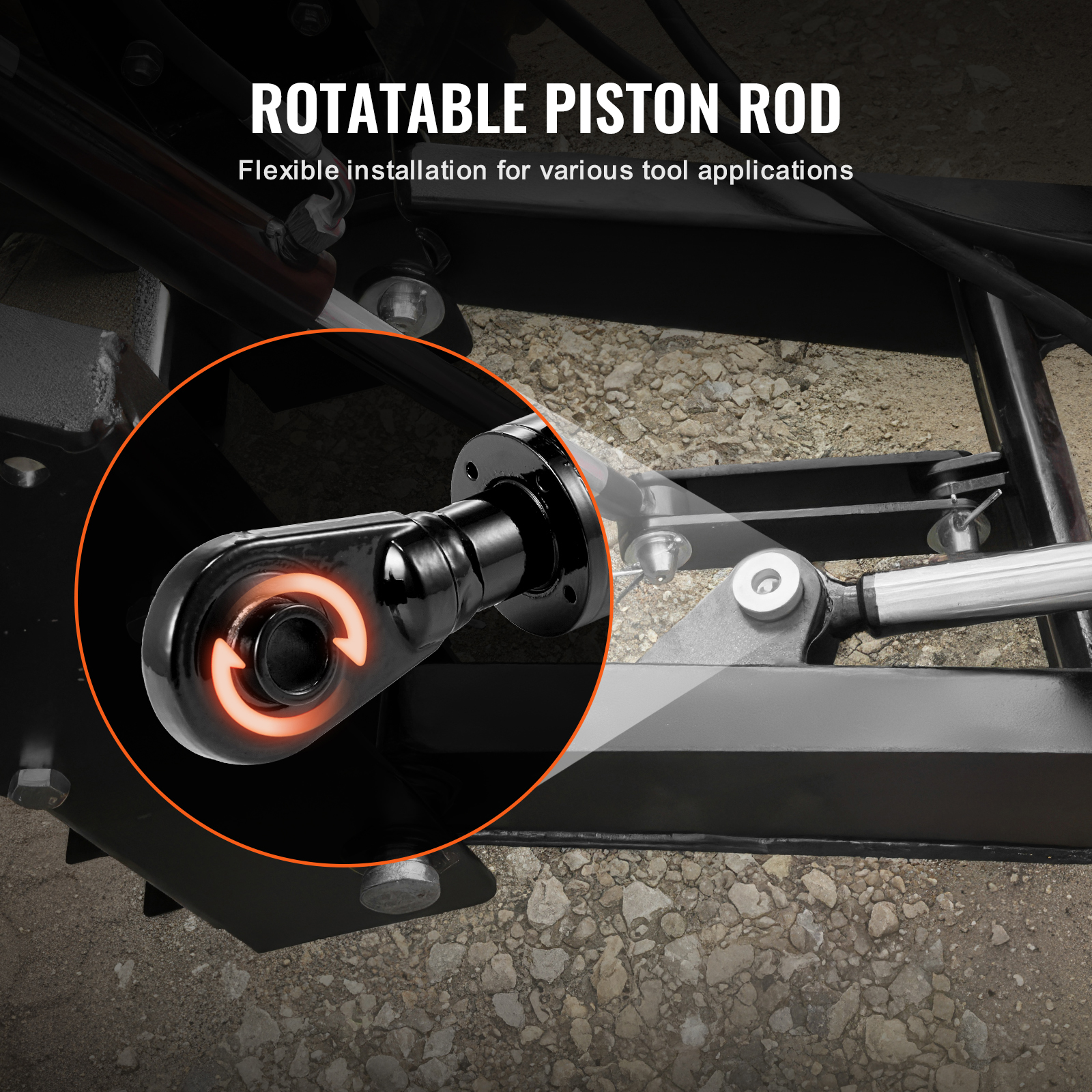

Rotatable Piston Rod(type1,3)	Ball Joint Linkage Structure
Maximum/Rated Working Pressure	20/18 MPa (2900/2610 psi)/20/16 Mpa（2900/2320psi）
Compatible Equipment	ClassⅠTractors/ClassⅡTractors

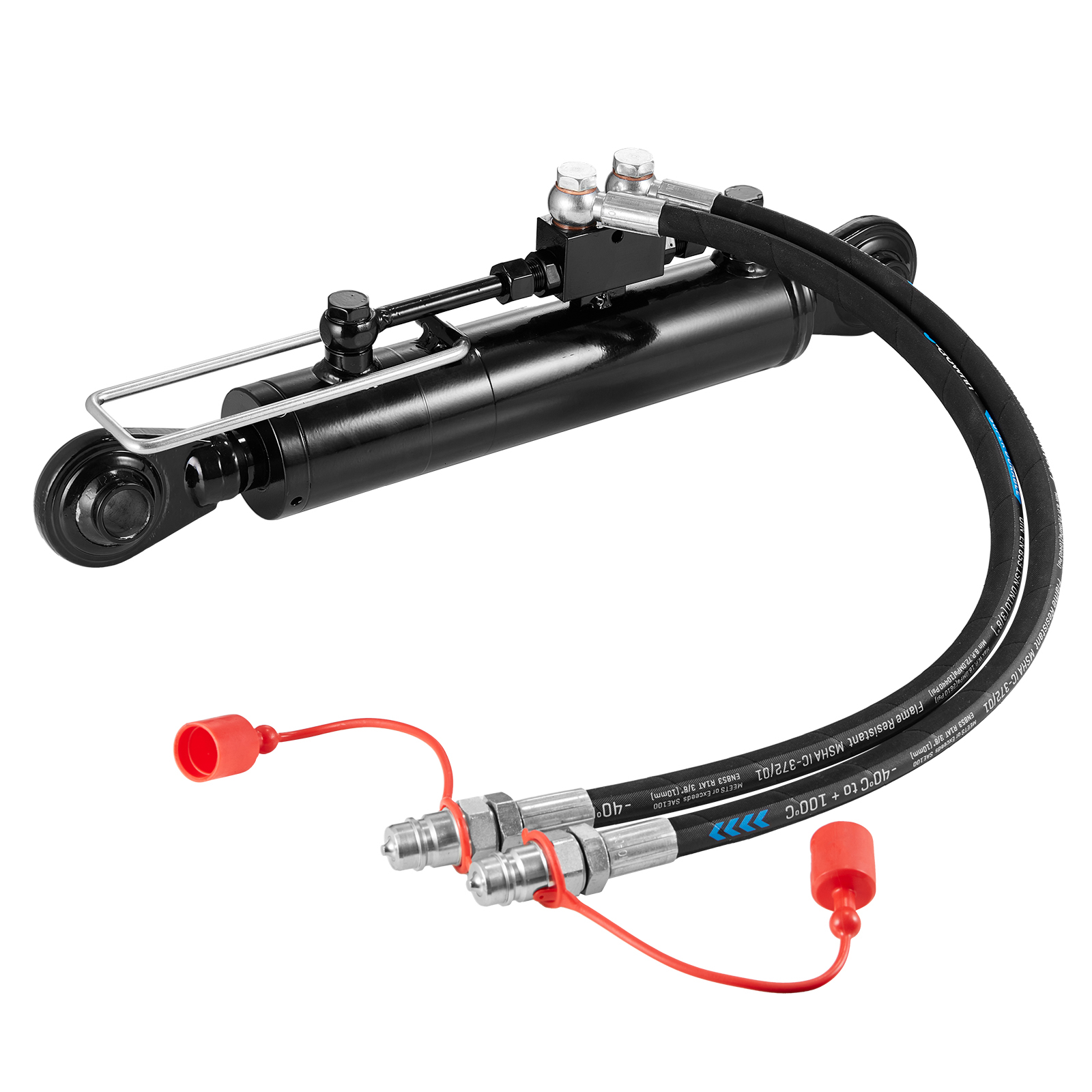

Hydraulic Hose(I.D.&L.)	0.4×30.1 inch/∅10×765mm
Fitting Type	G1/2
Color and Surface Treatment	Black Paint
Main Material	45#
Net Weight	20.1/25.1/18.1 lbs/9.1/11.4/8.2 kg
Product Dimensions	23.4×4.7×2.4/ 22.6×5.2×2.9/20.5×4.7×2.4 inch

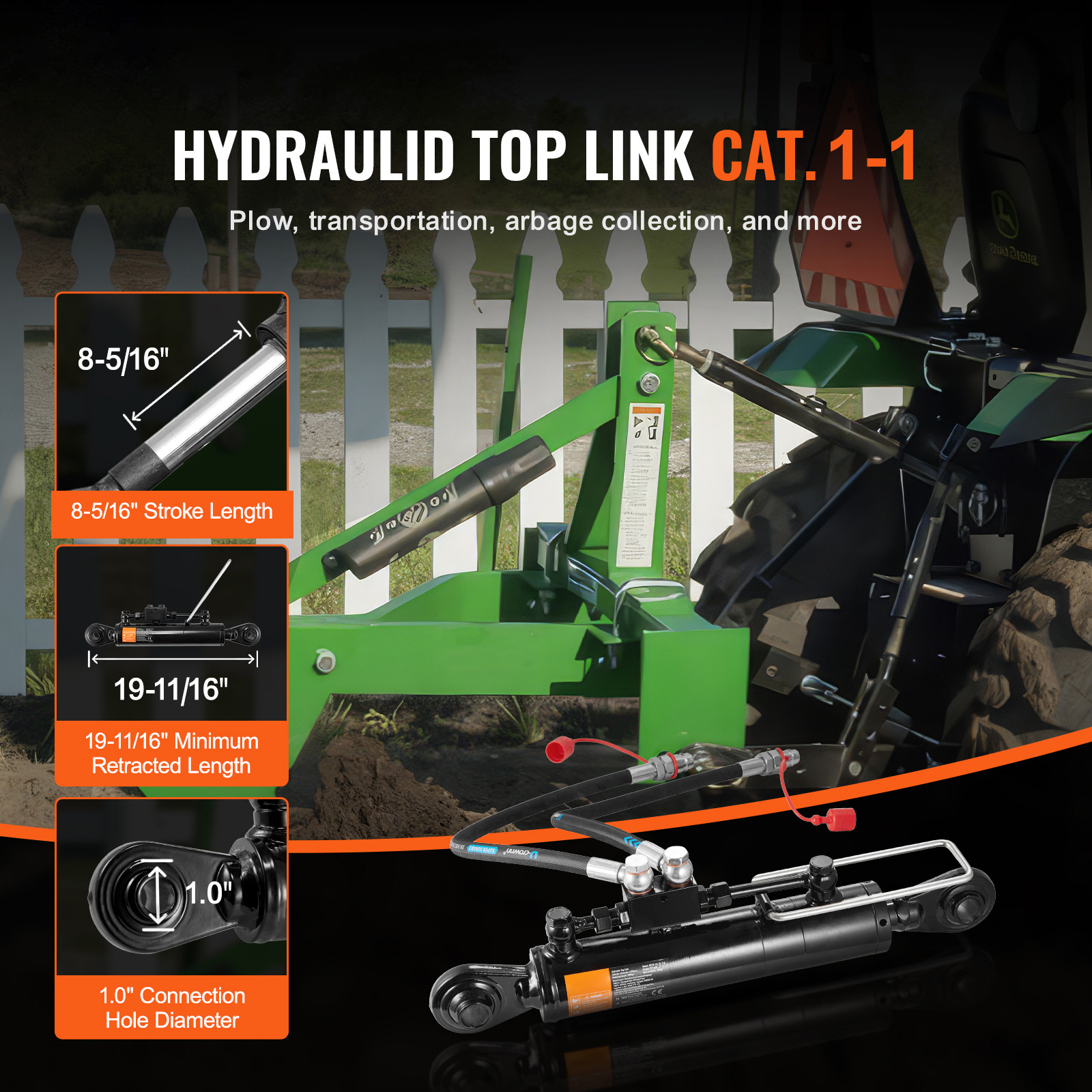

Check the listing for details. Uimoso Hydraulic Top Link Cat.1-1 / Cat.2-2 18 1/8" - 31 7/8" with 2x Hoses. Condition: New. Listed at 142.00 USD. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure. Adaptation for Cat. 1-1/2-2 Tractors: The hydraulic top link cat. It can be directly installed on Cat.
