| Vertical Linearity Error | ≤3% |
|---|---|
| Horizontal Linearity Error | ≤0.1% |
| Weight (kg) | 1.0 |
| Resolving Power | ≥36dB |
| Gain (dB) | 0 ~120dB |
| Dynamic range | ≥32dB |
| MPN | VNDT98UFD20200211 |
| Materials sourced from | China |
| Operating Temperature (℃) | -20~70 |
| Channels | 500 |
| Brand | VTSYIQI |
| Reject | 0~80% |
| Sensitivity Leavings | ≥62dB |
| Frequency Range (MHz) | 0.2~20MHz |
| Pulse Displacement (μs) | -20 ~+3400 |
| Zero (μs) | 0.0 ~99.99 |
| H*W*D(mm) | 240*156*48 |
| Material Velocity (m/s) | 1000 ~15000m/s |
| Measuring Range (mm) | 0 ~10000mm |
| Country of Origin | China |
| Measurement Mode | Single、Dual、Thru |
| UPC | 607613355673 |

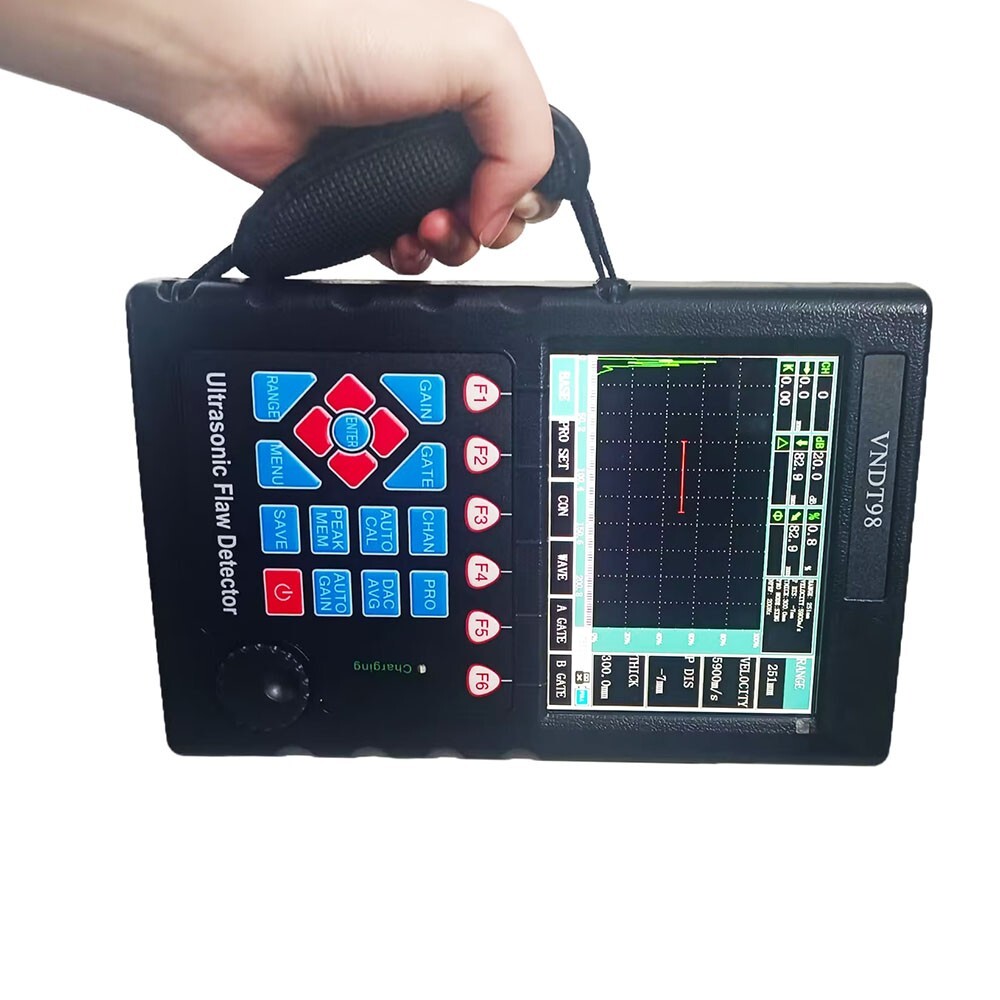

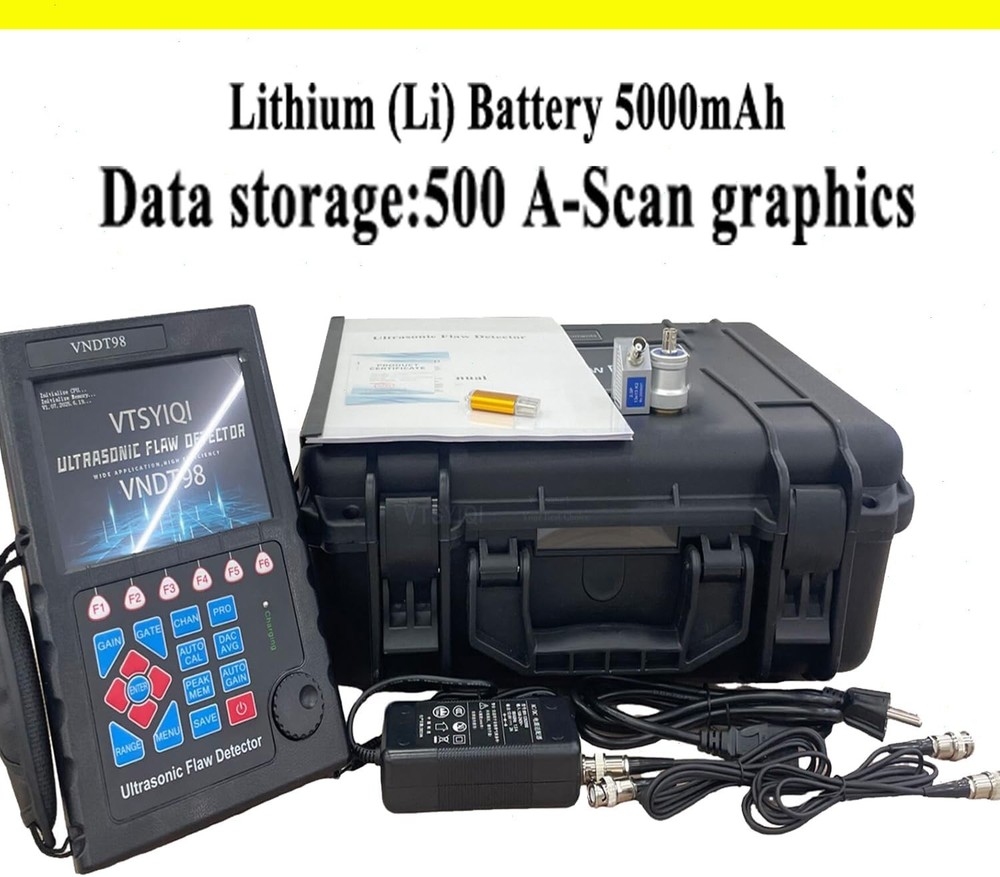

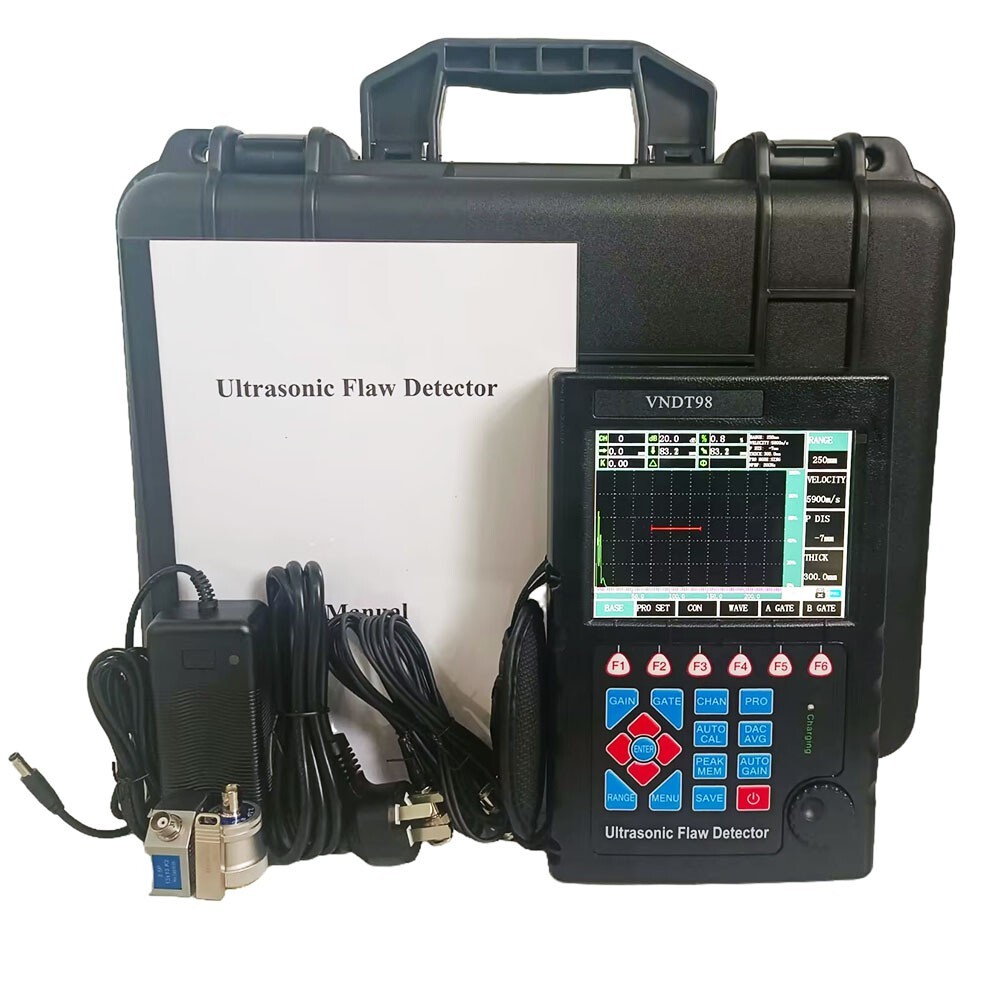

Check the listing for details. Ultrasonic Flaw Detection with Range 0~10000mm for Welding Defect Detection. Condition: New, Made in China. Listed at 1770.00 USD. Convenient to make and use DAC 、 TCG and AVG to evaluate the echo, the curve can be modified and compensated. Automated display precise flaw location(Depth d、 level p 、 distance s 、 amplitude 、 sz dB 、 ф);.
