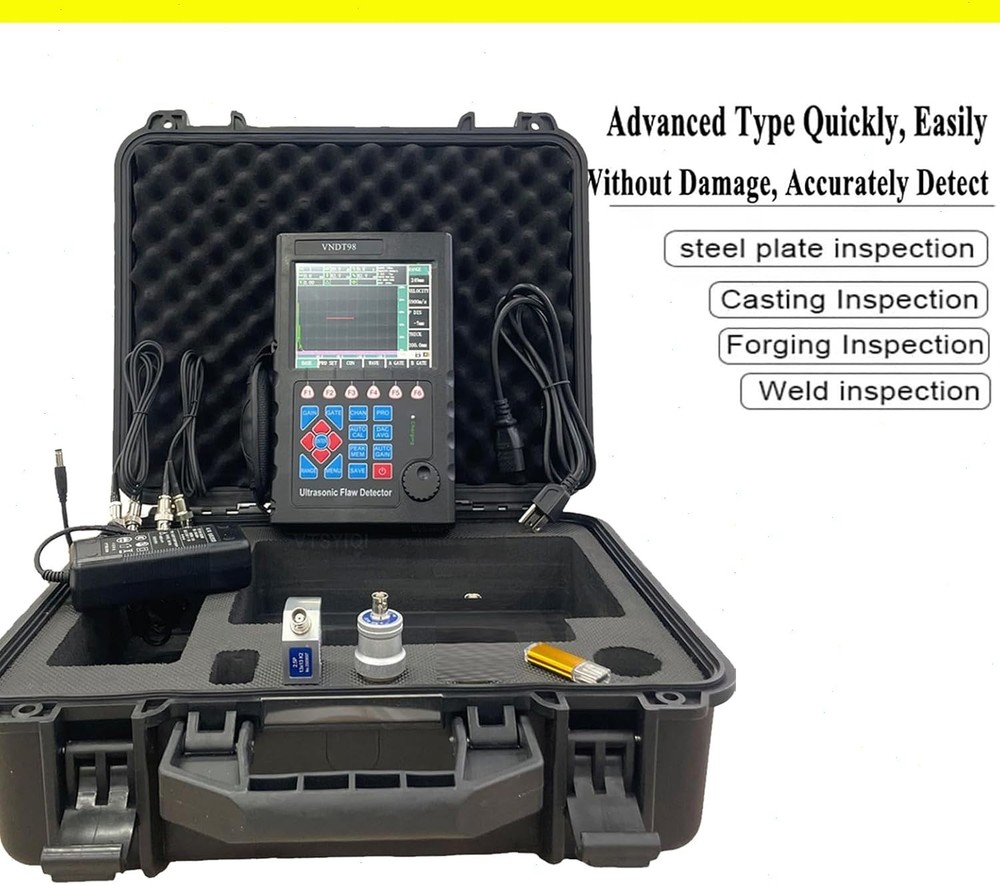

Ultrasonic Flaw Detector with Range 0 ~10000mm DAC AVG TCG B Scan AWS Function

Name: Ultrasonic Flaw Detector with Range 0 ~10000mm DAC AVG TCG B Scan AWS Function
SKU: 168340293527
Price: 1770.00 USD
Availability: InStock

$885.00

$1,770.00 -50%

Brand VTSYIQI

Condition New

Item ID 168340293527

Vertical Linearity Error	≤3%
Horizontal Linearity Error	≤0.1%
Weight (kg)	1.0
Resolving Power	≥36dB
Gain (dB)	0 ~120dB
Dynamic range	≥32dB
MPN	202410302241
Materials sourced from	China
Operating Temperature (℃)	-20~70
Channels	500
Brand	VTSYIQI
Reject	0~80%
Sensitivity Leavings	≥62dB
Frequency Range (MHz)	0.2~20MHz
Pulse Displacement (μs)	-20 ~+3400
Zero (μs)	0.0 ~99.99
HWD(mm)	24015648
Material Velocity (m/s)	1000 ~15000m/s
Measuring Range (mm)	0 ~10000mm
Country of Origin	China
Measurement Mode	Single、Dual、Thru
UPC	635407814266

Check the listing for details. Ultrasonic Flaw Detector with Range 0 ~10000mm DAC AVG TCG B Scan AWS Function. Condition: New, Made in China. Listed at 1770.00 USD. DAC 、 AVG 、 TCG 、 B scan 、 AWS. Convenient to make and use DAC 、 TCG and AVG to evaluate the echo, the curve can be modified and compensated. 6dB DAC functions;. The position and width of the gate can be arbitrarily set on the screen, and an incoming wave alarm can be set.
