| Return shipping will be paid by | Buyer |
|---|---|
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money Back |
| Brand | LUNYEE |
| MPN | Does Not Apply |
| Number Of Axes | 3 |
| Input Voltage | 12 V |
| Application | Dual Axis |
| Run Method | Bipolar |
| Model | 3 axis control board 5.2 |
| Country/Region of Manufacture | United States |
| Modified Item | No |
| Input power | 24V/5A (support 48V500W power supply) |
| Drive form | Onboard 4 drives |
| MCU model | MEGA328P/Arduino |
| Support axis | X, Y1, Y2, Z， |
| Support limit switch quantity | X+, X-, Y+, Y-， |
| Offline | support |

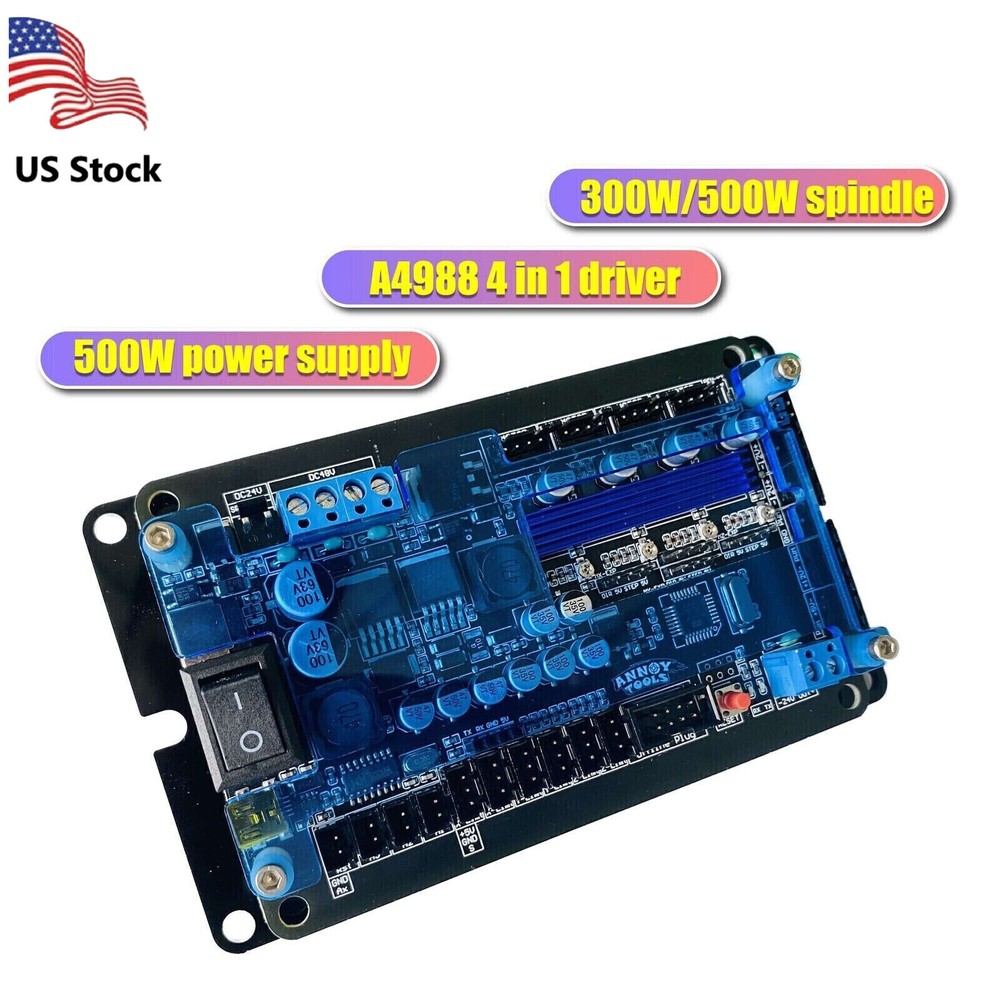

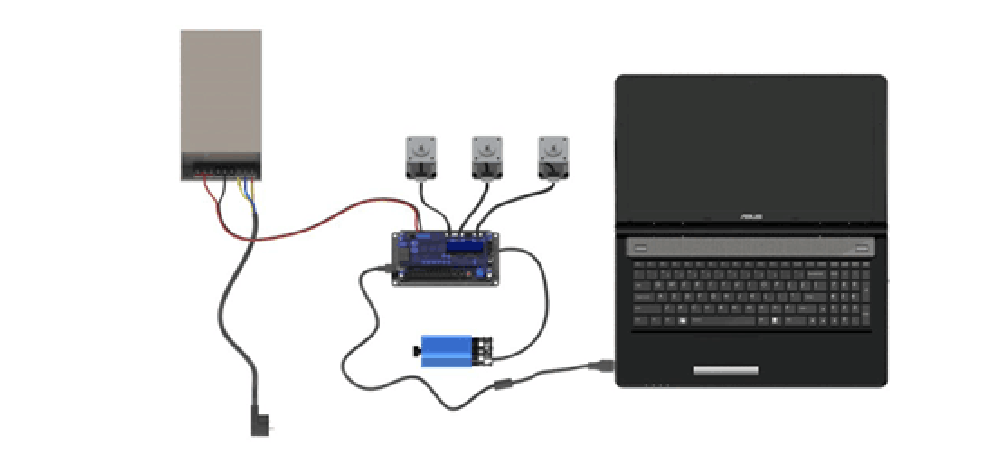

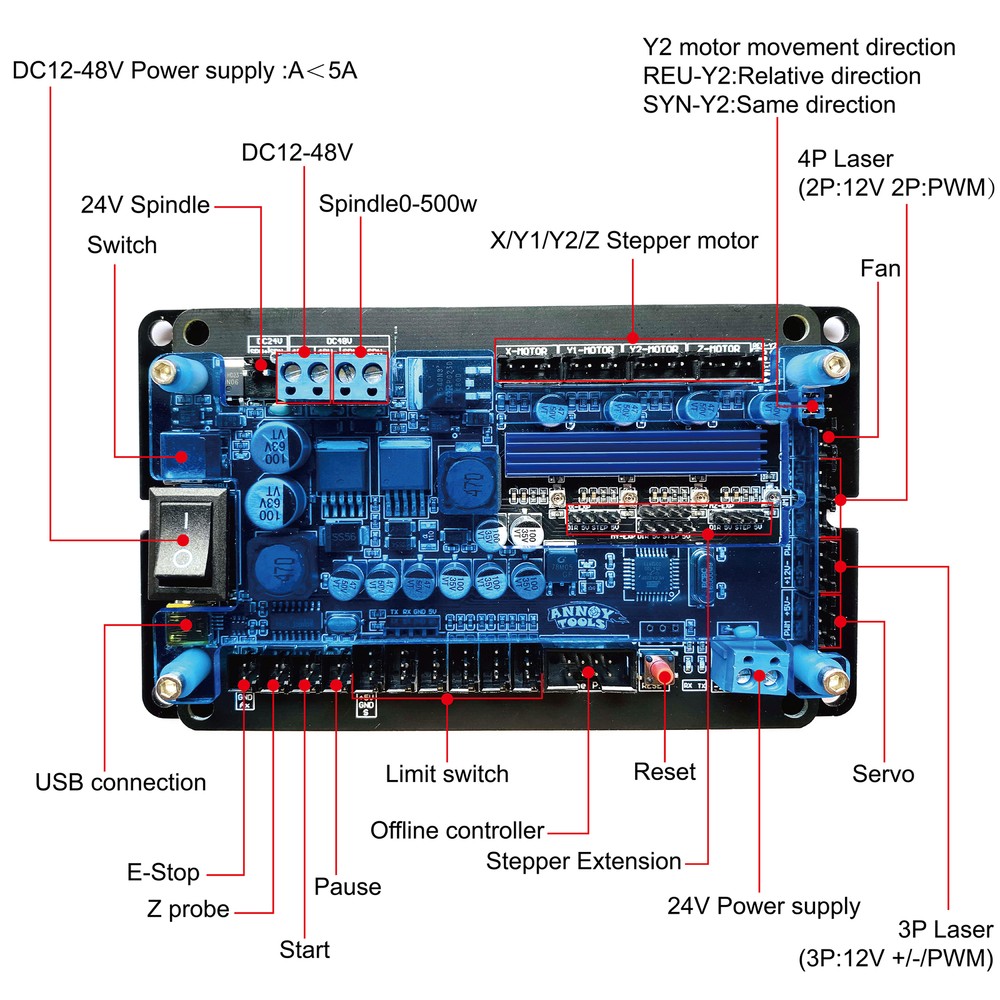

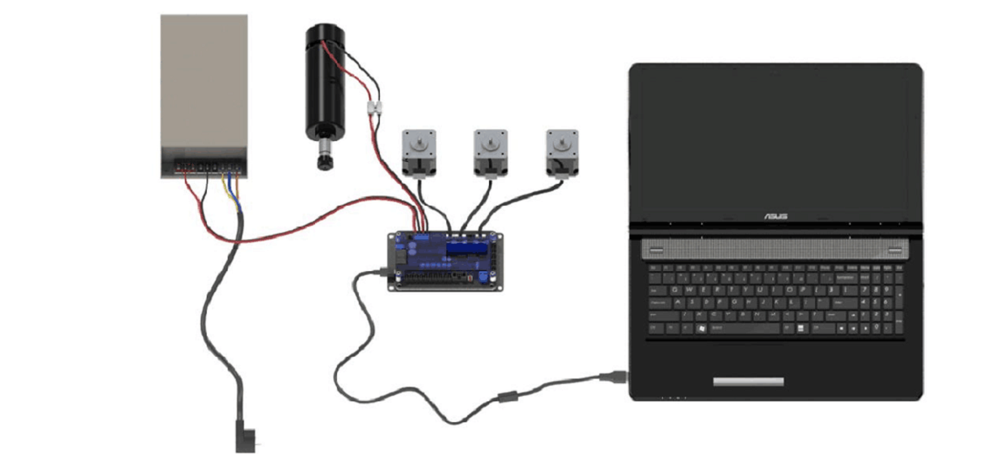

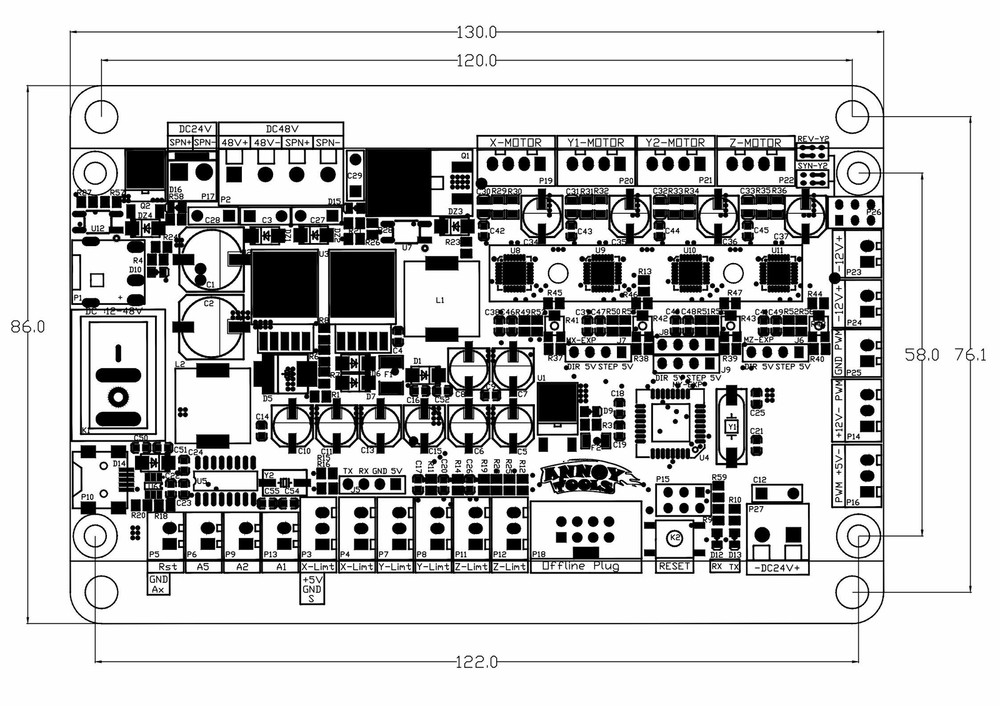

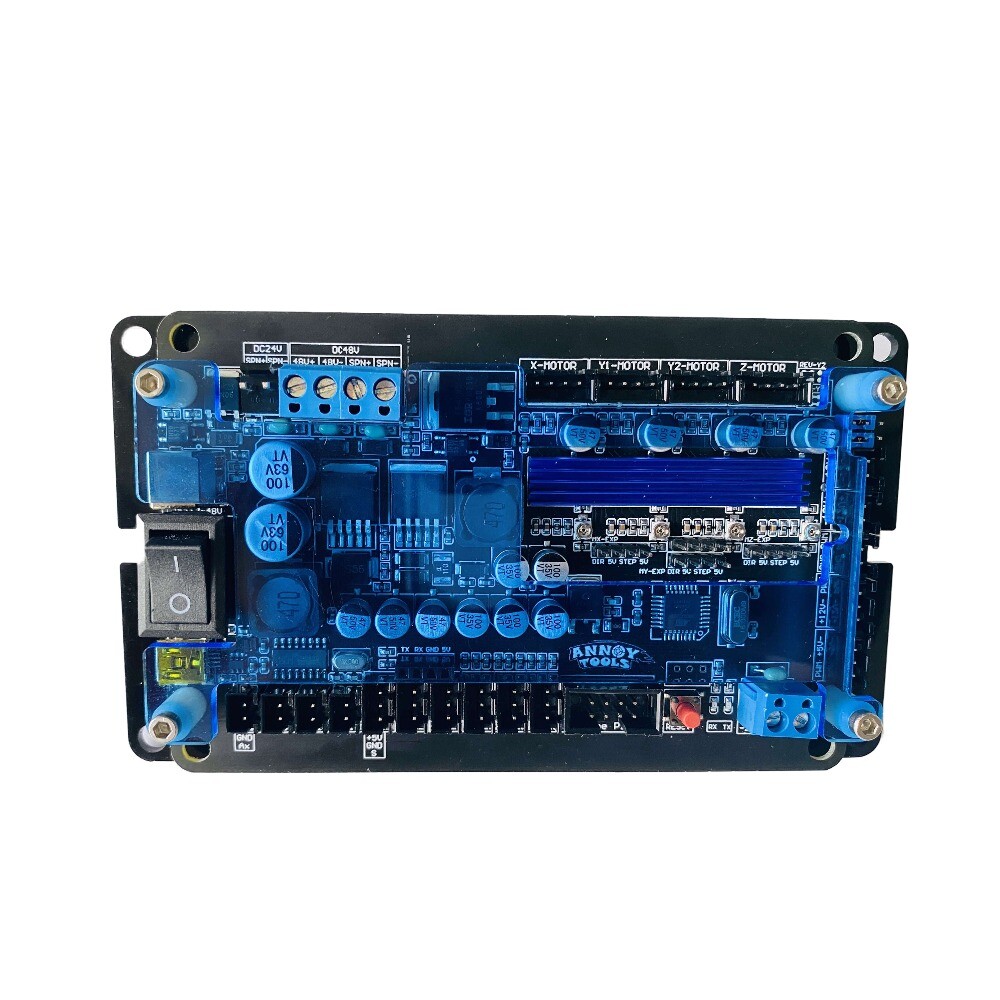

Check the listing for details. USB GRBL Controller Driver Board 3 Axis Stepper Motor Double For CNC Engraving. Condition: New. Listed at 22.09 USD. Power Supply: DC12-48V Spindle:48V 0-500W Stepper Motor:X/Y1/Y2/Z Fan:12V Connect Laser:2pin/3pin/2pin-2pin Support:Servo/Offline controller/Limit switch Connection:USB Cable Friendly Reminder: 1. The spindle motor and laser cannot be connected at the same time 2. The offline control board and the USB data cable cannot be connected at the same time 3. Turn on the power after the electrical connection is completed 4. The positive and negative of the input power must not be reversed, and the reverse connection will burn 5. The 48VDC interface cannot be connected to the switching power supply, and the voltage that can be passed through the DC seat of the control board cannot be greater than 5A Feature: 1. The spindle motor and laser cannot be connected at the same time 2. The offline control board and the USB data cable cannot be connected at the same time 3. Turn on the power after the electrical connection is completed 4. The positive and negative of the input power must not be reversed, and the reverse connection will burn 5. The 48VDC interface cannot be connected to the switching power supply, and the voltage that can be passed through theDC seat of the control board cannot be greater than 5A 1* controller 1* USB cable 1*775 motor cable Spindle: Laser: Install on machine:
