| Brand | Thomletha |
|---|---|
| MPN | GM1761080MD |
| Fixture Style | Spin Index Fixture |
| Unit Weight | 13 LBS |
| Collet Series Compatibility | 5C |
| Warranty | 1 Year |
| Spindle thread | 2-1/4 -8 TPI |
| Spindle accuracy | .0004" TIR |
| Dividing spindle concentricity | .0004" |
| Cylindrical center bore (per 1") concentricity | :.0008" |
| Quantity | 1 |
| Lateral offset of center slot of dividing spindle | .0008" |
| Center slot to dividing spindle concentricity | .0008" |
| Spindle center line parallelism | .0008" |
| Base to face Squareness | .0008" |

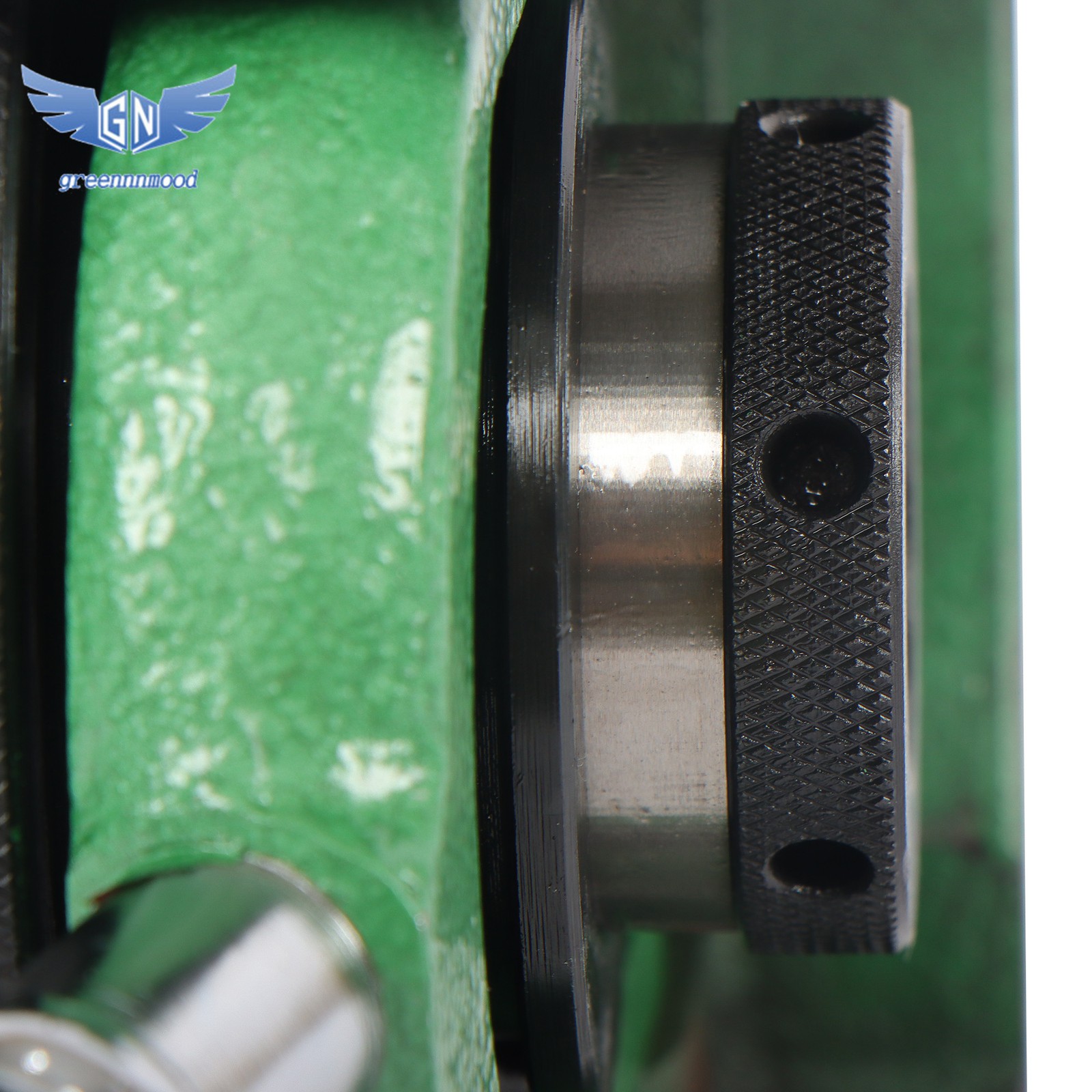

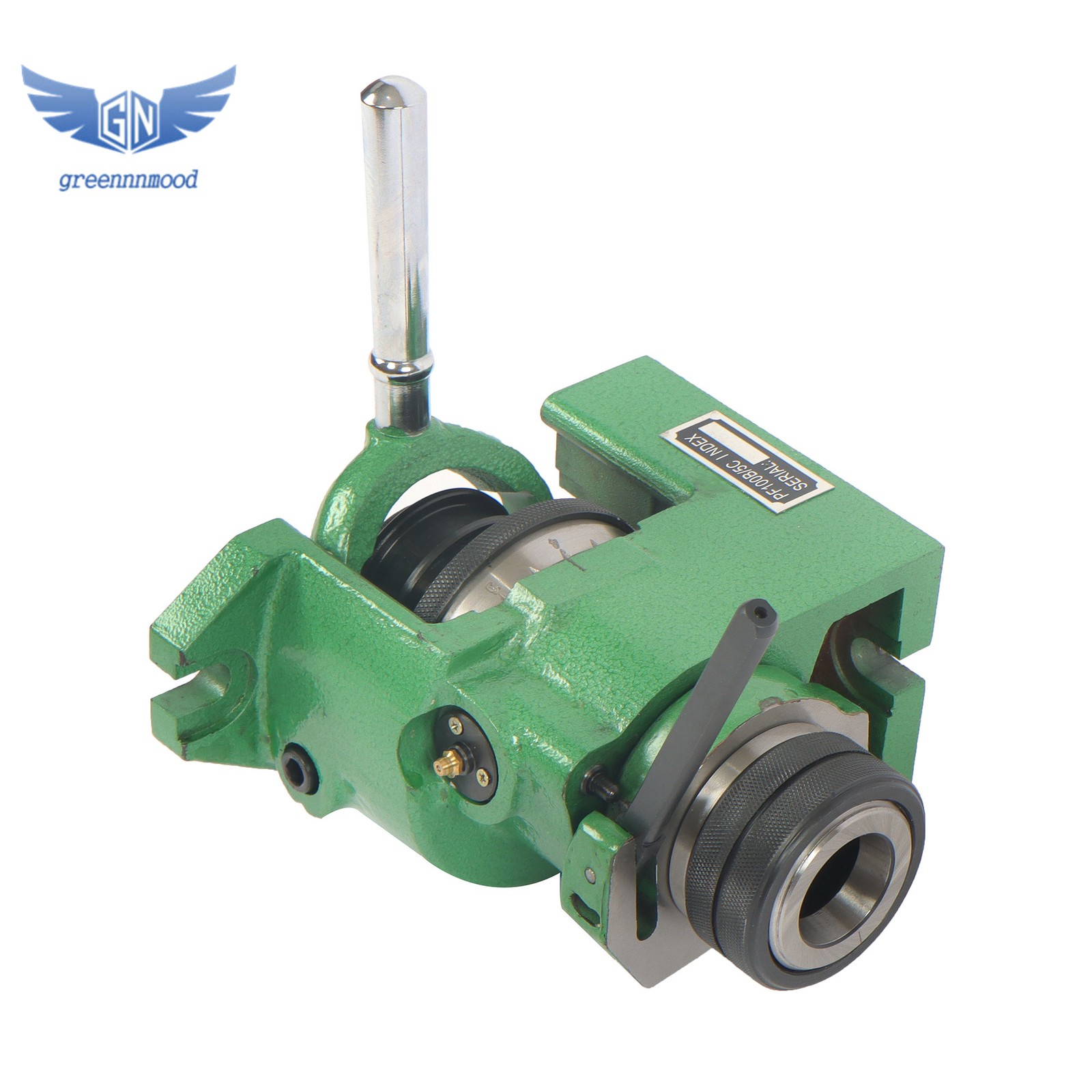

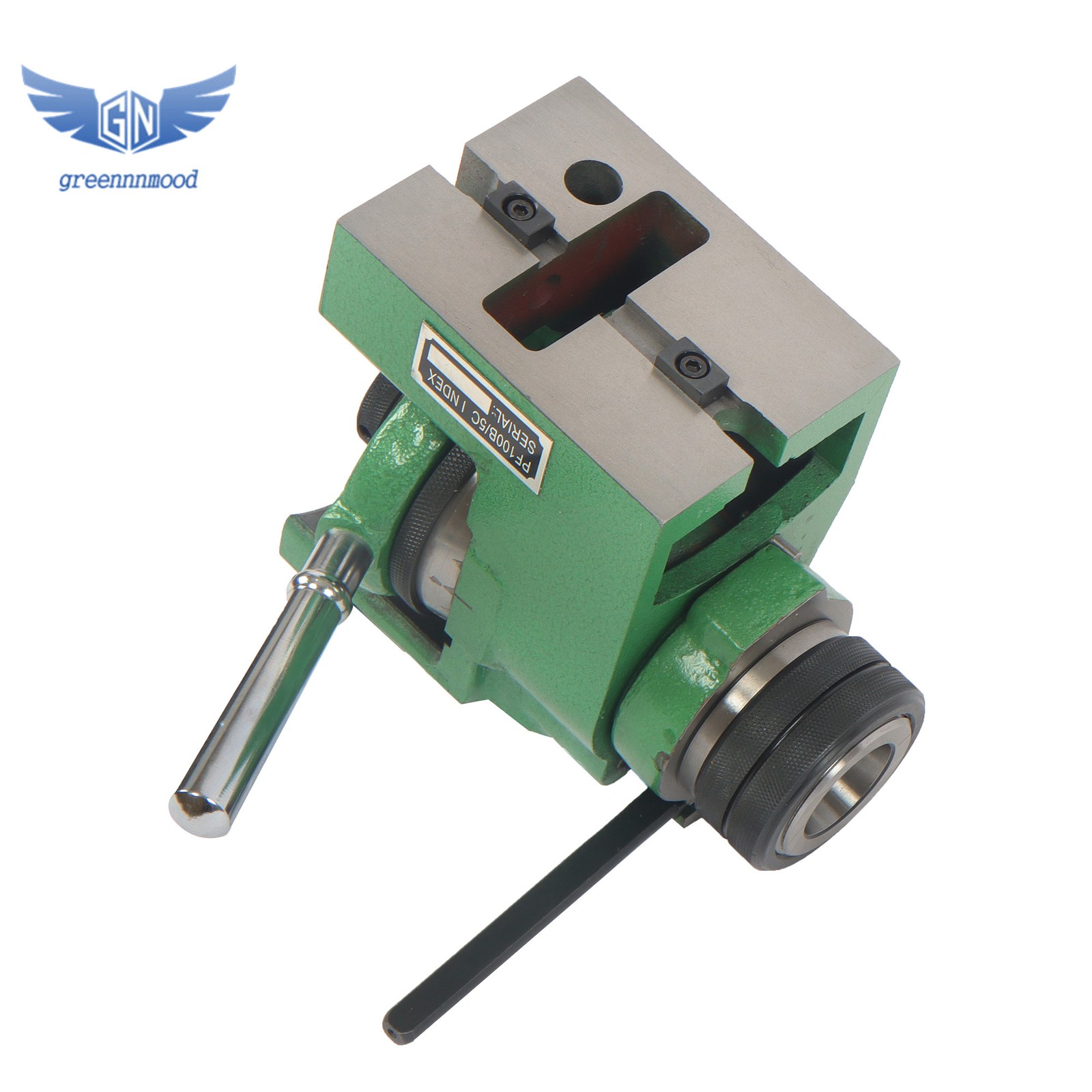

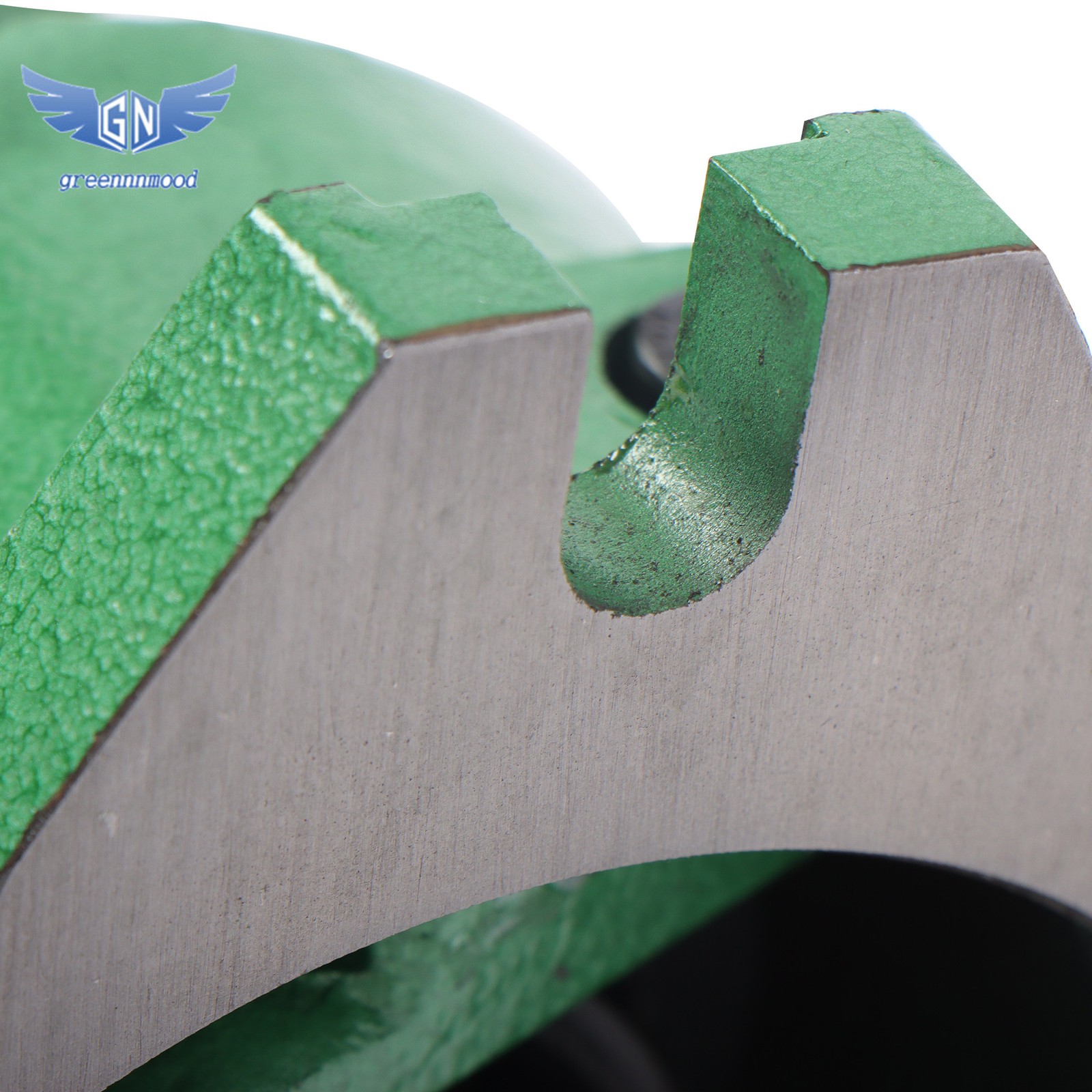

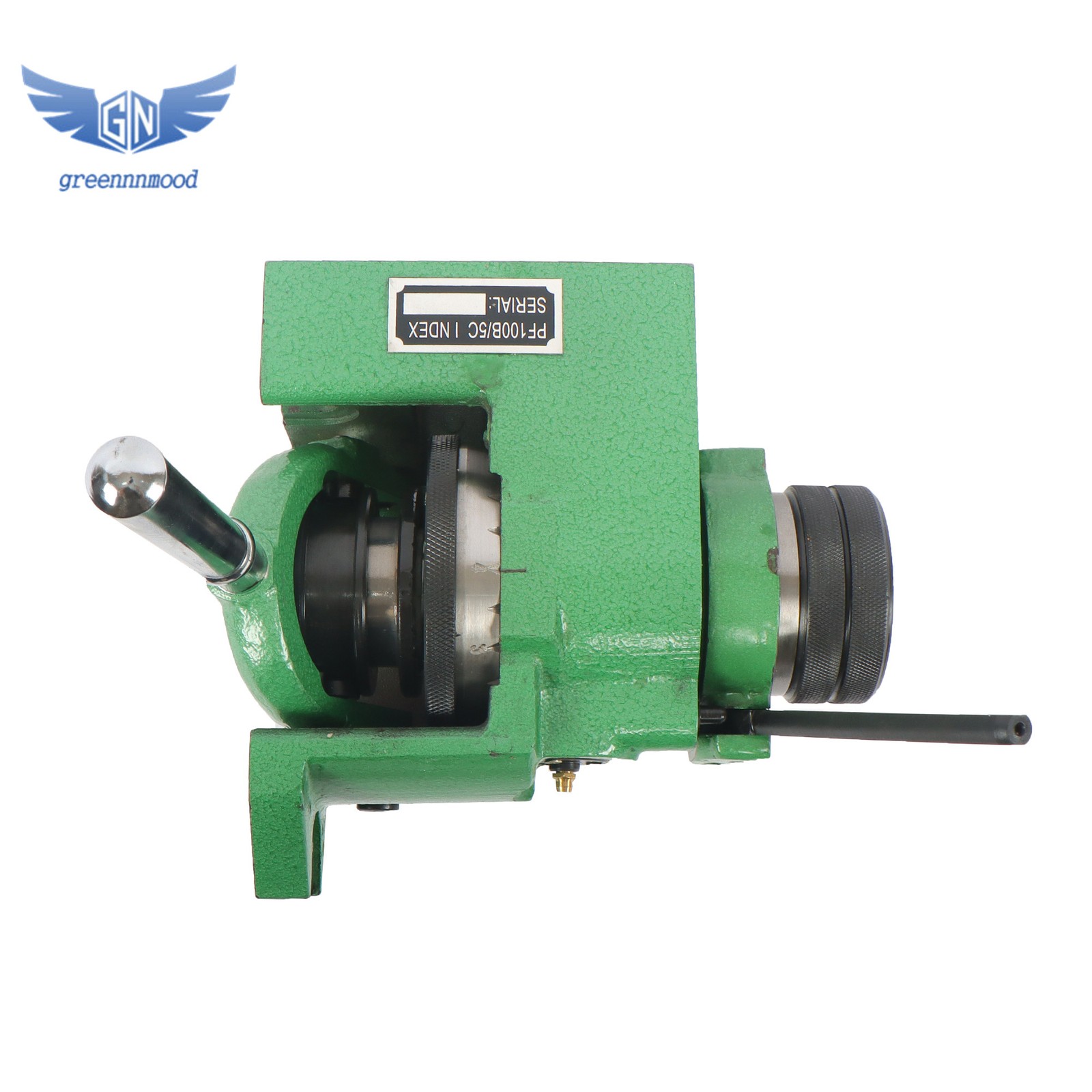

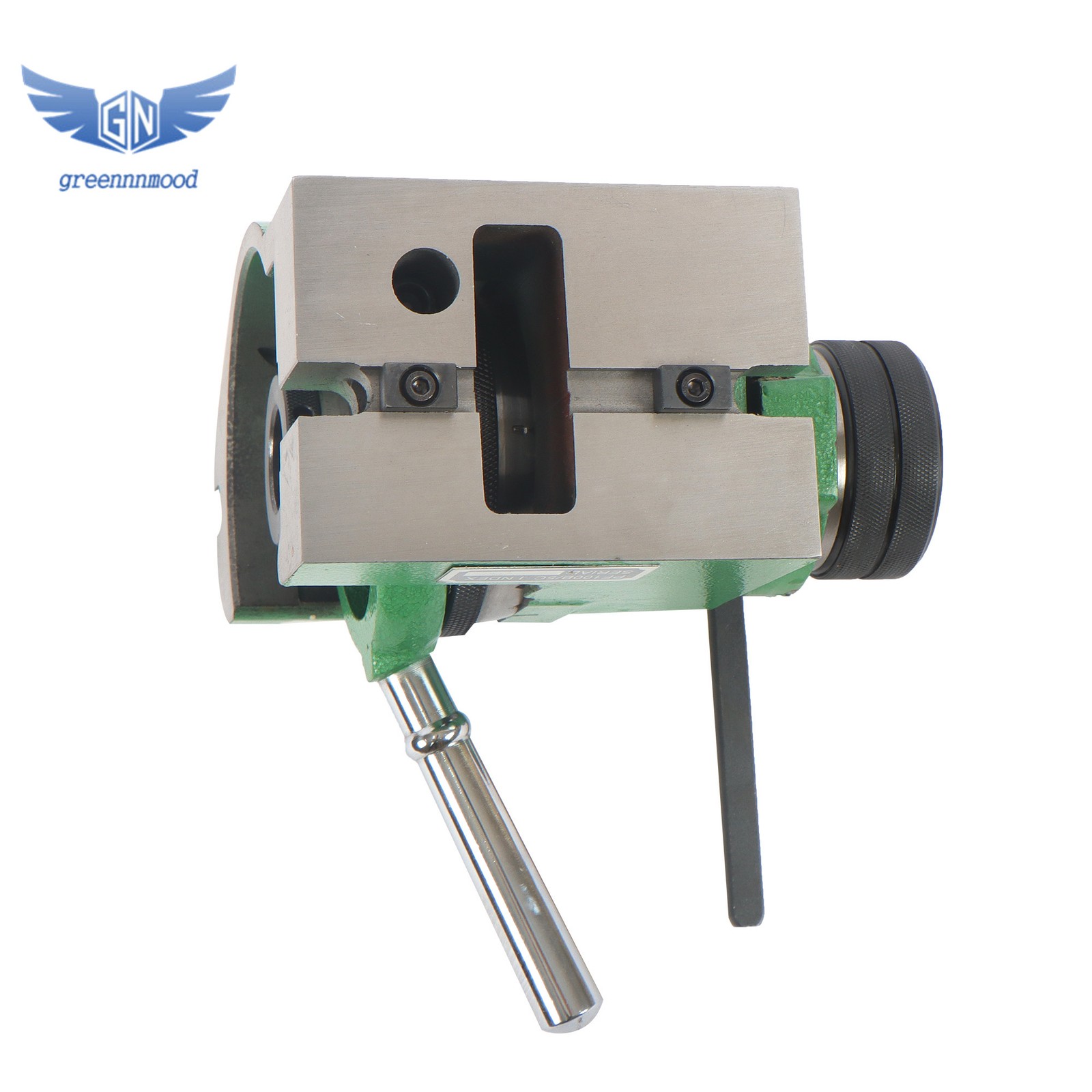

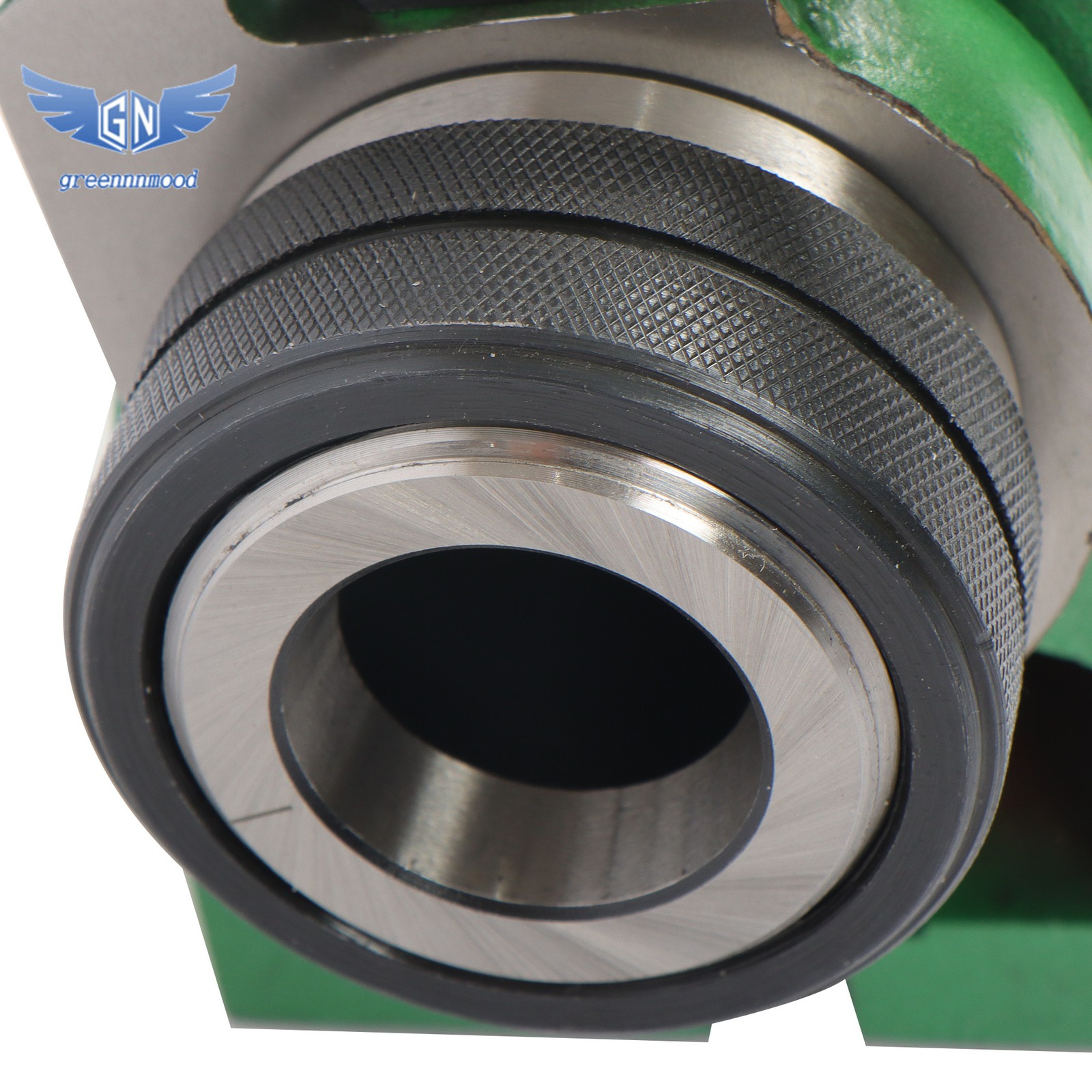

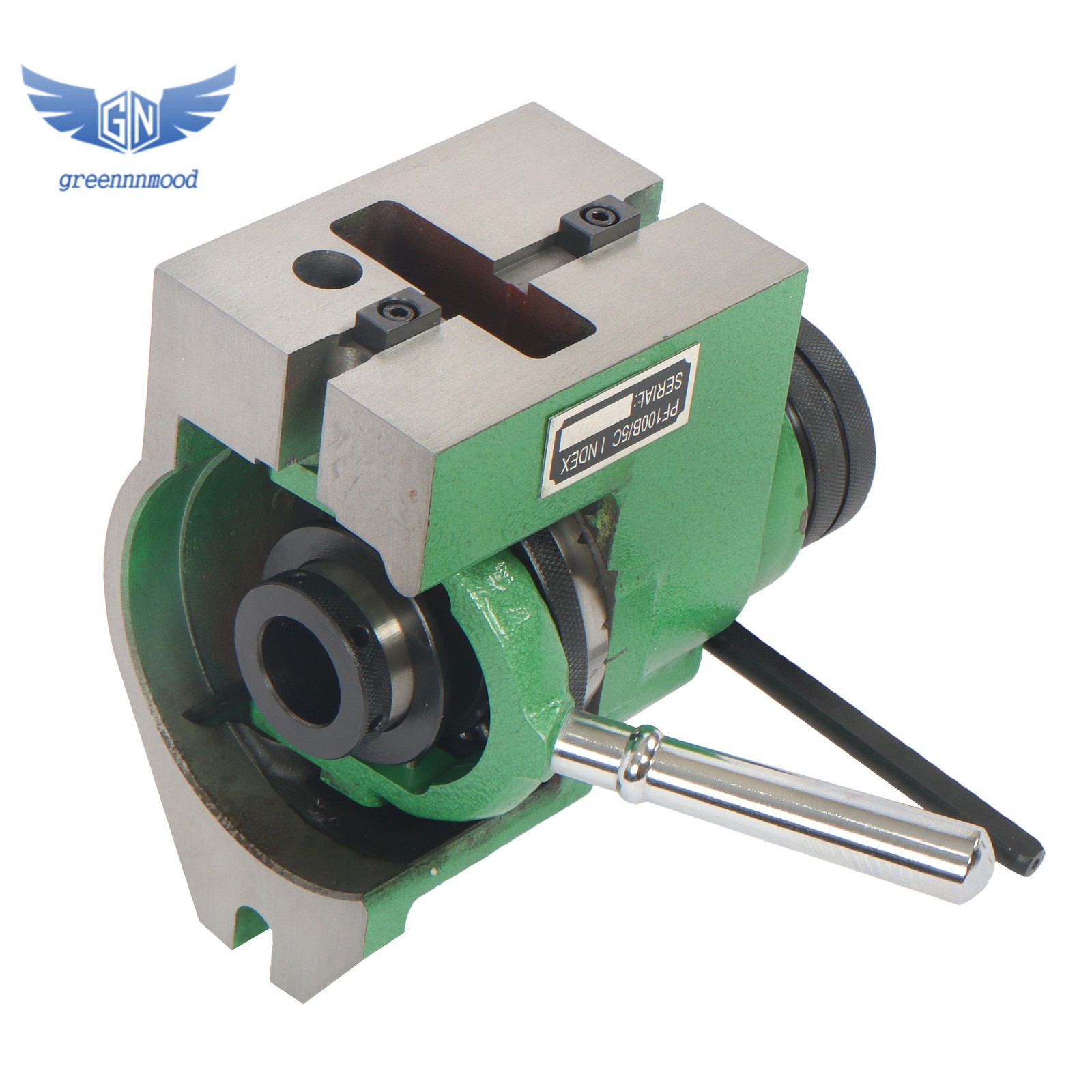

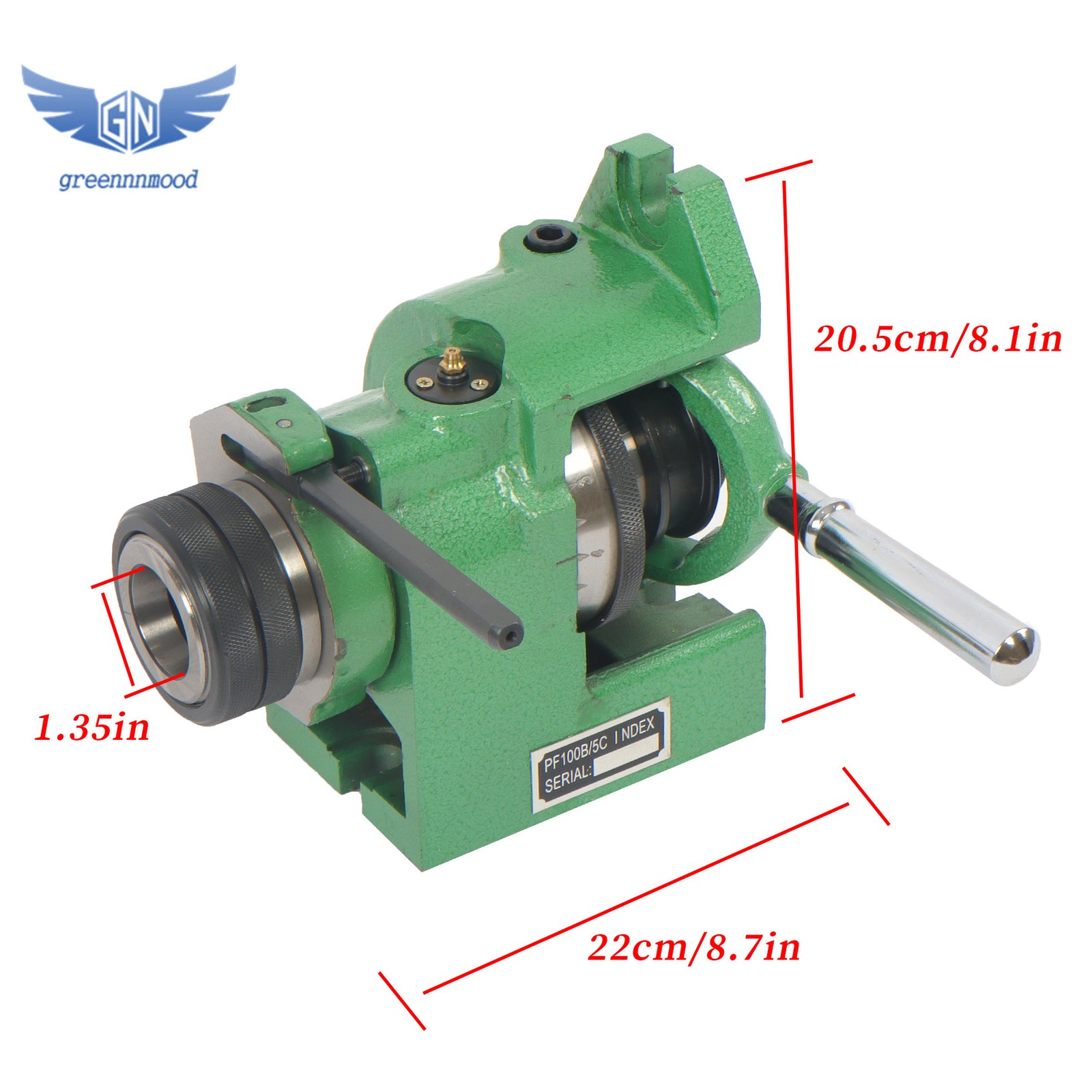

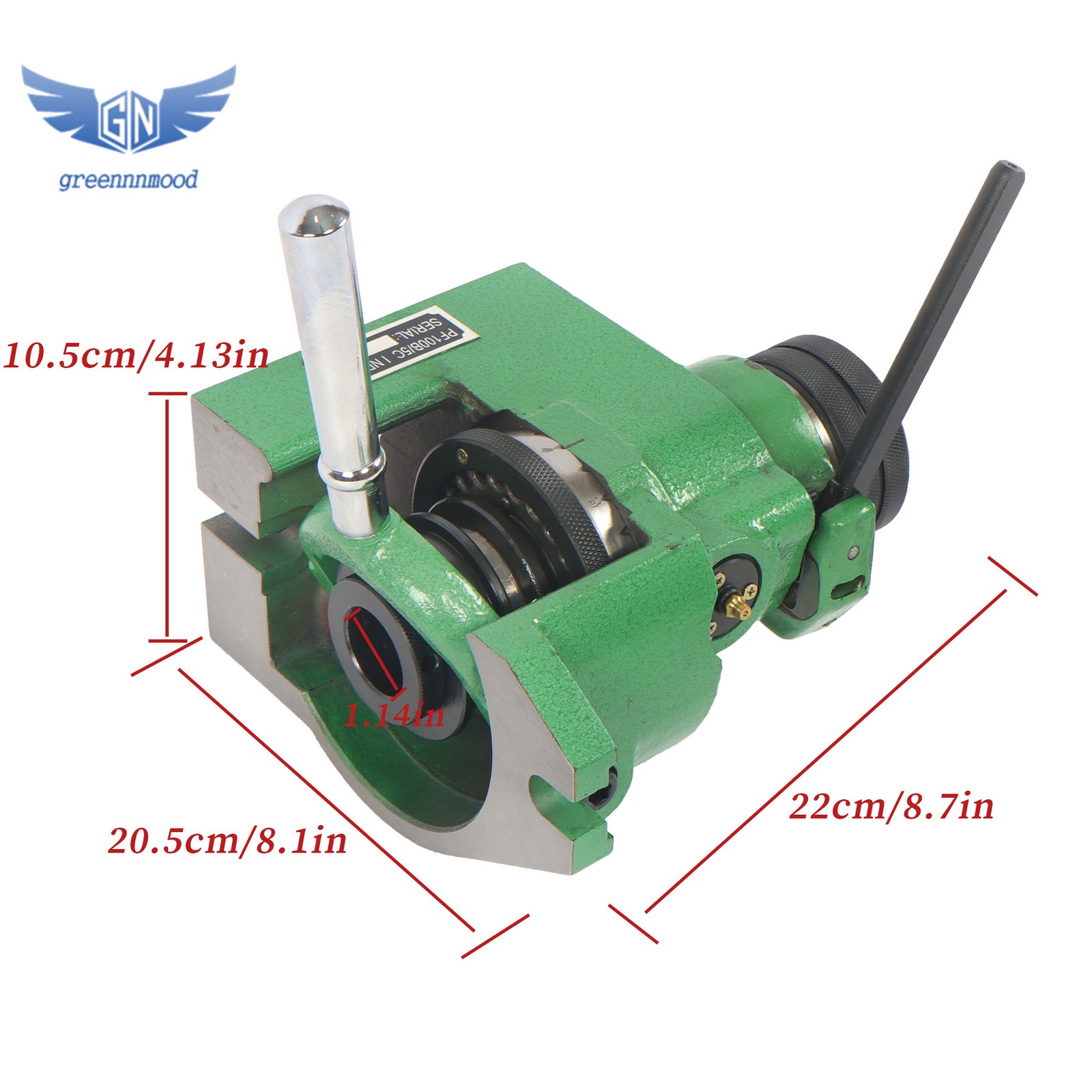

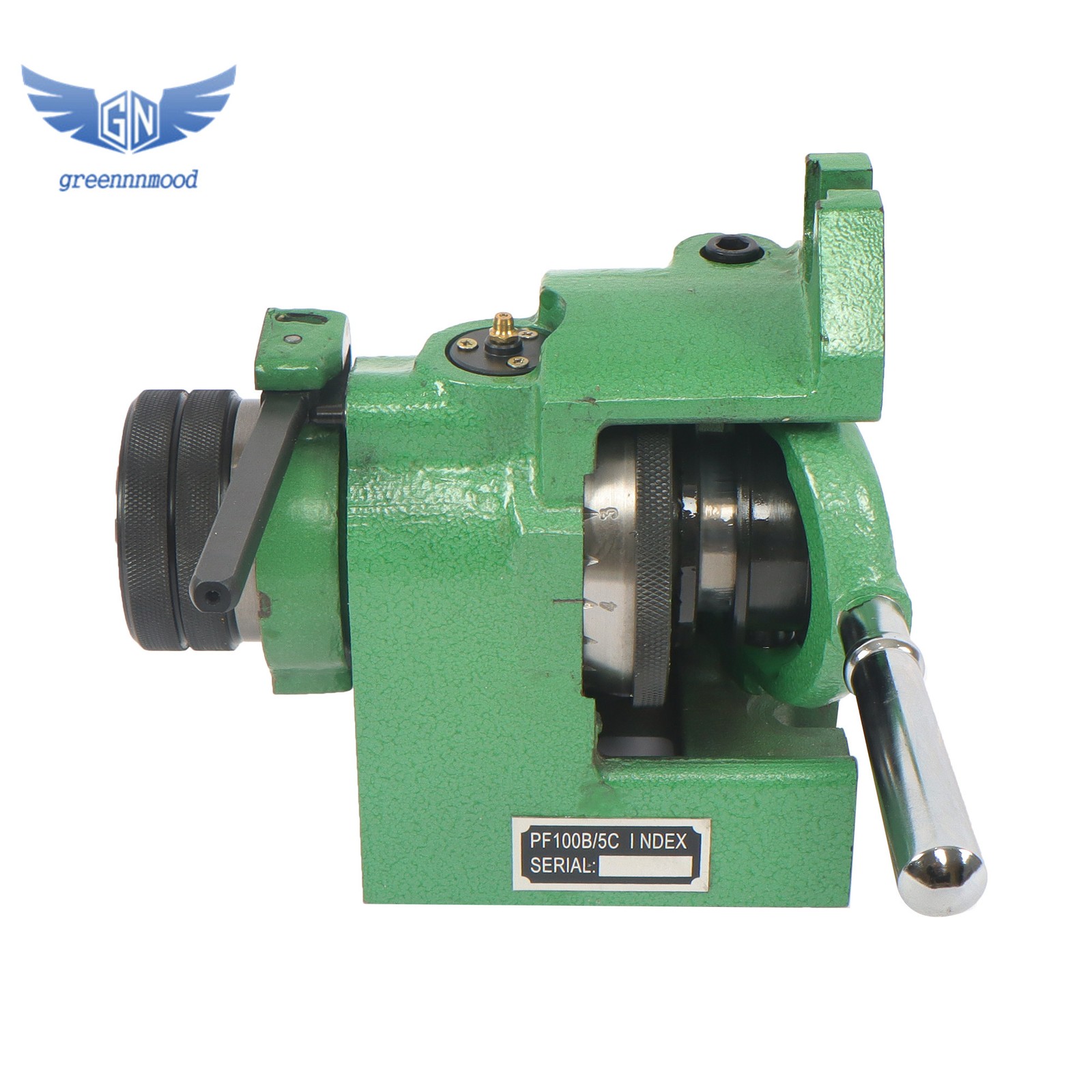

Check the listing for details. Vertical Horizontal 5C Collet Spin Index Fixture Milling New. Condition: New. Listed at 285.00 USD. Specification: Fixture Style: Spin Index Fixture Spindle thread: 2-1/4 -8 TPI Spindle accuracy: .0004" TIR Dividing spindle concentricity: .0004" Cylindrical center bore (per 1") concentricity: .0008" Lateral offset of center slot of dividing spindle: .0008" Center slot to dividing spindle concentricity: .0008" Spindle center line parallelism: .0008" Base to face Squareness: .0008" Unit Weight: 13 LBS Quantity: 1 .
