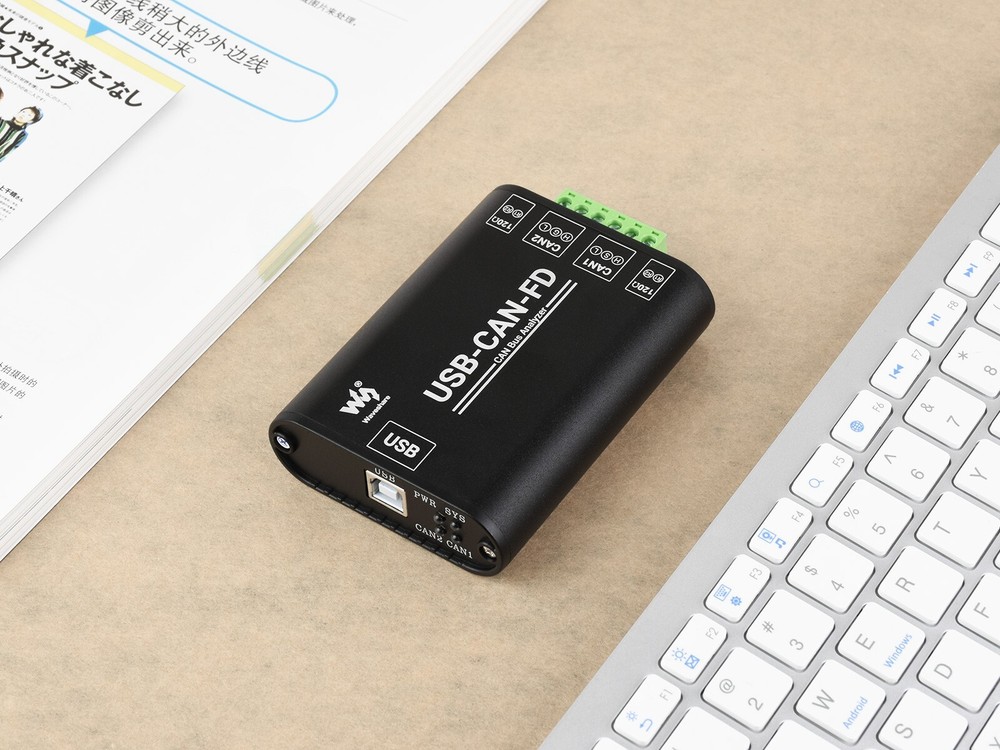

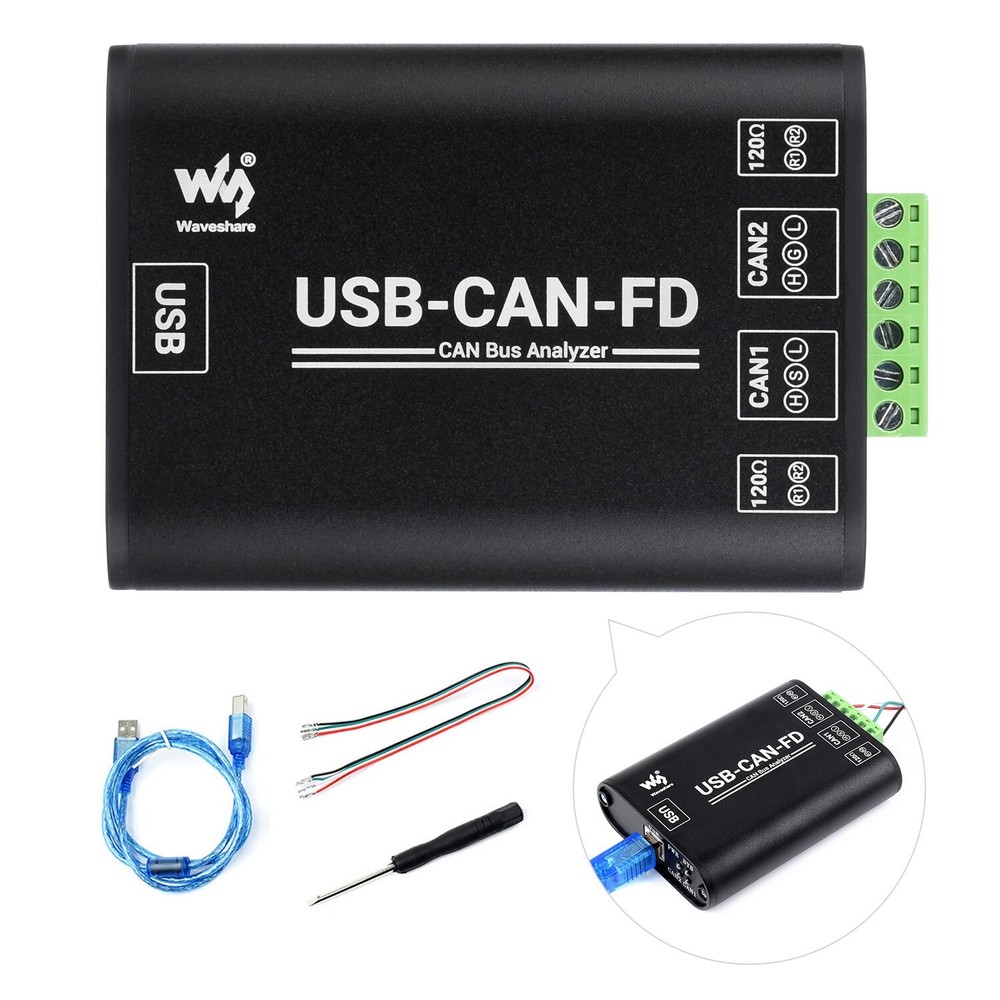

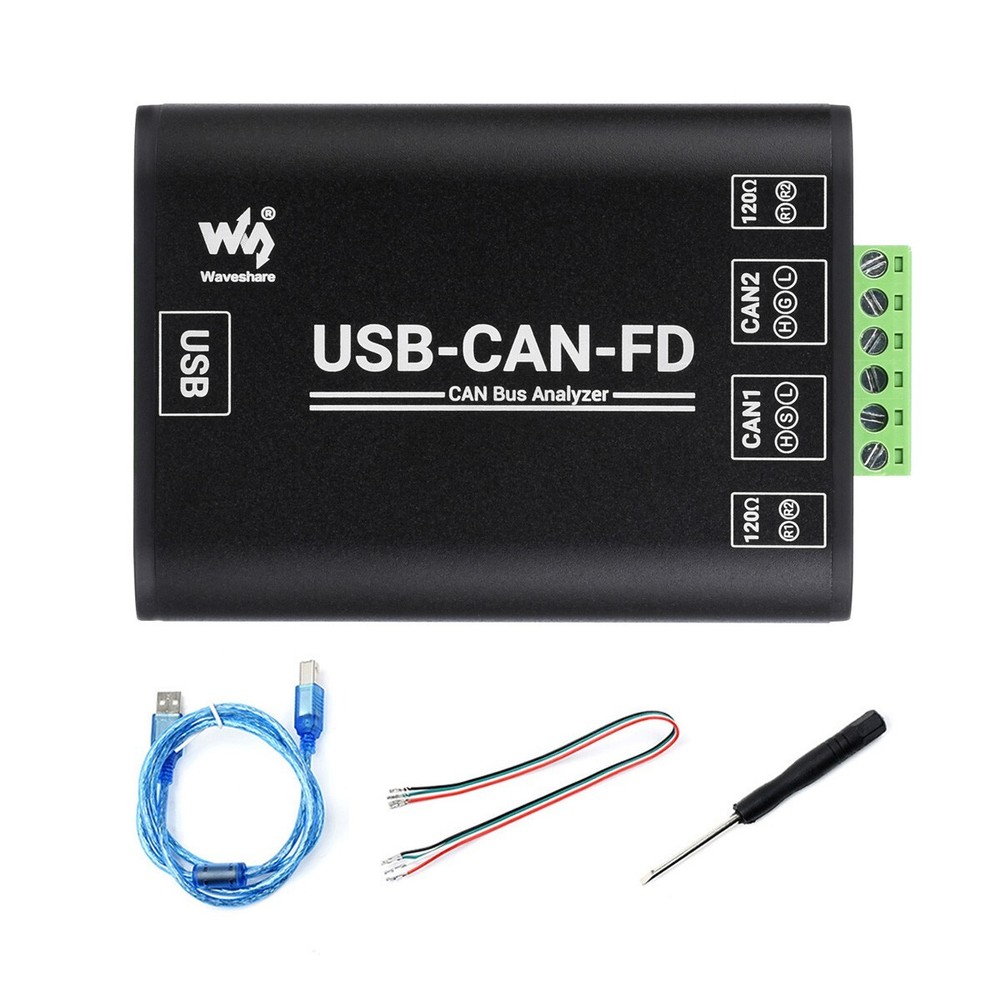

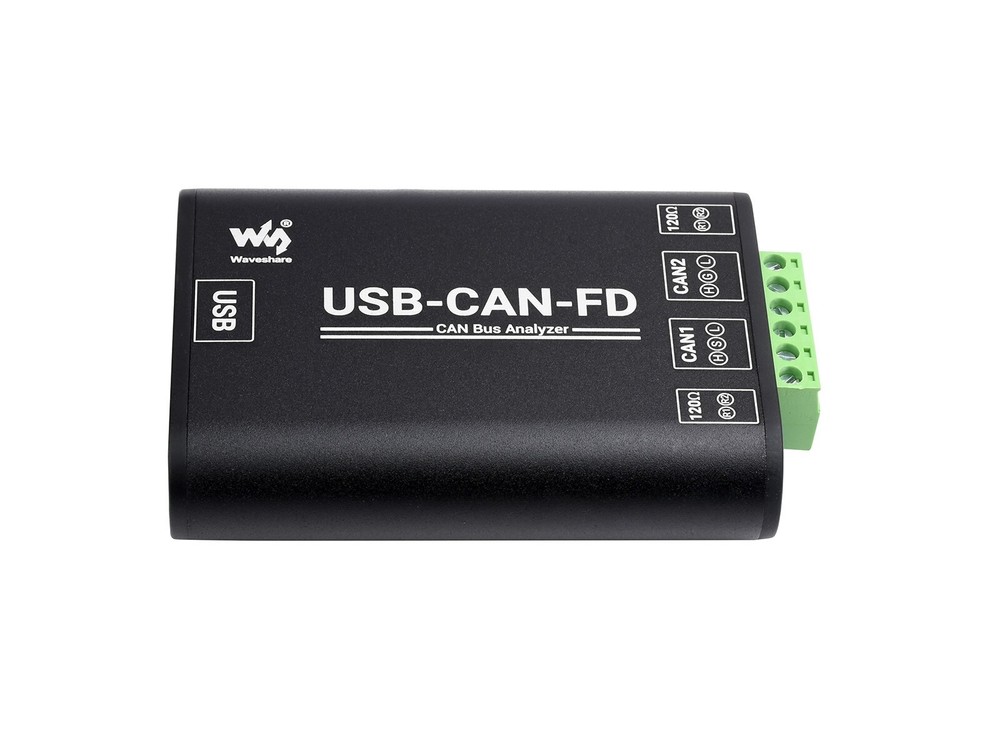

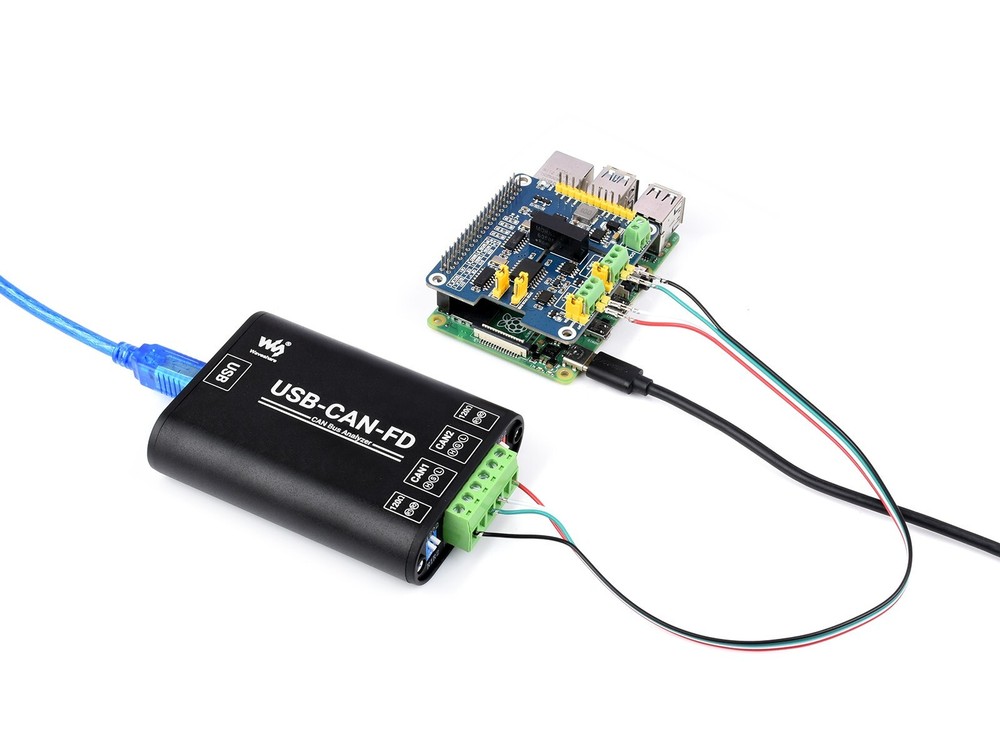

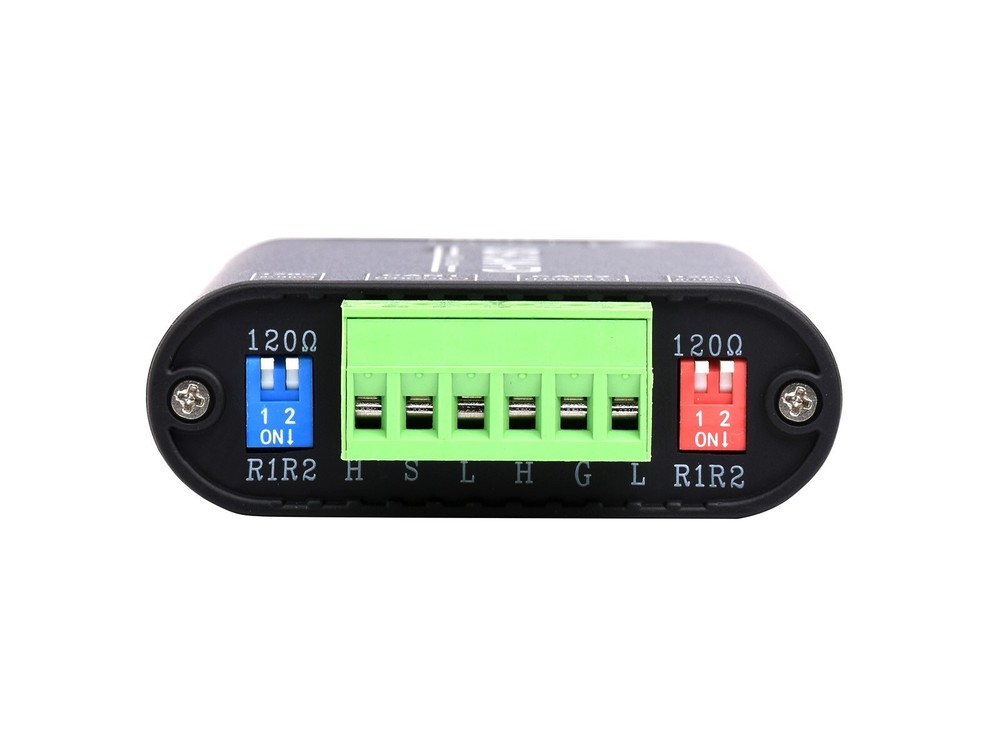

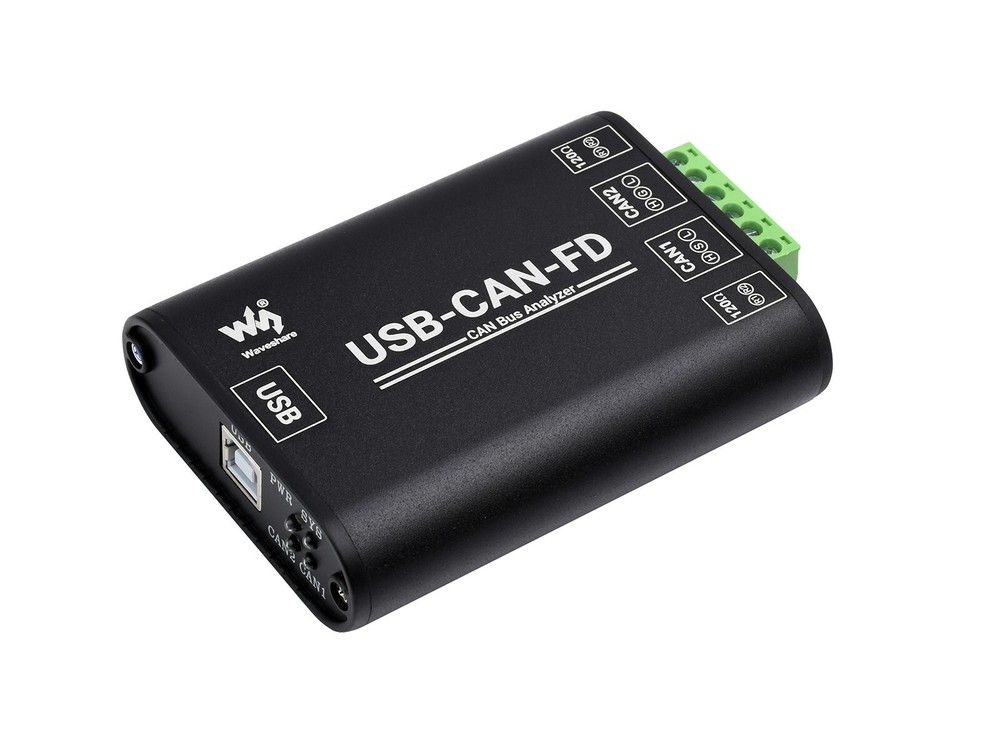

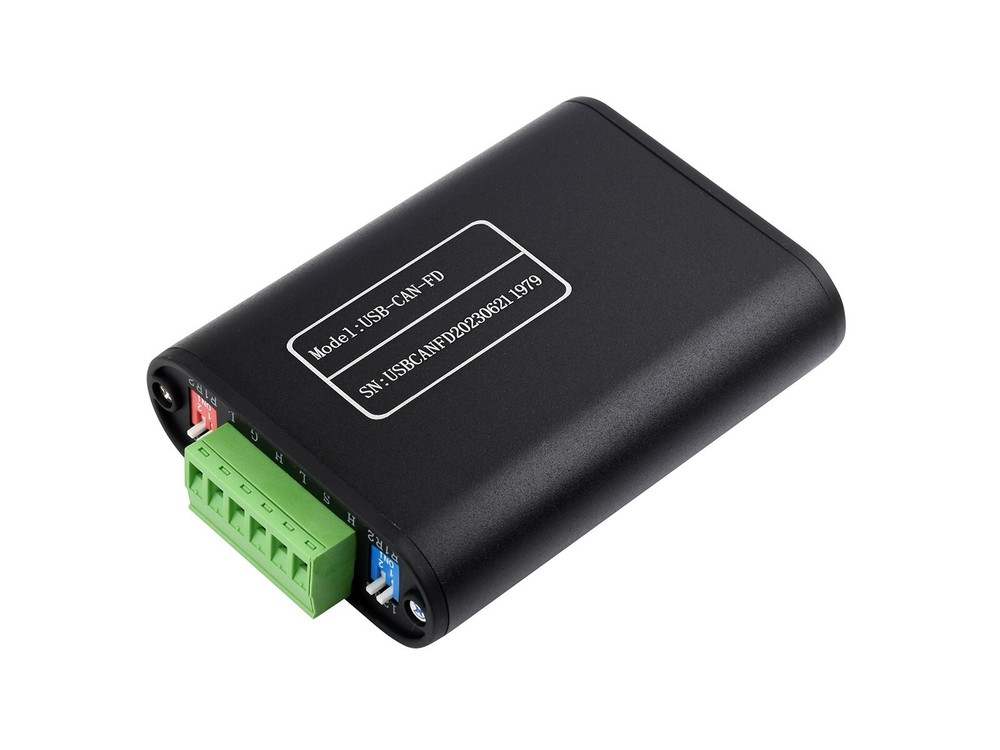

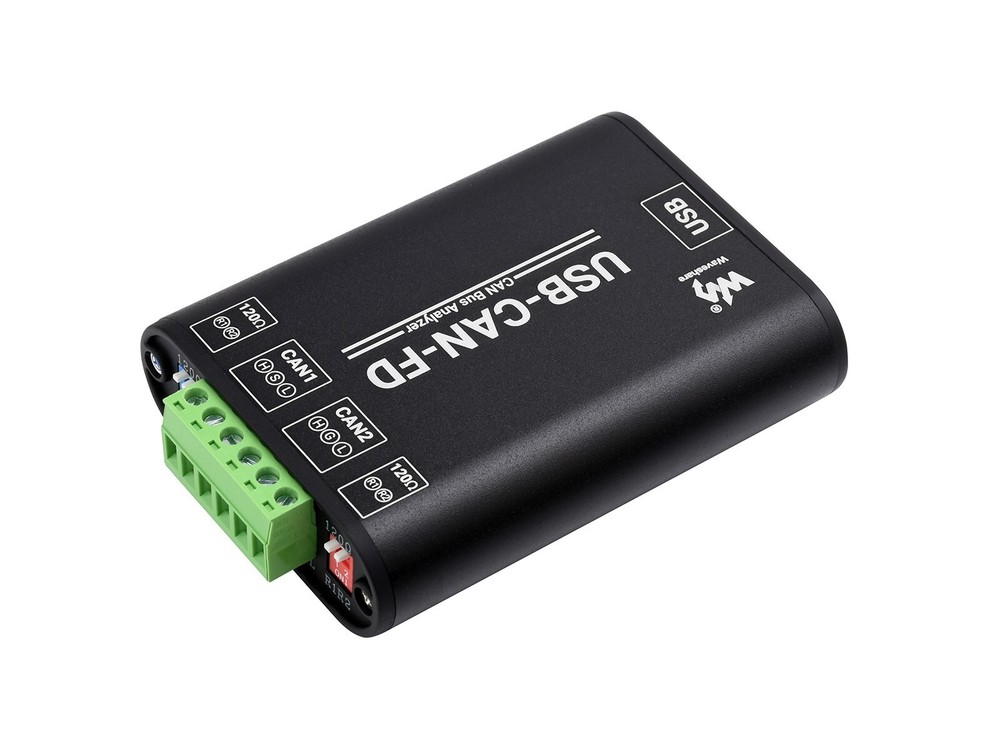

Check the listing for details. Waveshare Industrial Grade CAN/CAN FD Bus Data Analyzer USB To CAN FD Adapter. Condition: New. Listed at 79.97 USD. Description Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus Communication Interface Card, CAN/CAN FD Protocol Data AnalyzerIndustrial Grade CAN/CAN FD Bus AdapterSupports high-speed CAN FD and CAN2.0A/B data communicationVersion OptionsUSB-CAN-FDSupports Windows system USB-CAN-FD-BSupports Windows and Linux systemsThe USB-CAN-FD only supports Windows XP/7/8/10/11 and does not support Linux systems.The USB-CAN-FD-B is an upgraded version of the USB-CAN-FD with Linux systems support, including Raspberry Pi OS (for Raspberry Pi), Ubuntu (for Jetson Nano), and Linux system on VMware virtual machines, etc.Features at a glanceThis product is an industrial-grade high-performance USB to CAN FD adapter, CAN/CAN-FD bus communication interface card, and CAN/CAN-FD protocol data analyzer. Onboard dual independent CAN FD interfaces with electrical isolation and multiple protection circuits. Comes with drivers, CAN FD Tools related software, secondary development examples, and tutorials.It can be connected to the PC or industrial control host via a USB port to realize transceiver control, data analysis, collection and monitoring of CAN/CAN FD bus network. It is compact in size and easy to use, which can be used for learning and debugging of CAN/CAN FD bus, as well as for secondary development and integration into various industrial, power communication, and intelligent control applications that require CAN/CAN FD bus communication.SpecificationsProductModelUSB-CAN-FDUSB-CAN-FD-BPictureTypeIndustrial grade: USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, CAN/CAN FD protocol data analyzerUSBOperating voltage5V (directly powered by USB port without external power supply)ConnectorUSB-BCAN/CAN FD interfaceCAN/CAN FD channelDual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC)ConnectorCAN bus screw terminal (OPEN6 5.08mm pitch)Terminal resistorEach CAN/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switchBaud Rate100Kbps~5Mbps (Configurable via software)Protocol SupportCAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0Transfer speedThe receiving and sending speed of each CAN/CAN FD channel can reach 20000 frames/s and 5000 frames/sTransmit buffer1500 frames receiving buffer and 64 frames sending buffer per channel (automatically retransmit when the transmission fails)IndicatorsPWRPower indicatorSYSSystem status indicator, normally off; keeps on when there is a bus errorCAN1CAN1 channel indicator (blinking when sending and receiving data)CAN2CAN2 channel indicator (blinking when sending and receiving data)System supportWindowsWindows XP/7/8/10/11 (32/64 bits)LinuxNot supportRaspberry Pi OS (for Raspberry Pi),Ubuntu (for Jetson Nano),Linux system on VMware virtual machines, etc.Operating temperature-40~85℃Case materialAluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life)Dimensions104 × 70 × 25 mmSupports Protocol ConversionBetween USB And CAN/CAN FD BusOnboard high-speed USB2.0 interface and 2-ch CAN/CAN FD Bus Interfaces, support bi-directional transmission, can work independently without interfering with each otherProgrammable Baud Rate, Automatic DetectionCAN baud rate is configurable in the range of 100Kbps~5MbpsSupports baud rate calculation, auto-detection, and setting via the configuration toolSupports Decoding and Analyzing formultiple CAN ProtocolsSupports CAN 2.0A, CAN 2.0B, ISO11898-1, and CAN FD Protocol Specification V.1.0, Supports Standard and Extended FramesSupports Multi Development EnvironmentsProvides examples for secondary development projects on various mainstream development platforms: C#, VC, Delphi, Qt, LabVIEW, Python/Python-canHigh-performance Hardware SolutionAdopts original controller and 32-bit MIPS M4K Core, up to 80MHz frequency, with high performance, stable and reliablewith electrical isolation and multipleprotection circuitsAdopts high-speed signal isolators, DC-DC dual power isolation, USB, CAN1 and CAN2 three-terminal full isolation, higher communication security and stabilityOne PC With Multiple DevicesSupports one PC to run multiple CAN FD analyzers at the same time without interfering with each other, up to 128 devices after testing. It is suitable for monitoring multiple CAN networks at the same time with one monitoring device, or for data comparison and verification and so on.Interface introductionApplication ScenariosApplication Example* for reference only, the Raspberry Pi 4B and 2-CH CAN FD HAT are Not included.Product showOutline dimensionsResources & Services Package Content Weight: 0.243 kgUSB-CAN-FDUSB-CAN-FD x1USB type A plug to type B plug cable x14pin cable x1Screwdriver x1USB-CAN-FD-BUSB-CAN-FD-B x1USB type A plug to type B plug cable x14pin cable x1Screwdriver x1
