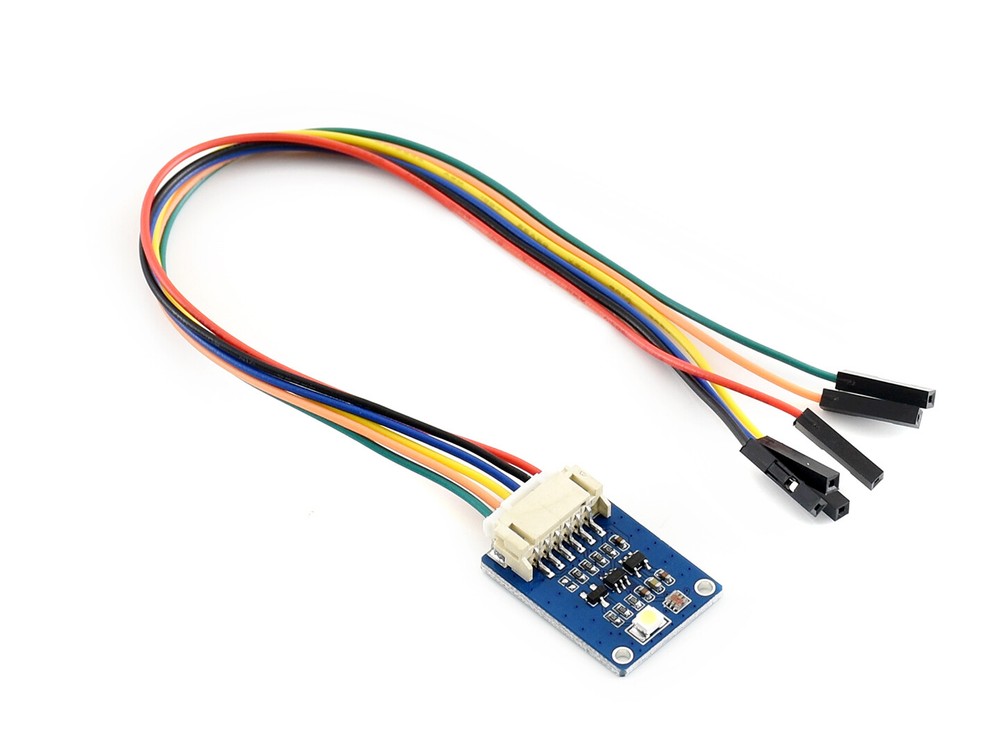

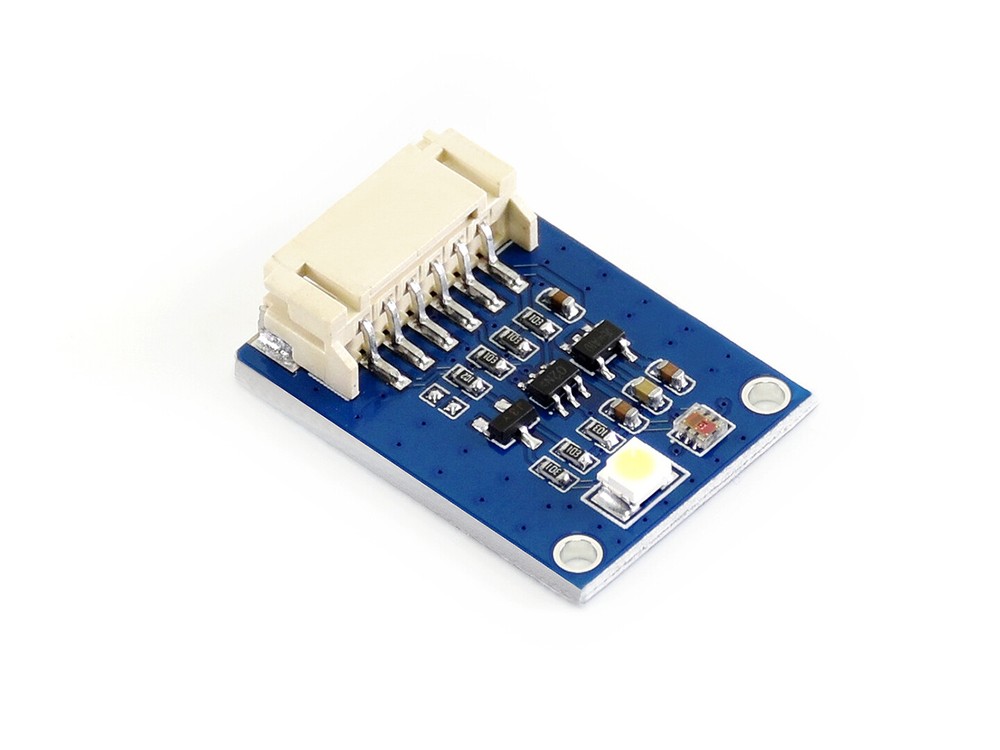

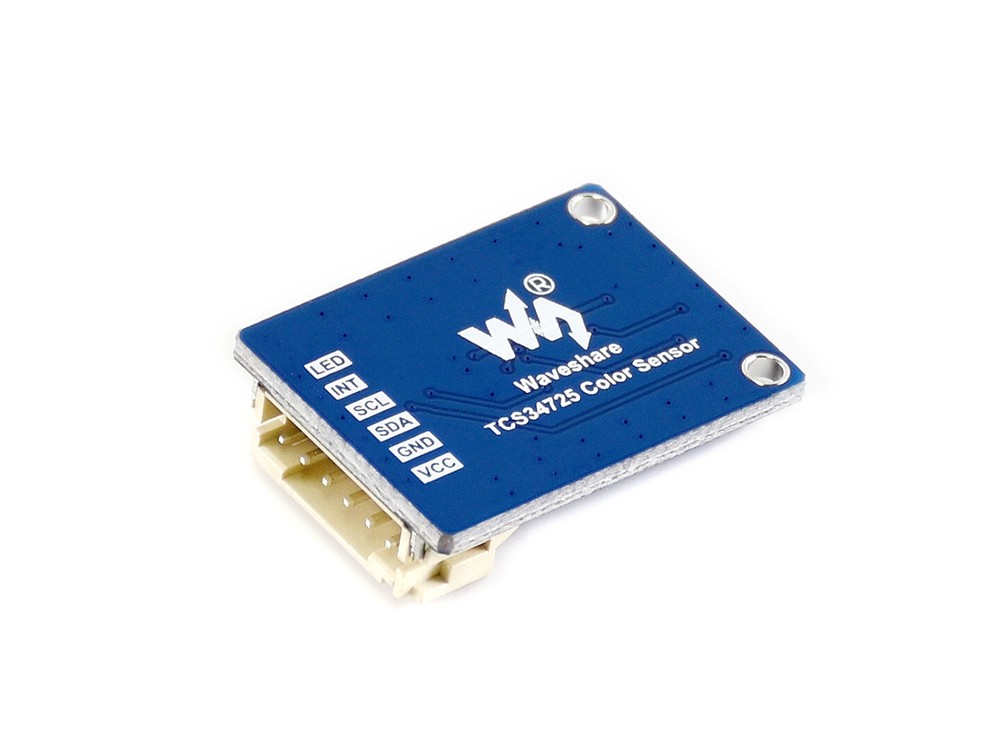

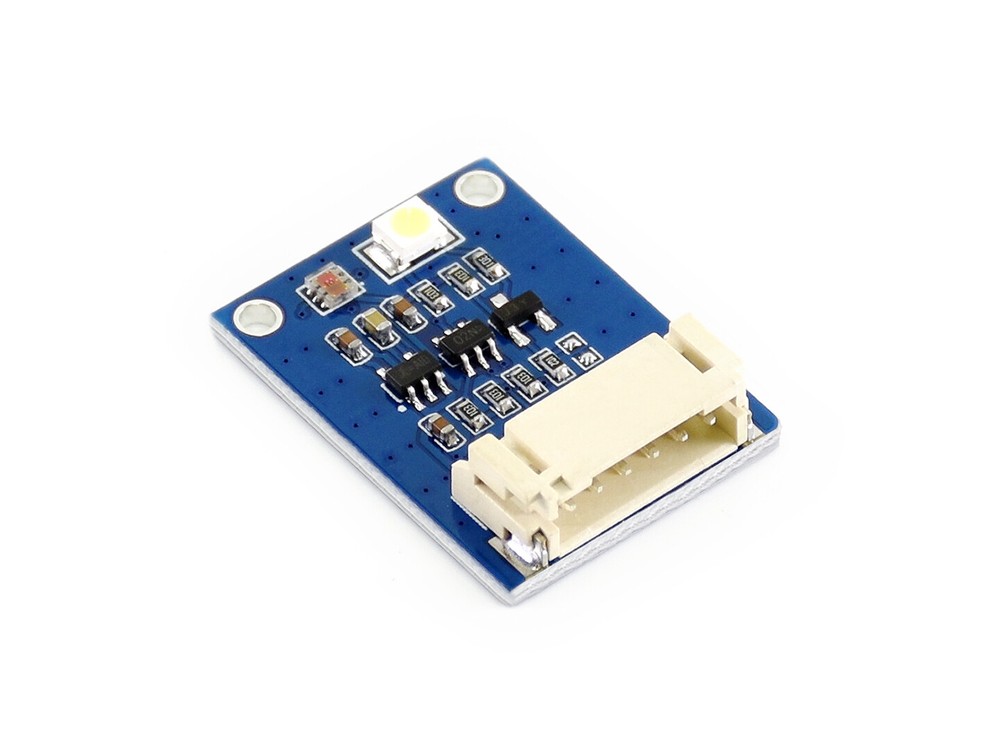

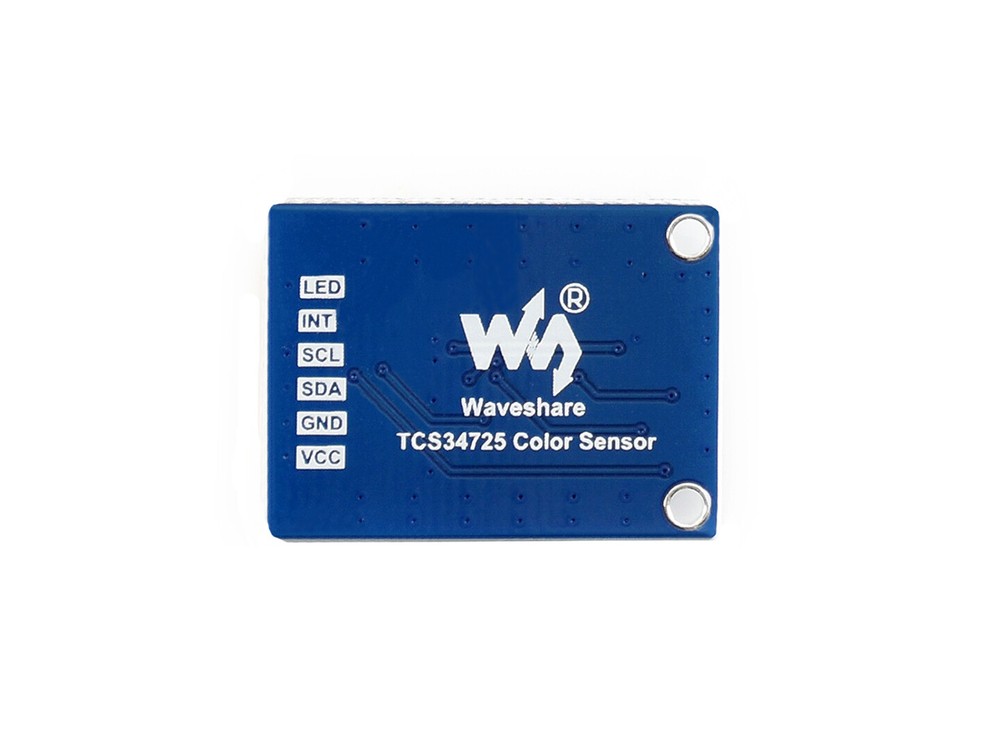

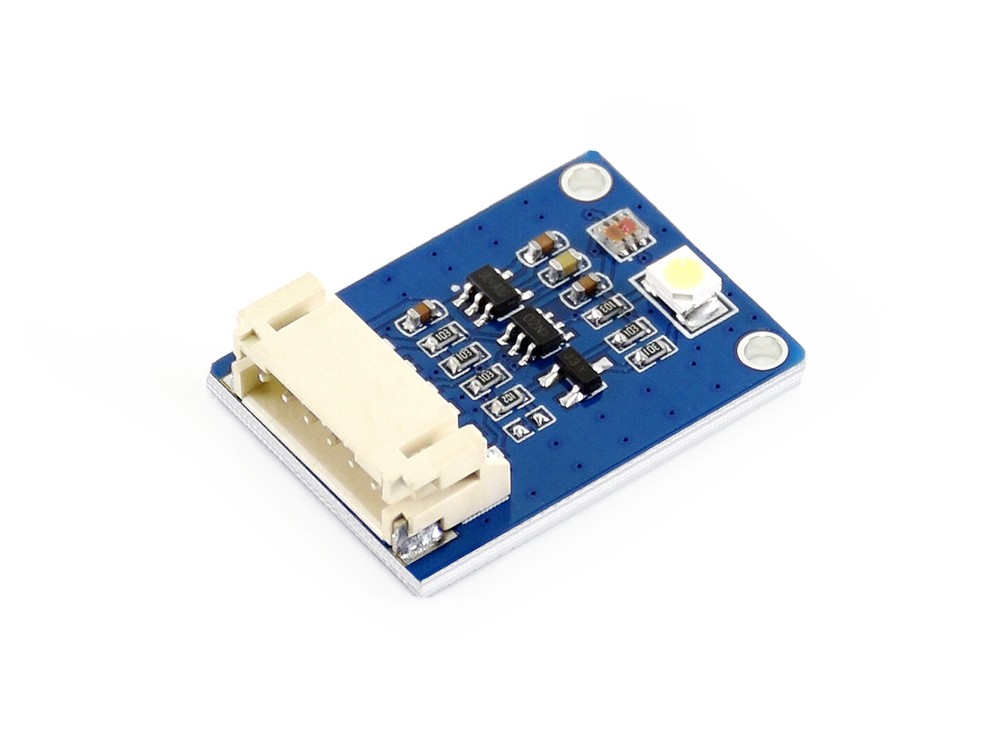

Check the listing for details. Waveshare TCS34725 Color Sensor High Sensitivity I2C Interface. Condition: New. Listed at 17.19 USD. This auction is for TCS34725 Color Sensor TCS34725 Color Sensor, High Sensitivity, I2C Interface Overview This is a color sensor module based on TCS34725, will output RGB data and light intensity through the I2C interface. Its advantages include high sensitivity, wide dynamic range, accurate measuring, etc. Features Onboard TCS34725FN, embedded ADC, high sensitivity, wide dynamic range I2C communication, uses a few pins Integrates IR blocking filter, minimizes the IR spectral component of the incoming light Outputs RGB data without white balance Outputs light intensity, feels the light like human eyes Supports light intensity interrupt output, programmable upper and lower thresholds Supports fill-light by onboard LED, adjustable brightness by PWM Onboard voltage level translator, compatible with 3.3V/5V operating voltage Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) Specifications Sensor: TCS34725FN Communication interface: I2C Operating voltage: 3.3V/5V Dimension: 27mm × 20mm Resolution: 4-ch RGBC, 16-bit per ch Recommended measuring distance: 2mm Applications Sorting by color Ambient light sensing and calibration Products color identification and classification Interface PIN DESCRIPTION VCC 3.3V/5V power input GND ground SDA I2C data input SCL I2C clock input INT Interrupt output (open drain output) LED Light emitting diode Dimension Development Resources Wiki: www.waveshare.com/wiki/TCS34725_Color_Sensor Package Contains TCS34725 Color Sensor x1 PH2.0 6PIN wire 20cm x1 1 2 Terms & Conditions Payment: · Paypay is the only payment method we currently accept. If you want to pay by other way, please contact with us directly. Shipping: · All items will be shipped within 48 hours after receiving your payment. · Please make sure your delivery details are correct,especially the Address,Zip Code and Tel Number. · Your order will be shipped according to the service you choose, if you choose Standard Shipping, your package will be shipped by epacket/Singapore Post/Deutsche Post/SpeedPak, etc, if you choose Expedited Shipping, your package will be shipped by e-EMS, DHL, Fedex, etc. we will choose the best logistice method for you, all orders can be tracked with a tracking number. Feedback: · Your shopping experience is very important to us and our business. We would like to invite you to leave positive feedback on our products and service if you are satisfied with our total service as well as our products,it is also a great way to help others make purchases like yours! · If you are unsatisfied with any aspect of our service, please contact us first so we can try to resolve your problem. Others: · Any question, you are always welcome to contact with us directly, we will reply you asap.
