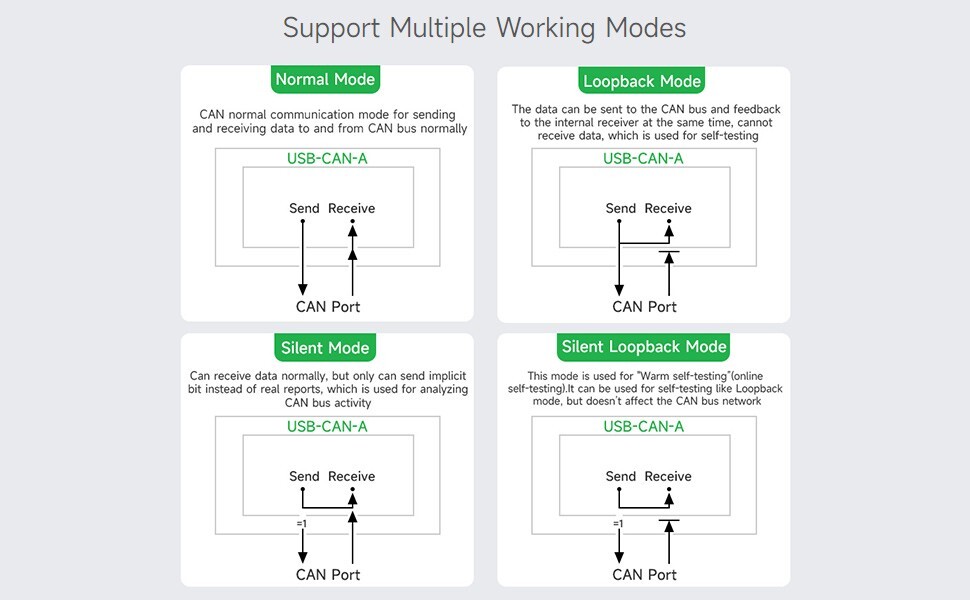

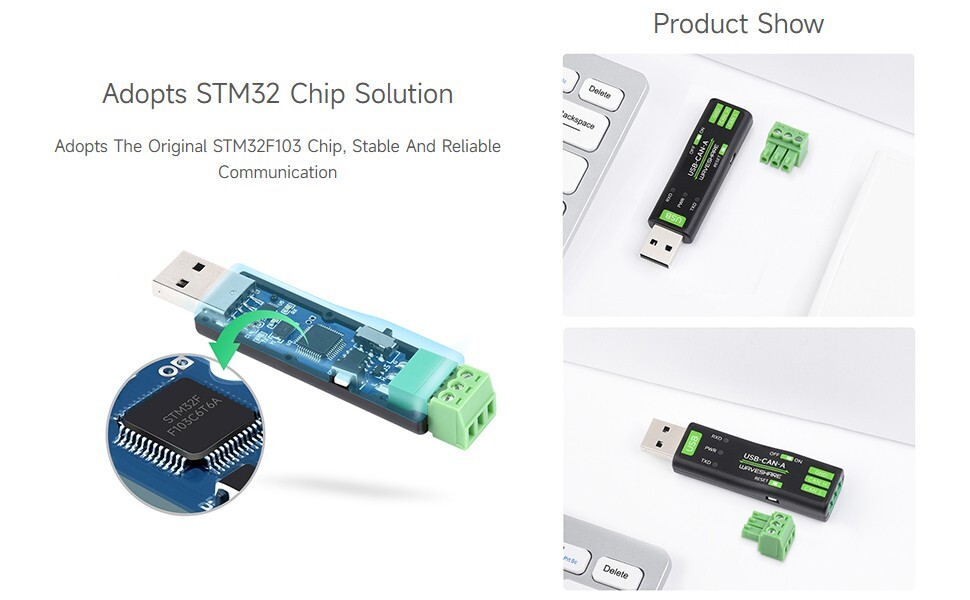

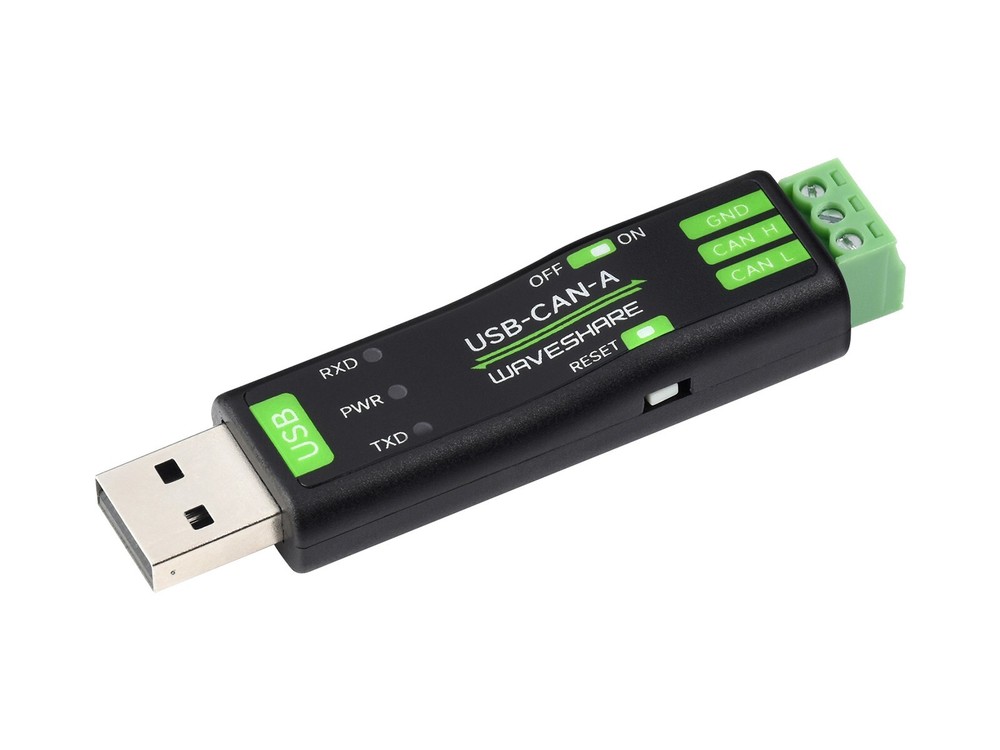

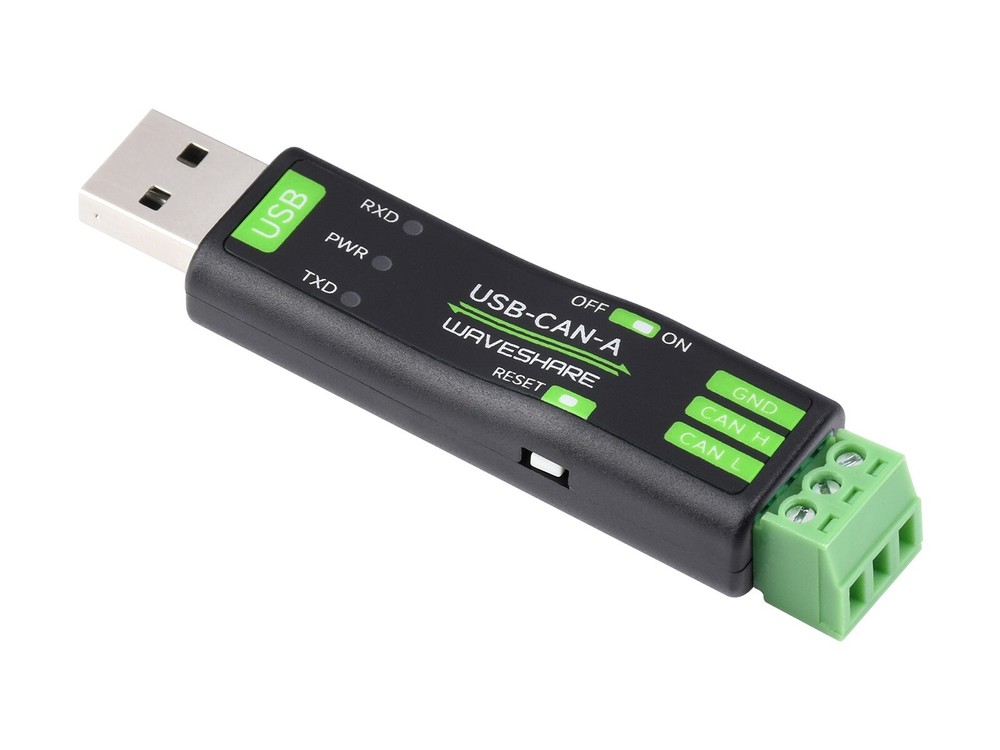

Check the listing for details. Waveshare USB to CAN Adapter Model A STM32 Chip Solution Multiple Working modes. Condition: New. Listed at 23.73 USD. DESCRIPTION USB To CAN Adapter Model A, STM32 Chip Solution, Multiple Working Modes, Multi-System CompatibleUSB To CAN Adapter Model ASTM32 Chip Solution, Multi-System Compatible, Multiple Working Modes Features At A GlanceSupports CAN2.0A (standard frame) and CAN2.0B (extended frame)CAN baud rate is configurable in the range of 5Kbps-1MbpsSupports 4 working modes: normal mode, loopback mode, silent mode, silent loopback modeSupports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sendingSupports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured dataData can be saved as TXT or ExcelSupports CAN bus detection for status checkingSending/receiving CAN data with time scale, allows sequentially displayingBaud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default)Supports setting working parameters by configuration software or serial command, can be saved after power offAdopts STM32 chip solution, stable and reliable communicationOnboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuitComes with master computer software for Windows system, easy to useEasy secondary development, just need to modify the sending and receiving commandsVersion UpgradePrimary FunctionsCollects Data From CAN Bus To PC Via USB For Transceiver Control, Data Analysis,Acquisition And Monitoring Of CAN Bus NetworkCAN Baud Rate ConfigurableCAN Baud Rate Is Configurable In The Range Of 5Kbps-1MbpsSupport Windows And Linux SystemSupport Windows XP/7/8/10/11 And Linux Systems Such As Raspberry Pi OS And Ubuntu Under Jetson Nano, Support Secondary DevelopmentSupport Multiple Working ModesAdopts STM32 Chip SolutionAdopts The Original STM32F103 Chip, Stable And Reliable CommunicationInterfaces IntroductionProduct ShowOutline Dimensions PACKAGE CONTENT Weight: 0.008 kgUSB-CAN-A x1USB Cable ~1.5m x1Screwdriver x1123
