| Brand | CZH-LABS |
|---|---|
| Maximum Switching Current | 20 Amps |
| Maximum Switching Voltage | 30 Volts |
| Minimum Switching Voltage | 3 Volts |
| Current Rating | 10 Amps |
| Brand Name | OONO |
| Mounting Type | Screw Mount |
| Part Number | F-1049 |
| Contact Current Rating | 10 Amps |
| Number of Terminals | 2 |
| Wattage | 300 watts |
| Coil Voltage | 32 Volts (DC) |
| Connector Type | Screw |
| Operation Mode | Automatic |
| Contact Type | Normally Open |
| Model | F-1049 |
| Coil Resistance | 8 Milliohms |
| Manufacturer | CZH-LABS |
| UPC | 744759273109 |

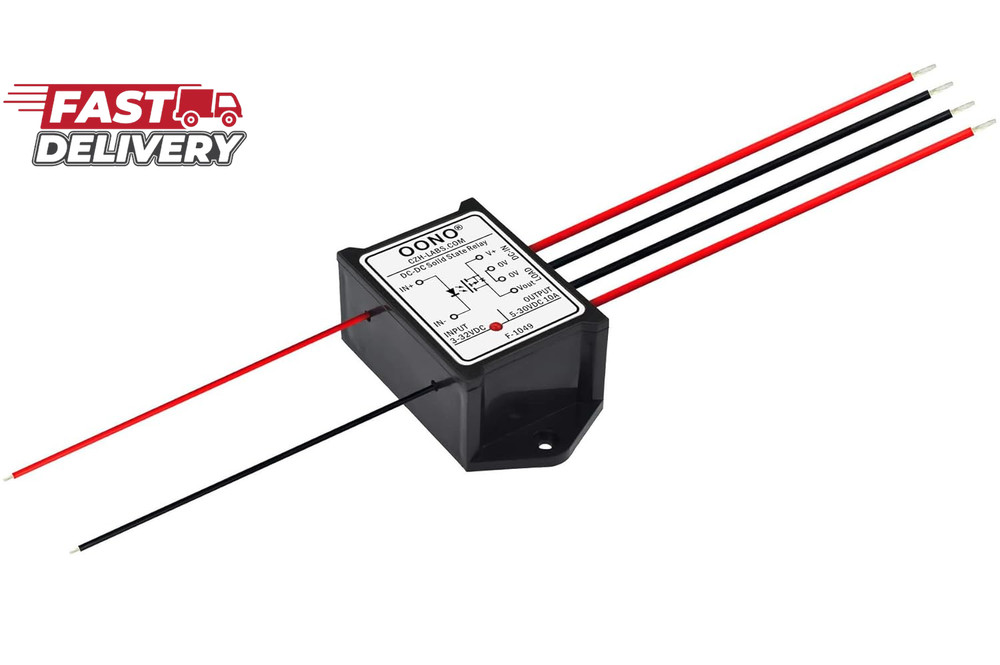

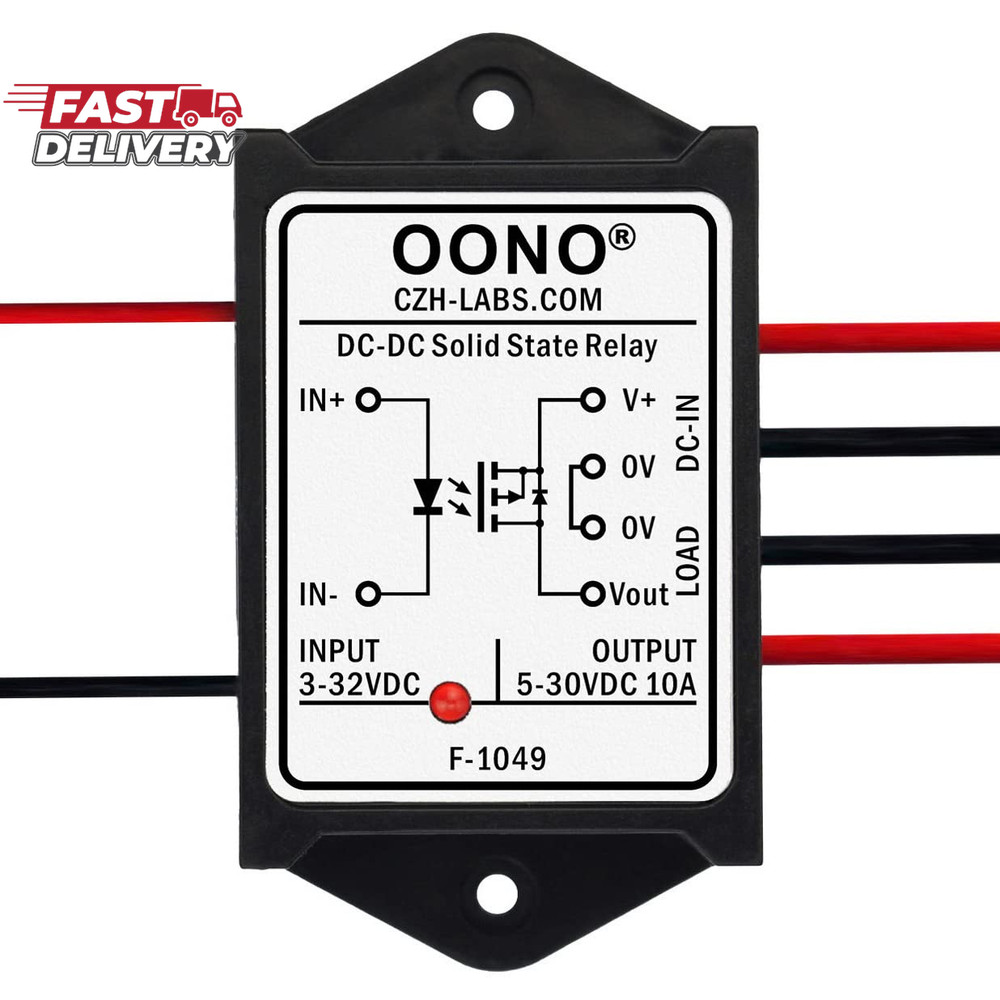

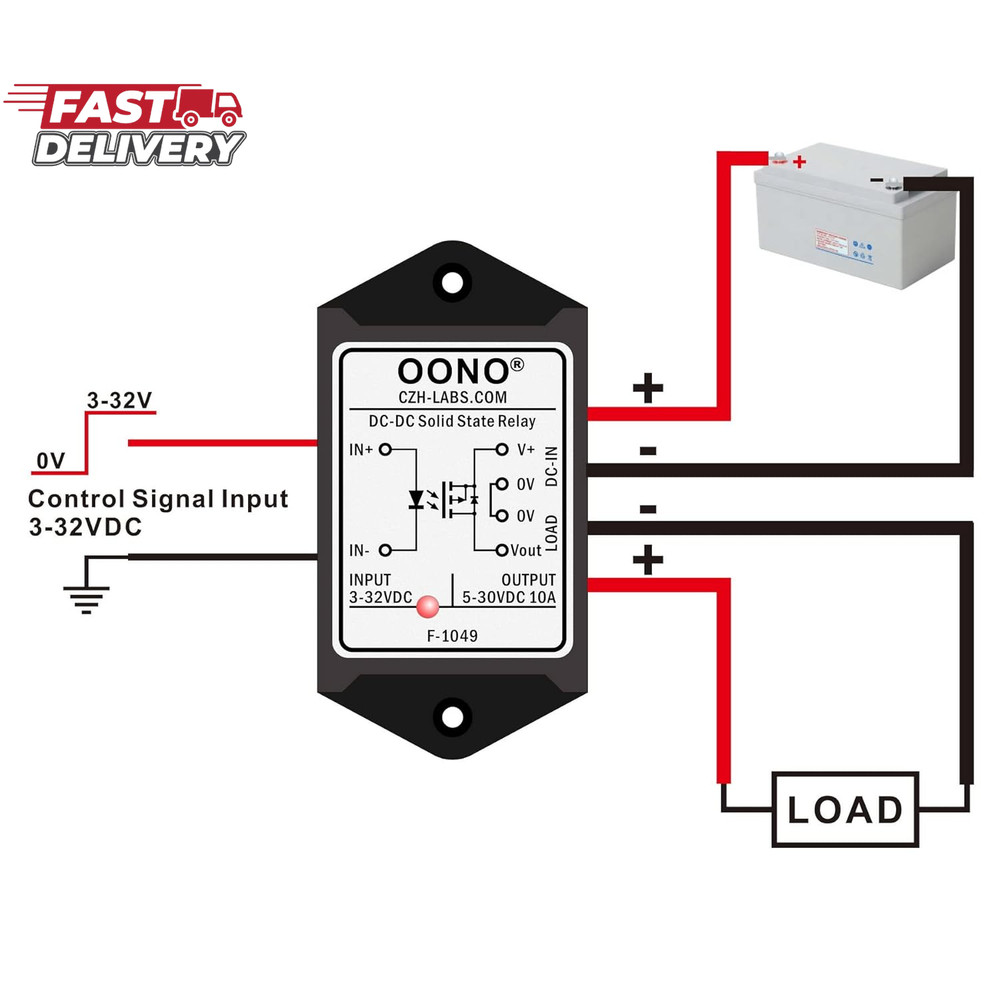

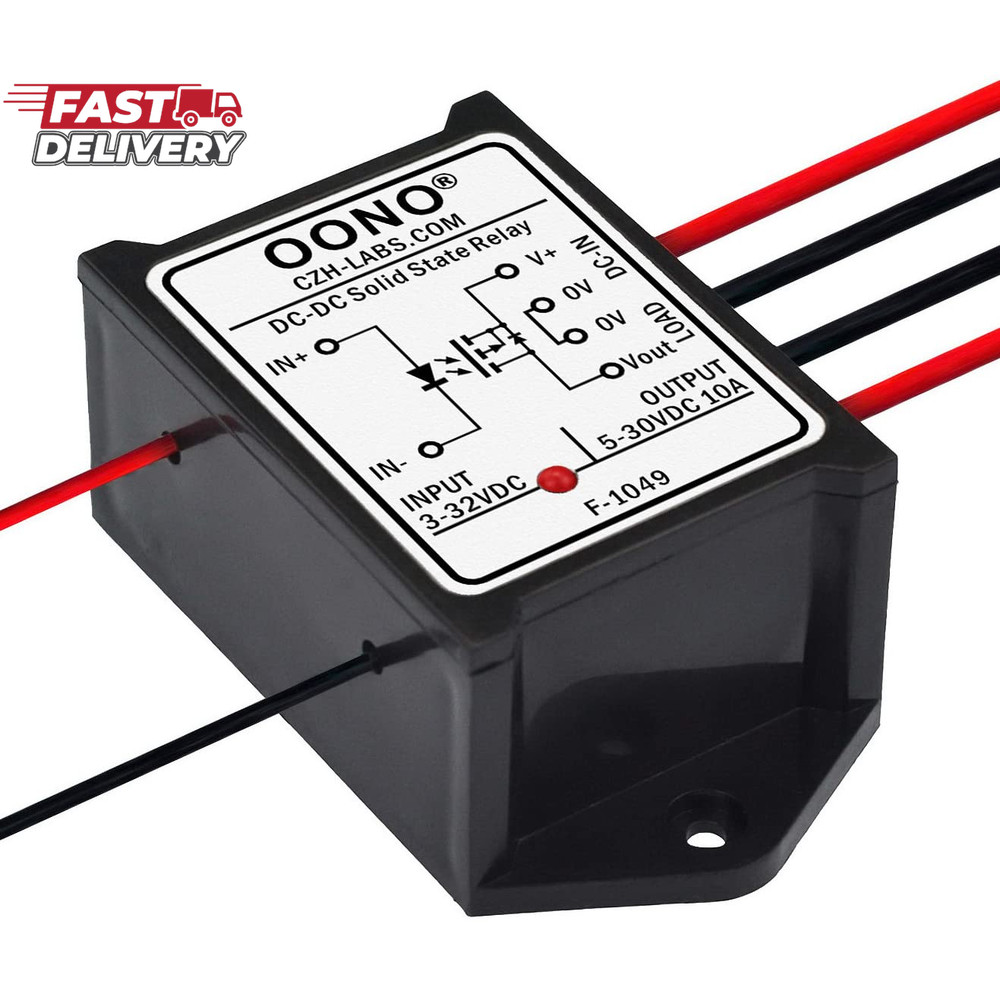

Check the listing for details. Wired DC-DC 10Amp Isolated Solid State Relay Module, SSR in 3-32VDC Out 5-30VDC,. Condition: New. Listed at 25.52 USD. Current: 5mA at 3VDC, 6mA at 5VDC, 8mA at 12VDC, 11mA at 24VDC, 13mA at 32VDC. This is a simple and practical solid state relay module, which is very convenient to use, for Arduino, Raspberry Pi, ESP32, PLC or other projects.
