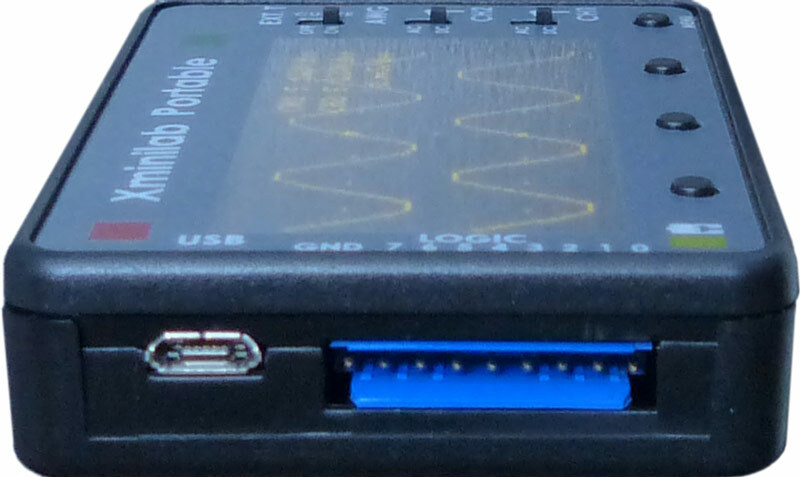

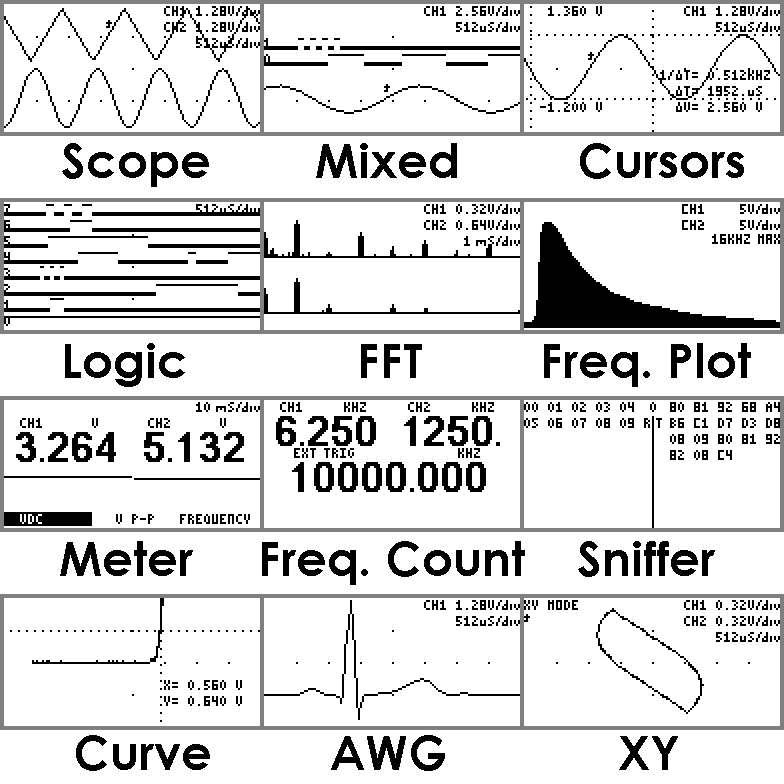

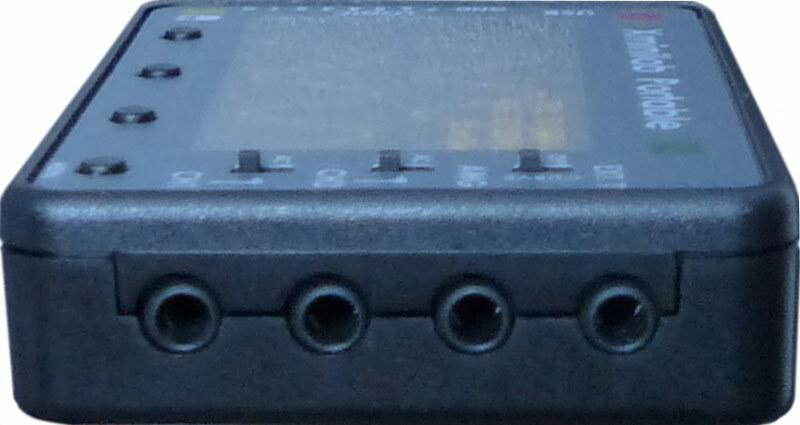

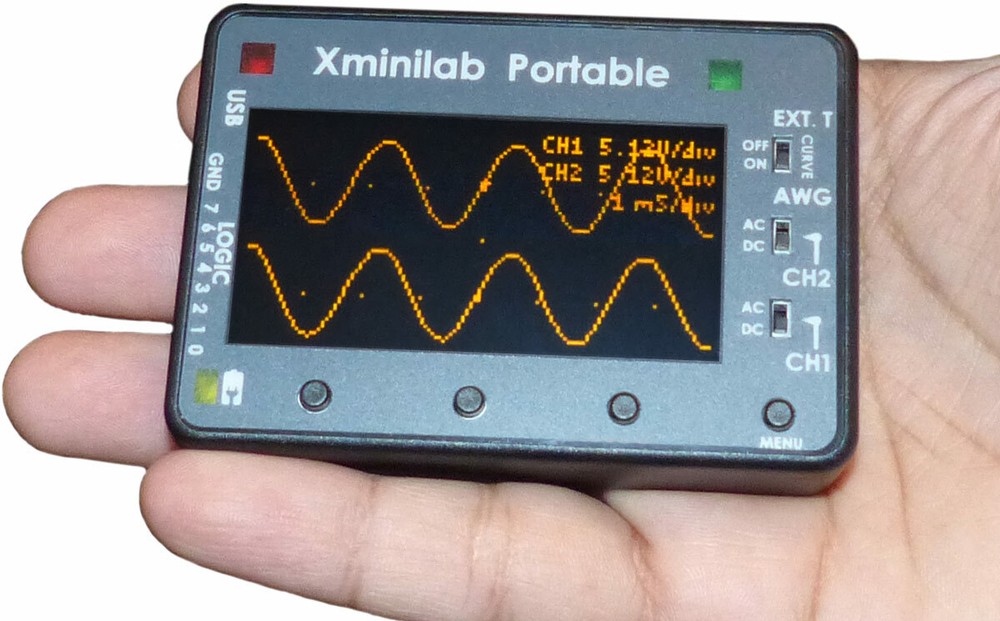

Check the listing for details. XMEGA Xminilab Oscilloscope, Logic Analyzer, Waveform Generator, Sniffer, FFT. Condition: New. Listed at 80.00 USD. The Xminilab Portable is a small mixed signal oscilloscope with an arbitrary waveform generator and protocol sniffer. Features: Mixed Signal Oscilloscope: Simultaneous sampling of analog and digital signals.Advanced Trigger: Normal / Single / Auto, with rising or falling edge and adjustable trigger level.Meter Mode: Average, Peak to peak and Frequency readout.XY Mode (Plot Lissajous patterns or see the phase difference between two waveforms).Spectrum Analyzer with different windowing options and selectable vertical log.Horizontal and Vertical Cursors with automatic waveform measurements.Arbitrary Waveform Generator with Sweep on all parameters.Display options: Persistence, Different grid options, and more.Curve tracer function General Specifications: ATXMEGA32A4U 36KB Flash, 4KB SRAM, 1KB EEPROMGraphic Green OLED display 2.42", 128x64 pixelsEnclosure size: 3.17" x 2.22" x 0.7"Li-Ion Battery 750mAhPDI interface.4 tactile switchesUSB connectivity: Windows, Linux, MAC, Android Logic Analyzer specifications: 8 Digital Inputs, 3.3V / 5V820k ohm input impedanceMaximum sampling rate: 2MSPSFrequency counter: 16MhzProtocol Sniffer: UART, I2C, SPIInternal pull up or pull down.Buffer size: 256 Oscilloscope specifications: 2 Analog InputsMaximum Sampling rate: 2MSPSAnalog Bandwidth: 200kHzResolution: 8bitsInput Impedance: 1Mohm 15pFBuffer size per channel: 256Input Voltage Range: -14V to +20V AWG specifications: 1 Analog OutputMaximum conversion rate: 1MSPSAnalog Bandwidth: 50kHzResolution: 8bitsOutput current > +/- 7mABuffer size: 256Output Voltage: +/- 4V
