| Brand | XTOOL |
|---|---|
| Manufacturer Part Number | XTOOL TP580, Upgrade Version of TP150 |
| OBD Interface | OBDII |
| Supported System | ABS, DPF, EPB, SAS, SRS, TPMS, Full System |
| Connectivity | Wireless |
| Vehicle Type | Passenger Vehicle |
| Features | Backlit Display, Built-In Battery, Check Engine Light Shut Off, Color Display, Erases Codes, Freeze Frame Displays, Internet Updateable, LCD Display, Multi-Language Interface, User Friendly |
| Warranty | 2 Year |
| Software Update | 👍👍Lifetime Free Software Update |
| ✅Main Functions-1 | Full System Diagnostic, Auto Scan & VIN |
| ✅Main Functions-2 | Full TPMS Functions |
| ✅Main Functions-3 | Full OBD2 Functions, 4 IN 1 Live Data |
| ✅Main Functions-4 | 22+ Services |
| ✅Main Functions-5 | Support CAN FD Protocol Work For GM, Cadillac, Buick (After 2020) |
| ✅Main Functions-6 | Support DOIP Protocol |

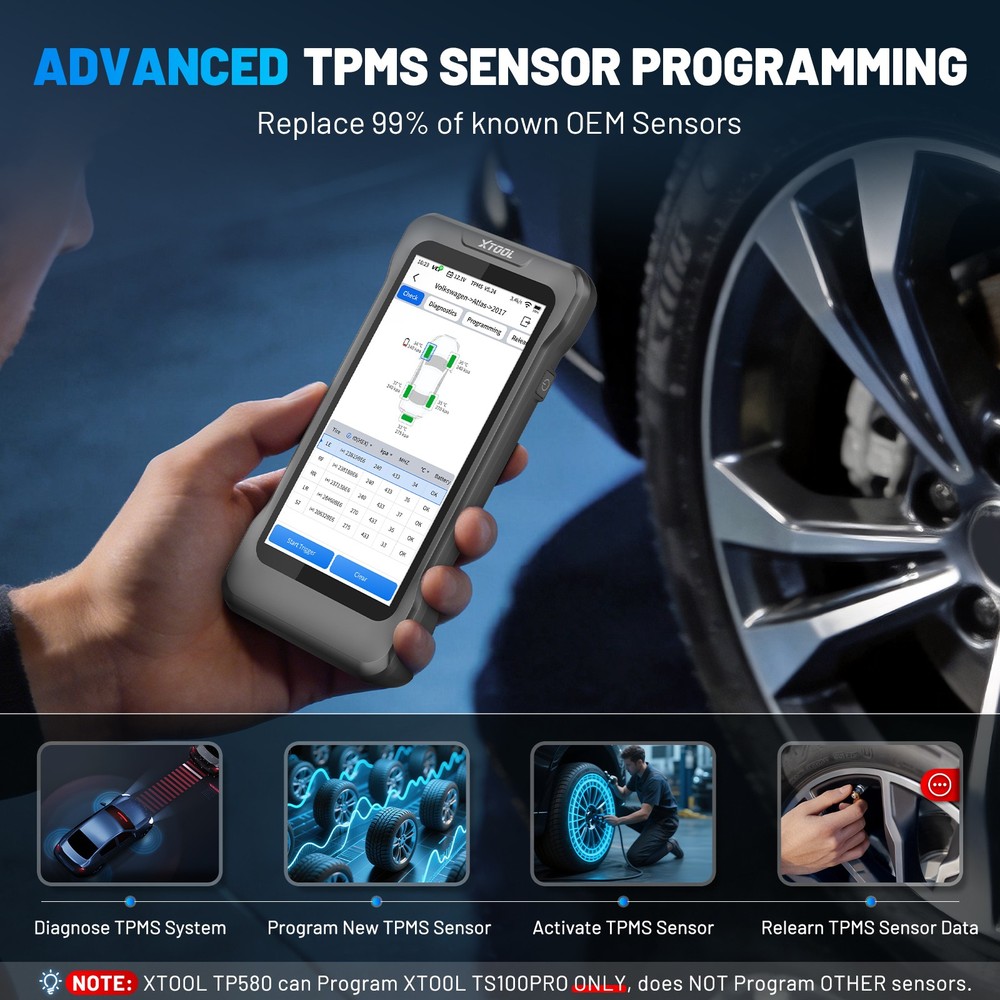

| ➡️Full TPMS Functions-1 | 💥💥Only Program XTOOL TS100/ PRO Sensor, TPMS Sensor Activation |
| ➡️Full TPMS Functions-2 | Comprehensive OBD Relearn, TPMS Sensor Data Reading |
| ➡️Full TPMS Functions-3 | Tire Size Reset, Diagnose TPMS System |
| ➡️Full TPMS Functions-4 | TPMS Relearn/Reset, Read & Clear TPMS Codes |
| ➡️Full TPMS Functions-5 | Check Tire Pressure & Temp & Power |
| ➡️Full TPMS Functions-6 | Turn Off TPMS Warning Light, Check Sensor Info |
| ☑️4 Ways to Program-1 | Automatic ID Generation & Manual Input ID |
| ☑️4 Ways to Program-2 | Copy ID by Activation & Copy ID by OBD |
| ☑️Note-1 | 💥TPMS Programming Only Work For XTOOL TS100 / TS100 PRO Sensors |
| ❇️4 Ways to Relearn-1 | Automatic Relearn & OBD Relearn |
| ❇️4 Ways to Relearn-2 | Seperate Activation & Copy Sensors ID |
| 🟦TPMS Activation-1 | 💥Work for 315MHz & 433MHz Pre-programmed Sensors |
| 🟦TPMS Activation-2 | Read TPMS Sensor Status Accurately |
| 🟦TPMS Activation-3 | Cover for 99% Sensors in Market |
| 🔶22 Services-1 | DPF Regeneration, EPB, Oil Reset, SAS, ABS Bleeding |
| 🔶22 Services-2 | Injector Coding, VGT Relearn, Throttle, Suspension Calibration |
| 🔶22 Services-3 | Gearbox Adaptation, BMS Reset, Headlight Adjustment |
| 🔶22 Services-4 | Crank Sensor Relearn, Windows Initialization |
| 🔶22 Services-5 | Seat Calibration, GPF Regeneration, Camshaft Sensor Relearn |
| 🔶22 Services-6 | Coolant Replacement, Tire Size Setting, EGR Relearn |
| 🔶22 Services-7 | Sunroof Initialization, EVAP Test |
| 📣Memory Capacity | 32GB |
| 📣Screen Size | 5.45 INCH |
| 📣Battery Capacity | 4500mAh 3.6V |
| 🔴22 Language Supported-1 | English is the default language |
| 🔴22 Language Supported-2 | Contact us to open other language permissions |

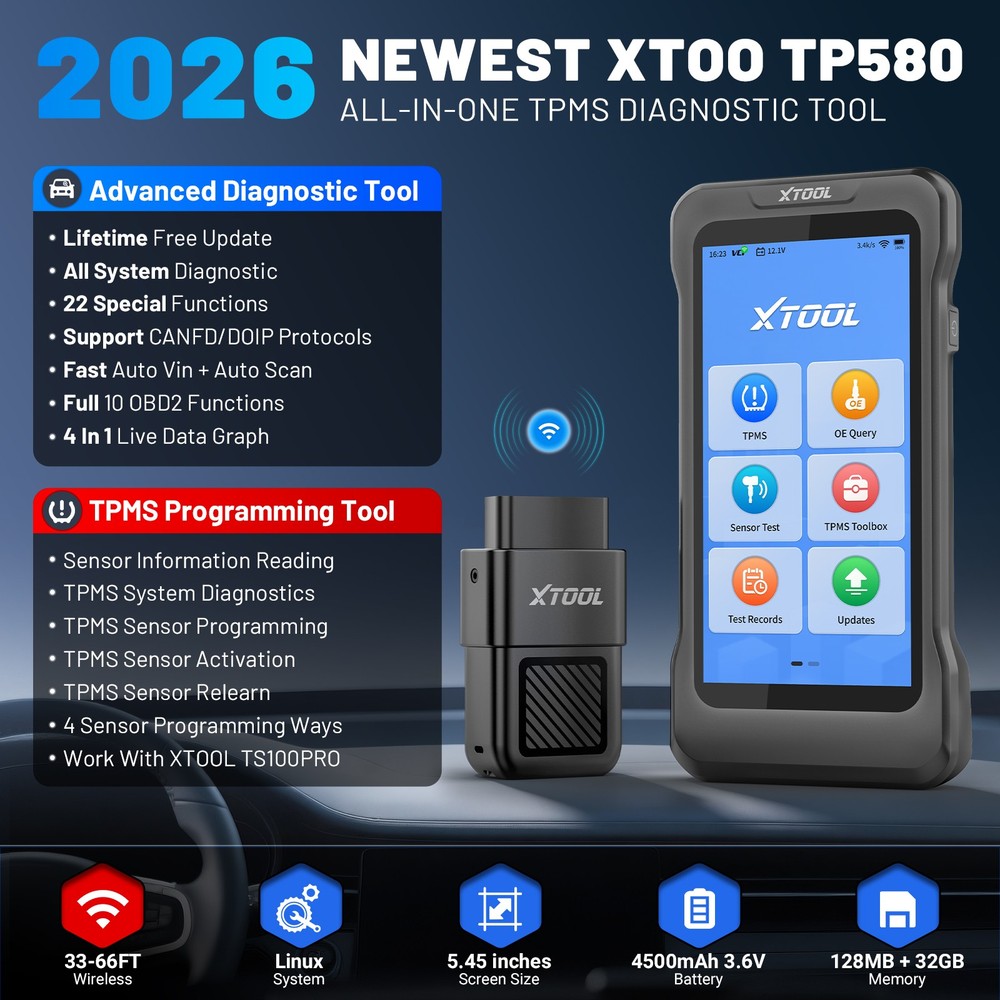

Check the listing for details. XTOOL TP580 TPMS TS100 Programming Tool All System Diagnostic Scanner 22+ Resets. Condition: New. Listed at 299.00 USD. XTOOL TP580 is a handheld ✅automotive TPMS diagnostic device designed for professional technicians and automotive enthusiasts. With an integrated TP module, XTOOL TP580 provides various ✅TPMS diagnosis functions like ✅sensor check, ✅system diagnostics, ✅XTOOL sensor programming as well as ✅querying OEM sensor info & relearning procedure. It also supports ✅full OBDII function and automotive diagnostics for ✅all systems for the vehicle, providing the same functionality as D6S. XTOOL TP580 also comes with ✅22 common services functions like Oil Reset, ABS Bleeding, Injector Coding, Throttle, SAS, DPF Regeneration, EPB, VGT Relearn, and much more. It covers over 98% of all models and works on 4,000+ models within different markets.
