| Brand | Zoom |
|---|---|
| MPN | ZL12NEXT |
| UPC | 4515260030415 |
| Type | Digital Mixer and Recorder |
| Model | L12next |
| Max I/O Capacity | 14x Input / 6x Output |
| Number of Analog Input Channels | 12 (8 Mono / 2 Stereo) |
| Number of Mic Preamps | 8 |
| Number of Analog Output Channels | 6 |
| Mix Routing | 8x Mono Bus, 2x Stereo Bus, 1x FX Return |
| Display | OLED |
| Faders & Level Adjustment | 12 Fader 34 Knob |
| Meters | LED |
| Gain/Trim Range | 16 to 60 dB, Hi-Z; 0 to 44 dB |
| Input Pad | -20 dB (Mono Channels) |
| Input Polarity | Fixed |
| Dynamic Processing | Compressor |
| EQ | 3-Band Semi-Parametric |
| Graphic EQ | No |
| Solo/Mute | Solo, Mute per Input Channel |
| Audio Delay | No |
| Automatic Mic Mixing | No |
| Sample Rates | Up to 96 kHz |
| Bit Depth | Audio Streaming: Up to 24-Bit, Multitrack Record: 32-Bit |
| Frequency Response | 20 Hz to 20 kHz (at 44.1 kHz, -1 dB), 20 Hz to 40 kHz (at 96 kHz, -3 dB) |
| Max Input Level | Combo XLR-1/4 Mic/Line Input: -2 dBu, 1/4 TRS Line Input: +14 dBu |
| Signal Generator | No |
| Analog Inputs | 4x 1/4 TRS Balanced Line Input (2 Stereo Pairs) |
| Analog Outputs | 2x XLR 3-Pin Balanced Main Output (1 Stereo Pair), 5x 1/4'' TRS Stereo Monitor Output |
| Phantom Power | +48 V, Selectable On/Off |
| USB Input/Output | USB-C |
| USB Input/Output Capacity | 14x Input / 4x Output |
| Input/Output Ports | 1x 1/4 TRS Footswitch/Control Input |
| Expansion Ports | No |
| Wireless | Bluetooth *Built-In |
| External Display Input/Output | No |
| Max Multitrack Recording | 14 Tracks |
| Media Support | SDHC, USB Drive |
| Max Media Storage Capacity | 1000 GB |
| File Format Support | WAV |
| OS Compatibility | Windows / macOS |
| Input Power | 5 VDC |
| Rack Mountable | Yes |

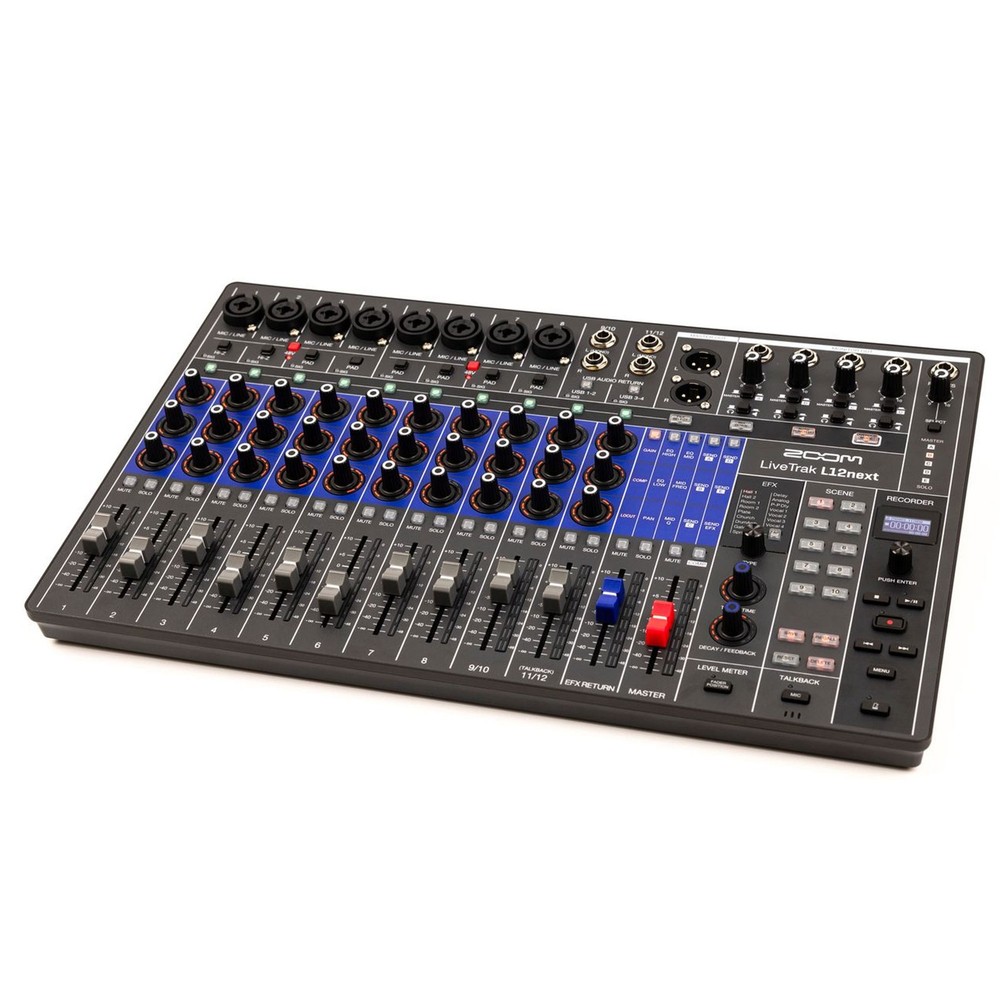

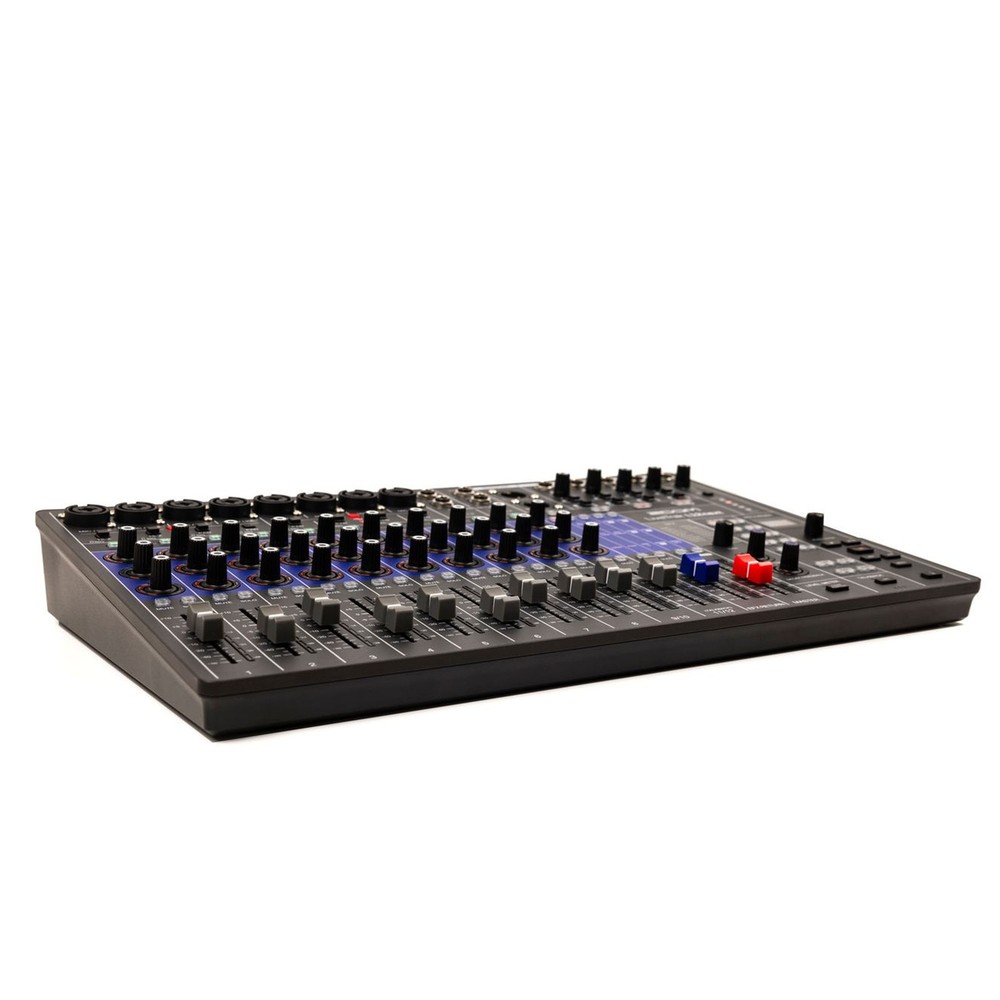

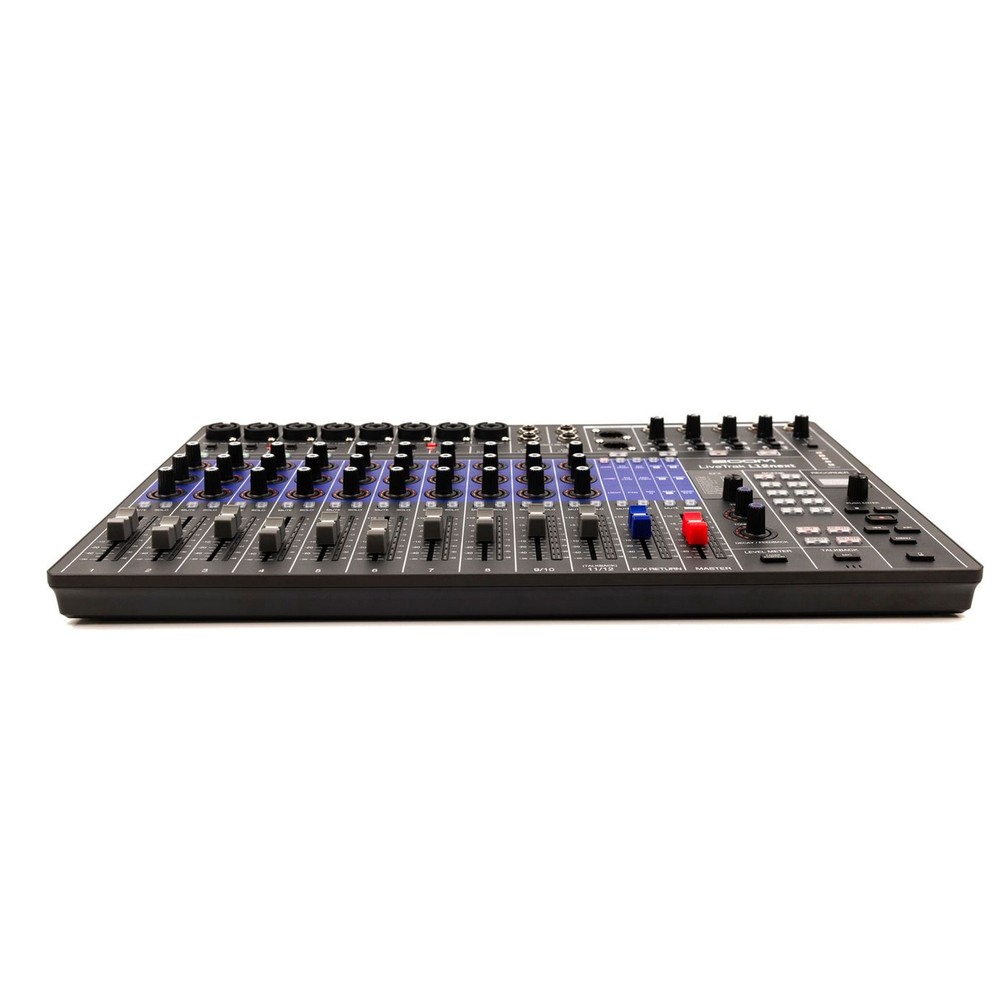

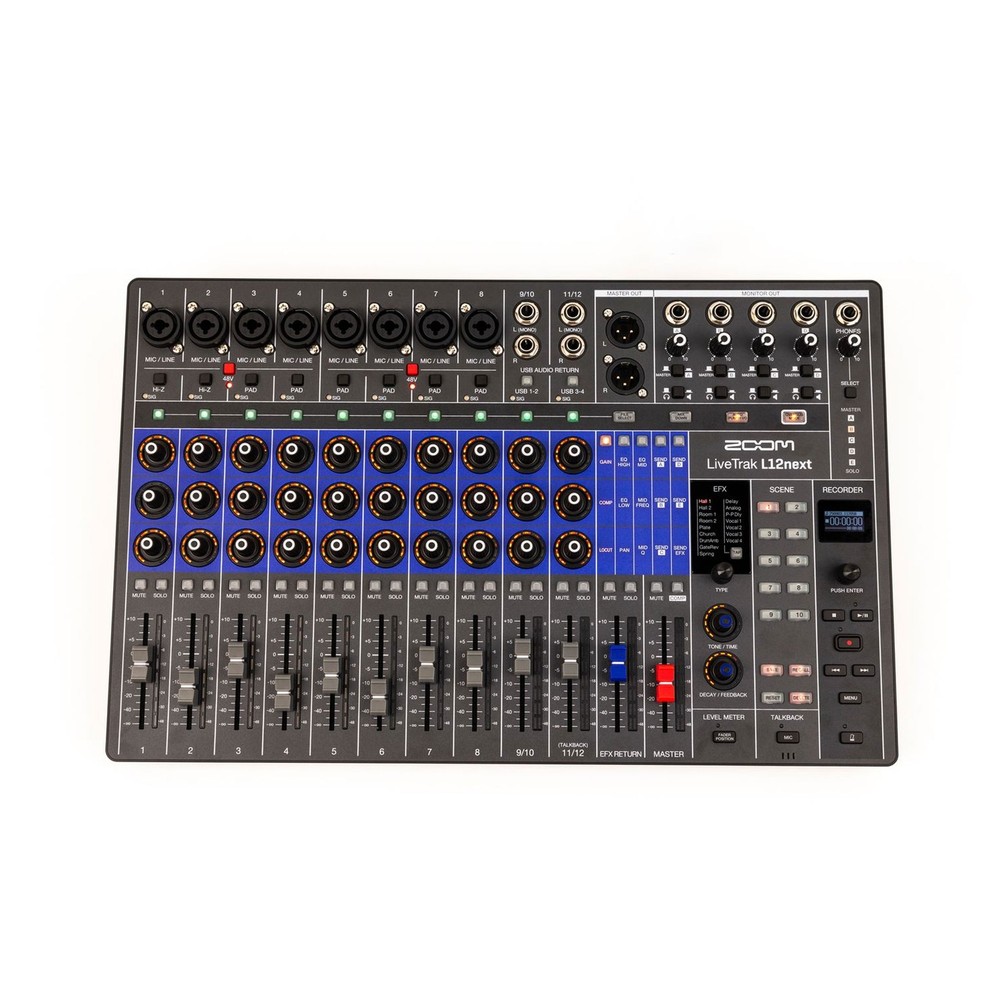

Check the listing for details. Zoom LiveTrak L12next Digital Mixer / Recorder. Condition: New. Listed at 699.99 USD. The L12next combines the power of a digital mixer with analog-style operation. The L12next’s master channel captures your mix in 32-bit float for pristine, clip-free sound, while the master Compressor adds warm, natural compression that enhances the overall mix.
