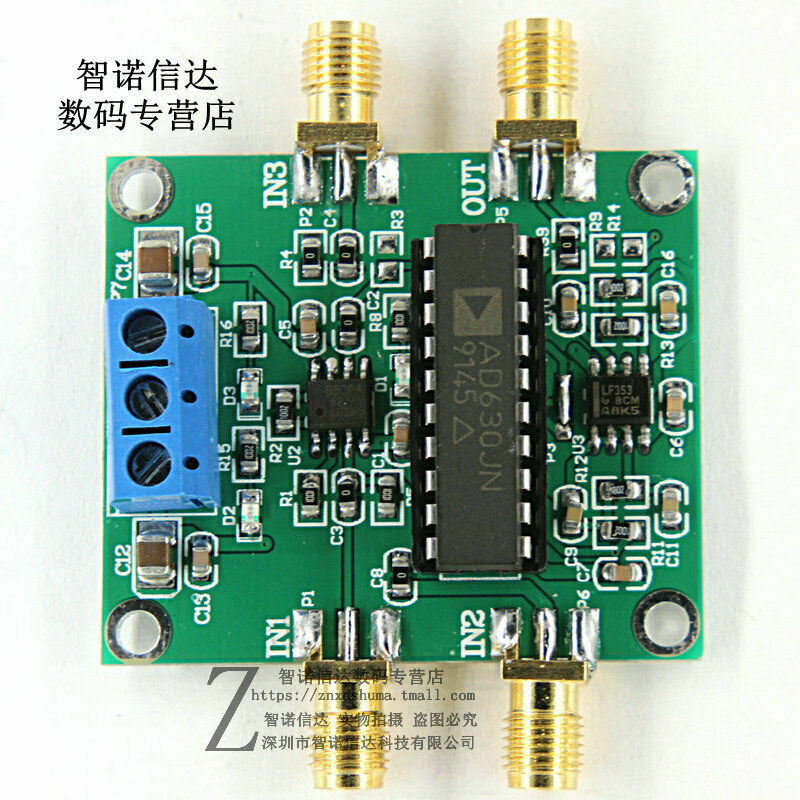

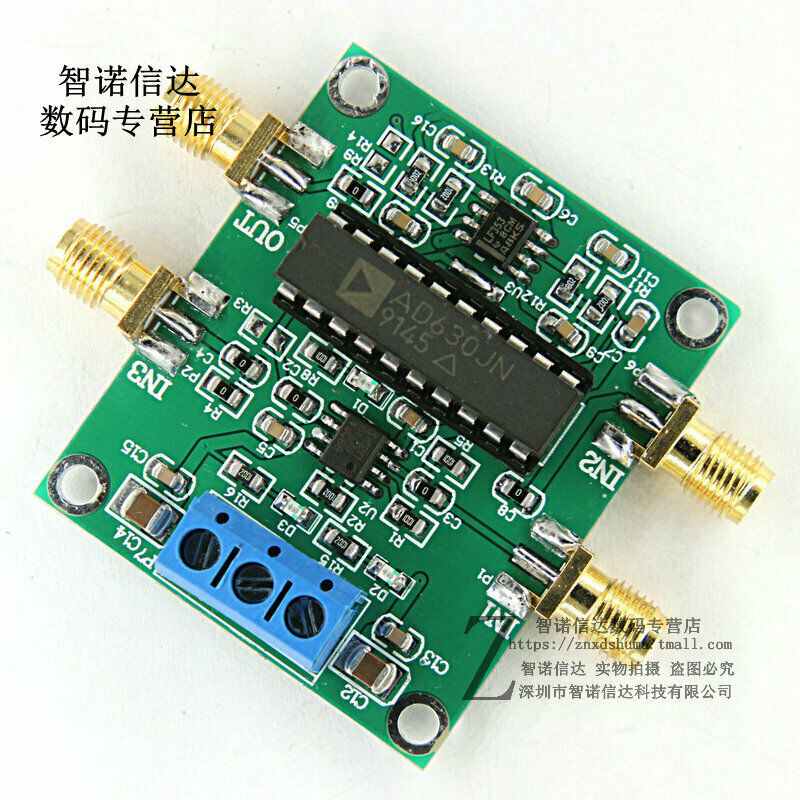

Check the listing for details. Lock-in Amplifier LIA AD630 Module Minimum System Phase Sensitive Detection. Condition: New. Listed at 79.88 USD. Lock-in Amplifier LIA AD630 Module Minimum System Phase Sensitive DetectionDescription Name: AD630 Lock-in amplifier Dimensions: 46mm * 40mm Supply Voltage Range: ±5V~±18V Highlights:AD630 phase-lock amplifier integrated with pre-amplifier OPA627 and 4-order ultra-low Butterworth filterThe smallest phase-lock amplification systemCan detect and extract weak signalModulation function of AD630Features:Recovers signal from 100 dB noise2 MHz channel bandwidth45 V/µs slew rateLow crosstalk: −120 dB at 1 kHz, −100 dB at 10 kHzPin programmable, closed-loop gains of ±1 and ±20.05% closed-loop gain accuracy and match100 µV channel offset voltage (AD630)350 kHz full power bandwidthApplications:Balanced modulation and demodulationSynchronous detectionPhase detectionQuadrature detectionPhase sensitive detectionLock in amplificationSquare wave multiplicationGeneral Description: The AD630 is a high precision balanced modulator/demodulator that combines a flexible commutating architecture with the accuracy and temperature stability afforded by laser wafer trimmed thin film resistors. A network of on-board applications resistors provides precision closed-loop gains of ±1 and ±2 with 0.05% accuracy (AD630B). These resistors may also be used to accurately configure multiplexer gains of 1, 2, 3, or 4. External feedback enables high gain or complex switched feedback topologies. The AD630 can be thought of as a precision op amp with two independent differential input stages and a precision comparator that is used to select the active front end. The rapid response time of this comparator coupled with the high slew rate and fast settling of the linear amplifiers minimize switching distortion. The AD630 is used in precision signal processing and instrumentation applications that require wide dynamic range. When used as a synchronous demodulator in a lock-in amplifier configuration, the AD630 can recover a small signal from 100 dB of interfering noise (see the Lock-In Amplifier Applications section). Although optimized for operation up to 1 kHz, the circuit is useful at frequencies up to several hundred kilohertz. Other features of the AD630 include pin programmable frequency compensation; optional input bias current compensation resistors, common-mode and differential-offset voltage adjustment, and a channel status output that indicates which of the two differential inputs is active. Please Note: This Lock-in amplifier can be changed to Balanced modulator, Need to change the circuit by yourself. Methods as below:1. The R4 (0 ohm resistor) removed, R3 shorted or welded on 0 ohm resistor2. Pick the mode selection to the left and select it as the modulation mode3. Short the R14 Package include1× Module Payment1.We accept PayPal only. 2.All major credit cards are accepted through secure payment processor PayPal. 3.Payment must be received within 7 business days of auction closing. 4.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay.Shipping1.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. 2.Items will be shipped within 1-3 business day when we received payment. 3.Delivery time depends on destination and other factors; 4.International buyers please note: a.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are buyer’s responsibility. We will try our best to reduce the risk of the custom duties. b.Please check with your country's customs office to determine what these additional costs will be prior to buying. Returns policy1.If the item is not as described or damaged in transportation, please send it back within 7 days upon date of receipt2.For defective item, we guarantee free exchange or full refund within 30 days from the day of placing order3.Buyers pay shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements4.Items must be unused, in original packaging and include all parts, accessories and packaging5.When we receive your returned item, we will investigate the situation and consider to offer replacement or refund according to the situation Terms of sales1. All the items will be tested before shipping. Buy them with the confidence! 2. We maintain hightest buyer ratings StarStarStarStarStar and 100% customer satisfaction, Positive Feedback will be much appreciated from you.3. Any dissatisfaction or problem, please contact us before you leave neutral Neutral feedback rating or negative Negative feedback rating feedback. Feedback1.When you received package and like it, kindly comfirm received order and leave a positive feedback with full stars for us. Thank you.2.Any dissatisfaction or problem, please contact us before you leave neutral Neutral feedback rating or negative Negative feedback rating feedback.
