| Frequency Range | Automatic, Manual 7 ranges |
| Basic Accuracy | 0.1% |
| Display Max | 30,000 |
| Custom Bundle | No |
| Measurement Functions | LCR meter |
| Product | LCR Meter |
| MPN | 2022 |
| Power Supply | V::198VAC~240VAC Fre:50Hz Power:15VA |
| Form Factor | LCR Meter |
| Accuracy | 0.1% |
| Trigger | Internal, Manual |
| Output Impedance | LCR Meter |
| Measurement current | I-max:<1A |
| Measurement Range | 1μΩ~30kΩ |
| Speed | 60 times/s, 15 times/s, 2 times/s |
| Dimension & Weight | 216x88x323mm Weight:4kg |
| Adjustment | short-circuit reset full range |
| Range | Automatic, Manual 7 ranges |
| Modified Item | No |
| California Prop 65 Warning | LCR Meter |
| Brand | VTSYIQI |
| Model | LCR meter |
| Parameter | DCR |
| Country/Region of Manufacture | China |
| Display | show,、ΔABS、Δ% sorting result |

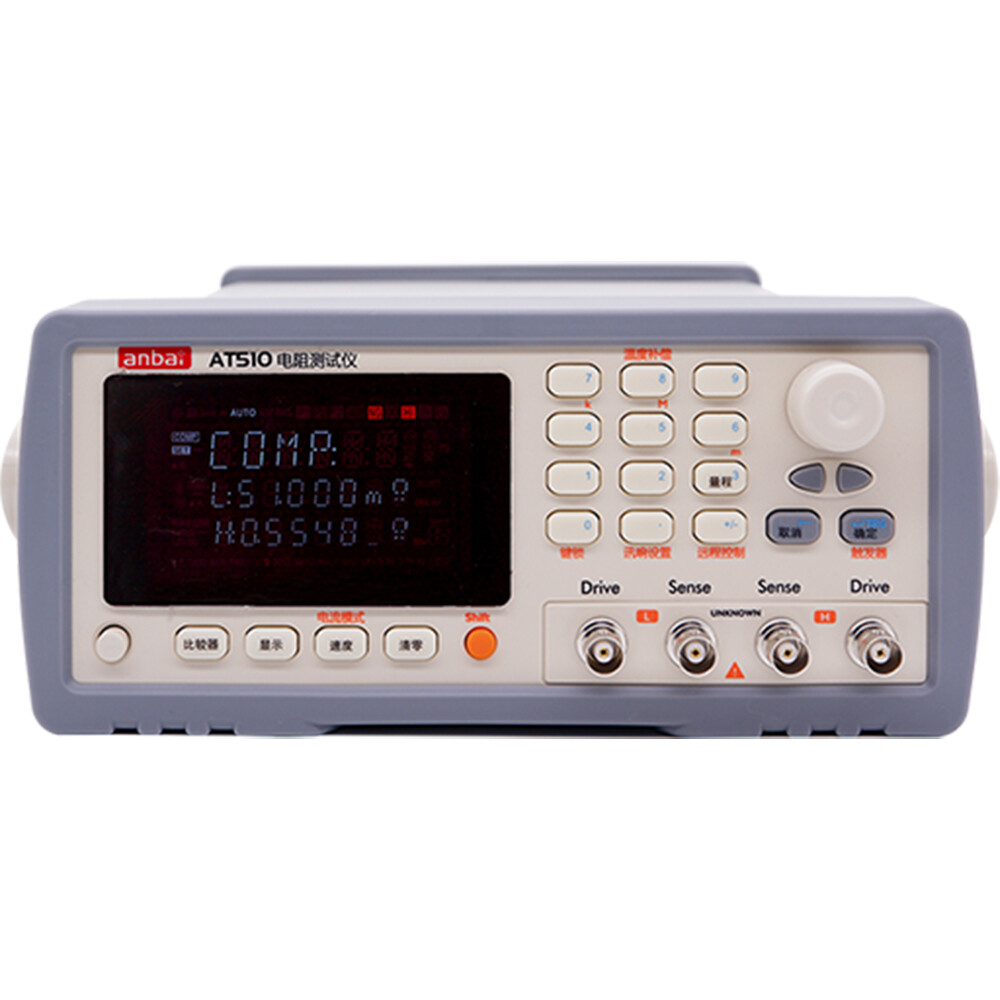

Check the listing for details. Micro Ohm Meter Instrument DC Resistance Tester Measurement Range 1μΩ~30kΩ. Condition: New. Listed at 744.93 USD. Micro Ohm Meter Instrument DC Resistance Tester Measurement Range 1μΩ~30kΩ Battery tester with high-performance micro processor. the test range 1μΩ~30KΩ, max display 30,000. Economical resistance tester for low resistance. In order to eliminate the influence of temperature on the resistance value, temperature compensation function is optional, suitable for transformer and inductance coil copper resistance, relay contact resistance, switch, connector contact resistance, wire resistance, component solder joint contact resistance, printed circuit board lines and Weld hole resistance, metal flaw detection, etc. Used in automation equipment, optional RS232C communication interface or HANDLER interface to output GD/NG signals to improve production automation testing capabilities! Feature:*VFD shows.*Double display: ΔABS/Δ%/Sorting Result*Auto Zero-Adjust for each ranges.*Comparator Function: HI/IN/LOW/GD/NG on VFD Show or HANDLER out.*Four-terminal resistance measurement.*Beeper and brightness can be adjusted.*Internal and Manual Trig.*Keypad lock function.*Data Hold function. Specification:ParameterDCRAccuracy0.1%Measurement Range1μΩ~30kΩMeasurement currentI-max:
