| Please Note | Shipping from domestic warehouses in the United States |
|---|---|
| Shipping notice | Can not ship to Puerto Rico/Alaska/Hawaii |
| Table size | Φ100mm |
| Load | 45kg |
| Itinerary | 360° |
| Packing size | 23*13*16cm |
| Parallelization | 80μm |
| Resolution / Pulse(no subdivision) | 0.01 ° |
| Recoil | 0.005° = 18" |
| Material | Aluminum-black anodized |
| Top board beat | 15μm |
| Transmission mode | worm gear (reduction ratio 1/180) |
| Weight | 1.7kg |
| Guide rail | bearing |
| Product model | HT03RA100 |
| Absolute on-axis accuracy | 0.01° = 36" |
| Repeatability | 0.005° = 18" |
| Rotation speed (maximum) | 25° / sec |
| Gross weight | 2kg |
| Resolution / Pulse(20 subdivisions) | 0.0005° |
| Eccentricity | 10μm |
| Lost movement | 0.005° = 18" |
| Brand | Unbranded |
Check the listing for details. Motorized Rotation Stage Optical Rotary Table Electric Optical Rotation Platform. Condition: New. Listed at 290.45 USD. ★High-precision electric rotating platform, new construction, new technology; key indicators have passed strict inspection. Rotation speed (maximum): 25° / sec. Dash the outside of the platform to easily read the scale.
You may also like
$266.73
360° Motorized Rotary Stage Electric Rotating PlatFitm Optical Motorized Stage
$169.95
Edmund Optics 37-364 Ball Bearing Slide, 3" Travel EDM-37364A
$55
Mentor TNC JCX-40R(18H) Crossed Roller Stage, 40mm x 40mm, 6.5mm Travel, M6 Tap
$180
Newport DS40-XY Compact Dovetail Linear Stage, 14mm Travel, 40x40mm, 1µm
$74.79
Suruga Seki KS501-60TL Motorized Goniomter Positioning Stage
$164.5
XY Workbench For Laser Marking Engraving Machine 2D Portable 25KG 210*150mm
$375
Aerotech ATS406 Linear Stage w/ Compumotor S57-102 Stepper Motor
$290.45
Motorized Rotation Stage Optical Rotary Table Electric Optical Rotation Platform
$227

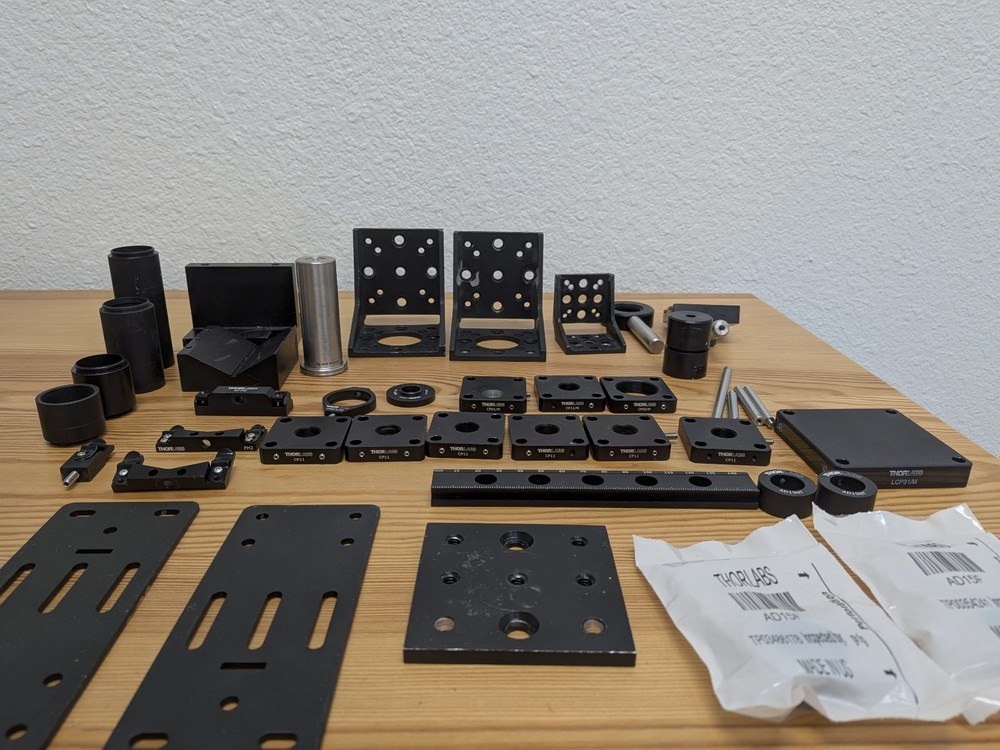

Thorlabs & other optomechanical components
$99.43

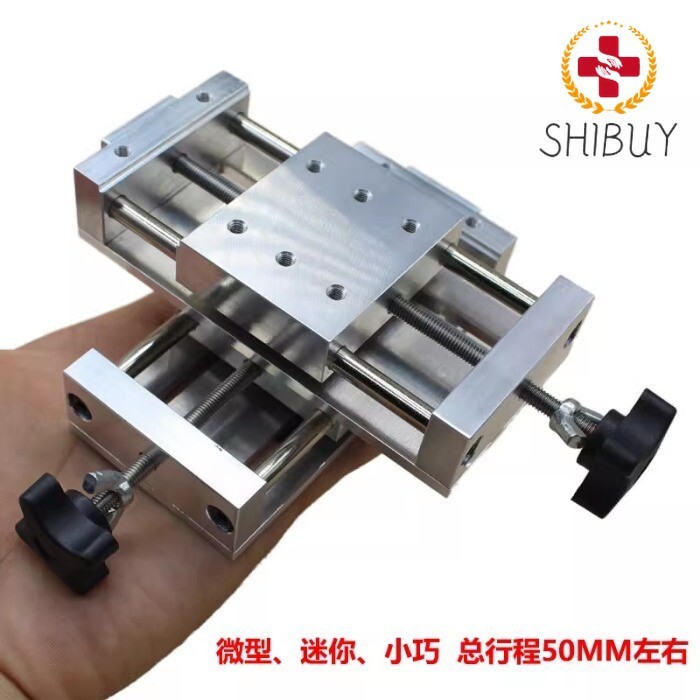

1PC Precision Cross Manual Sliding Table Linear Rail X/Y Axis Platform
