| Product Dimensions: 1U Rack form factor | 26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in) |
|---|---|
| Processor | MPC8349E, 400 Mhz, 750 MIPS |
| Operating Temperature without use of fans | +70C ambient for 16 hours |
| Number of Serial Ports | 8 |
| Data Bits | 5,6,7,8, 9-bit protocol support |

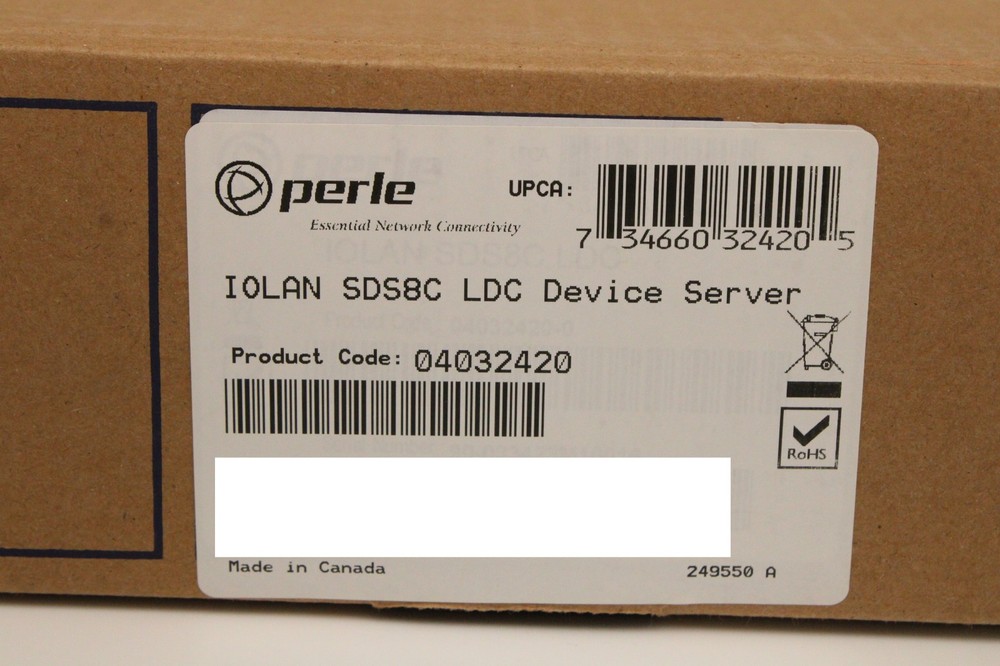

| MPN | 04032420 |
| Serial Port Interface | RS232 / RS485 / RS422 DTE on RJ45 - RS485: full and half duplex |
| Memory: RAM MB | 64 |
| Power Supply | Plugable Terminal Blocks w/screw terminals 28 - 12 AWG wire sizes |
| Case | SECC Zinc plated sheet metal (1 mm) |
| Humidity | 5 to 95% (non condensing) for both storage and operation |
| Heat Output (BTU/HR) | 37.6 |
| Product Weight | 3.16 kg |
| Input Voltage Range | 18 - 72v DC |
| Parity | Odd, Even, Mark, Space, None |
| Storage Temperature | -40C to 85C, -40F to 185F |
| Flow Control | Hardware, Software, Both, None |
| MTBF (Hours) | 126,302 |
| Serial Port Speeds | 50bps to 230Kbps with customizable baud rate support |
| Operating Temperature | -40C ambient for 16 hours |
| Sun / Solaris | Sun break safe |
| Shipping Dimensions | 59 x 36 x 9 (cm), 23 x 14 x 3.5 (in) |
| Brand | Perle |

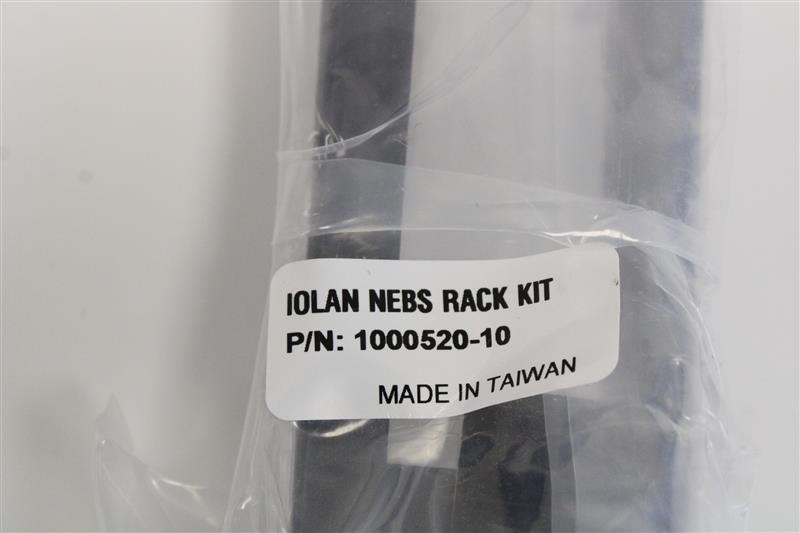

| Mounting | 1U - 19" rack, front and rear mounting hardware included |

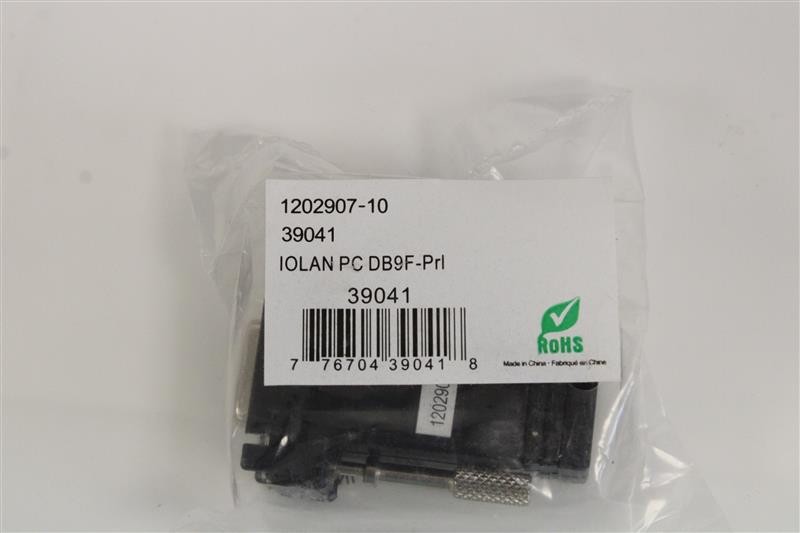

| Local Console Port | RS232 on RJ45 with DB9 adapter (provided) |
| Type | Terminal Server |
| Nominal Input Voltage | 24v DC / 48v DC |
| Shipping Weight | 3.96 kg |
| Model | IOLAN |
| Failsafe Alarm Relay | 3A@24v DC |
| AC Input Frequency | 47-63Hz |
| Memory: Flash MB | 16 |
| Ingress Protection Rating | IP30 |
| UPC | 734660324205 |

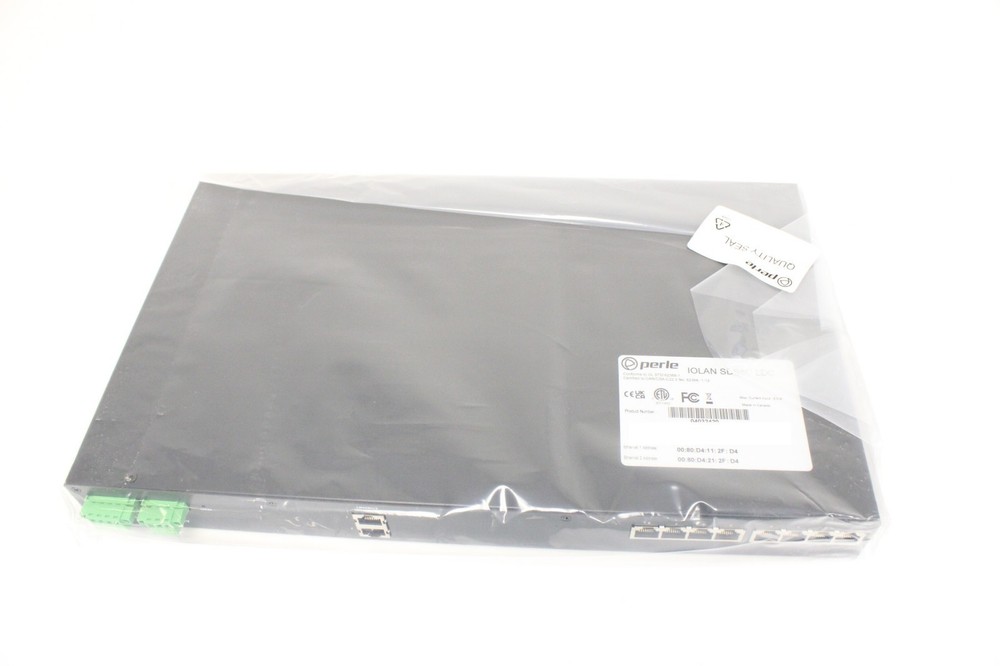

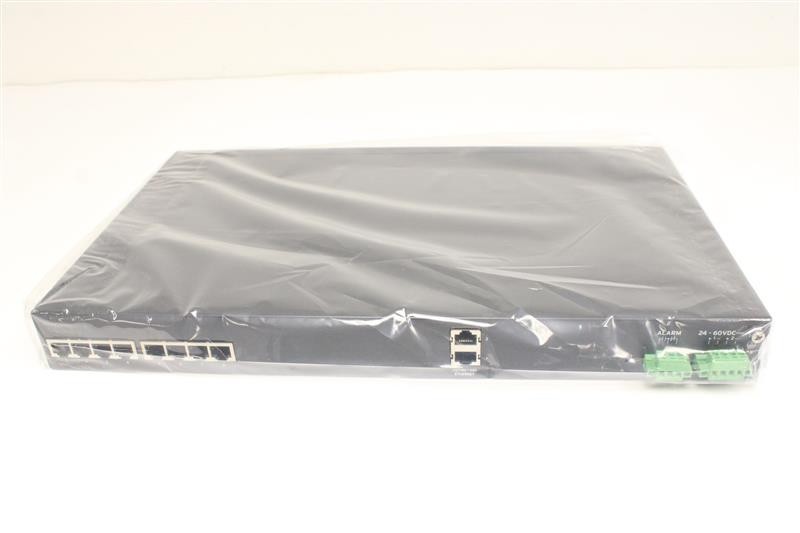

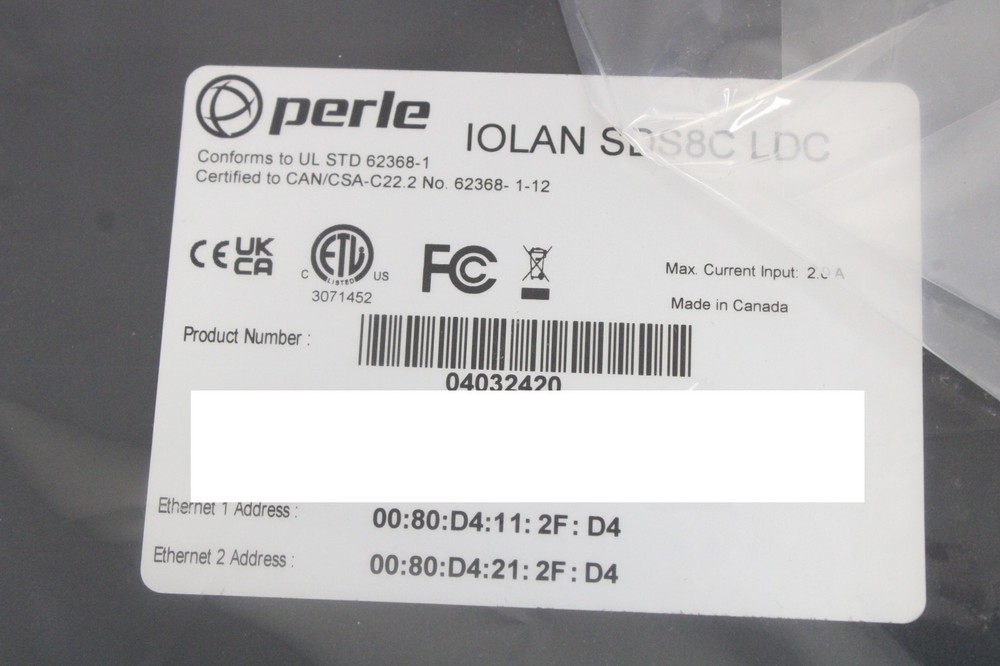

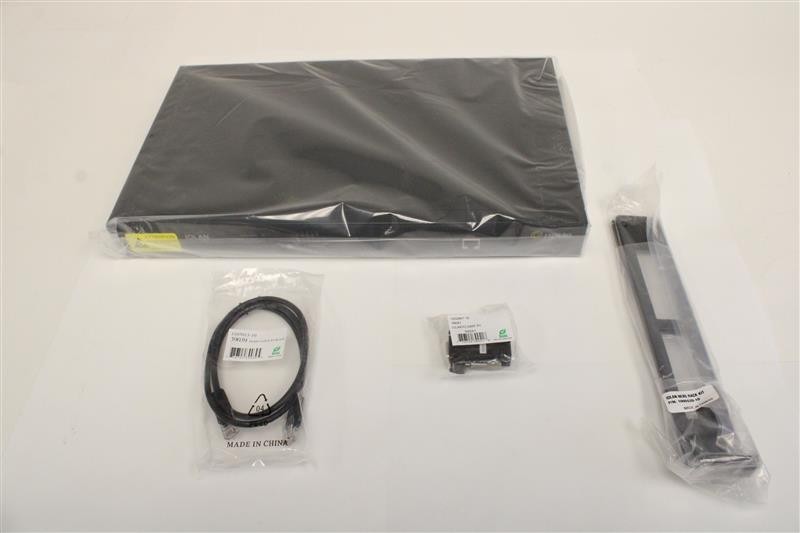

Check the listing for details. Perle 04032420 IOLAN Electric Utility Terminal Server. Condition: New. Listed at 517.50 USD. IOLAN SDS8C LDC Utility Terminal Server: 8 x RJ45 serial ports, software selectable RS232/422/485 interface, Cisco Rj45 pinout, 24/48 VDC power, dual 10/100/1000Base-T Ethernet, 1U rack mount, Advanced Features for NERC-CIP compliance, Meets IEC 61850-3, IEEE 1613 electric power substation environmental standard. Certified for NEBS Level 3 for Telecommunications Facilities.
