| Current Output | 10A |
|---|---|
| Protection Level | IP20 |
| Nominal System Voltage | 36V / 48V, Auto Recognition (Non-Lithium) |
| Battery Operating Range | 30 ~ 65 VDC |
| System Configuration | Off-Grid |
| Power Source | Solar |
| Max Input Current (short-circuit, Isc) | 35A |
| Ground Type | Common Negative Lug (M3) |

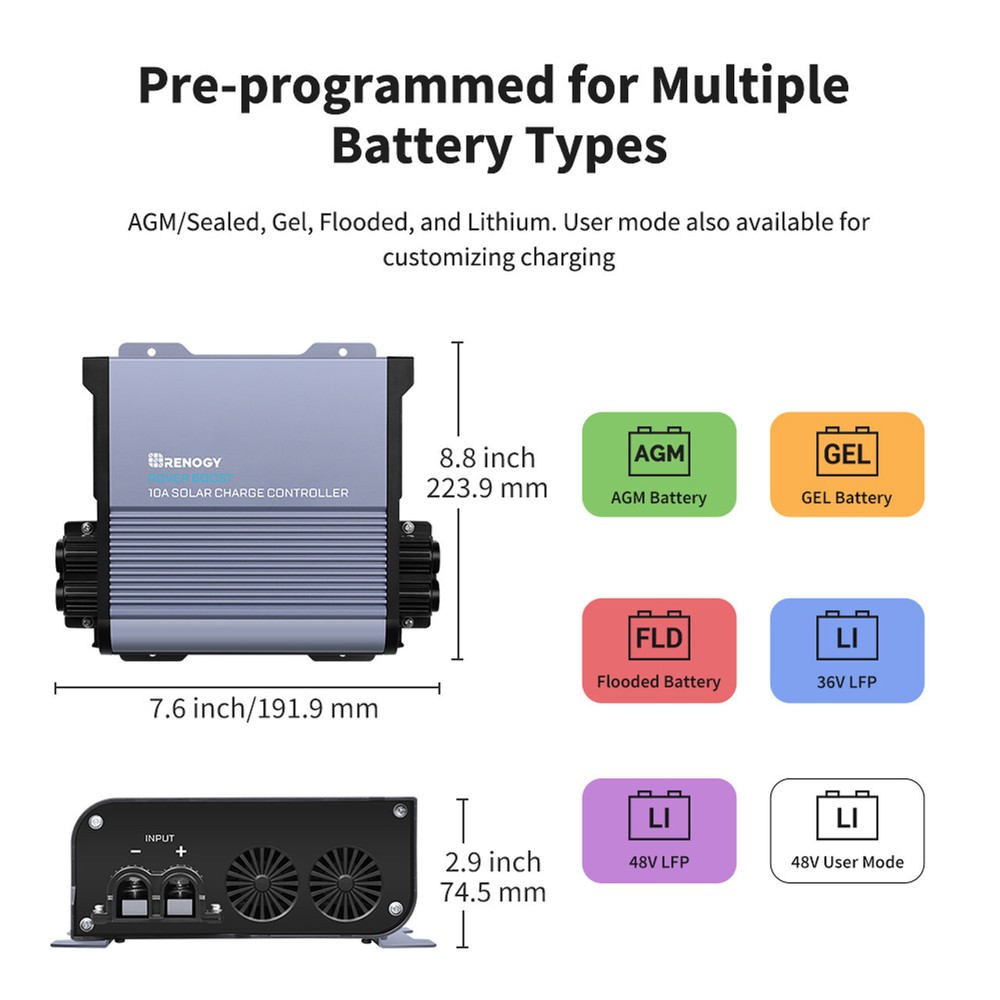

| Dimensions | 8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm |
| MPN | RCC10RVRB-OP-US |
| Battery Types | AGM/Sealed, GEL, FLOODED, LFP, USER* |
| Weight | 2.65 lbs / 1.2 Kg |
| Brand | Renogy |
| Max. PV Input Power | PV Input Power: 500W/36V; 650W/48V；Charging Power: 450W/36V; 600W |
| Type | Solar Charge Controller |
| Power Limiting Protection | Up to 600W/36V; 800W/48V |
| Solar Input Voltage Range (VOC) | 15 ~ 25VDC / 36V；15 ~ 40VDC / 48V |
| Model | MPPT |
| MPPT Voltage Range | 15 ~ 25VDC / 36V；15 ~ 40VDC / 48V |
| Rated Charge Current | 10A |
| Charging Mode | MPPT (Maximum Power Point Tracking) |
| Power Consumption | ≤ 2W |

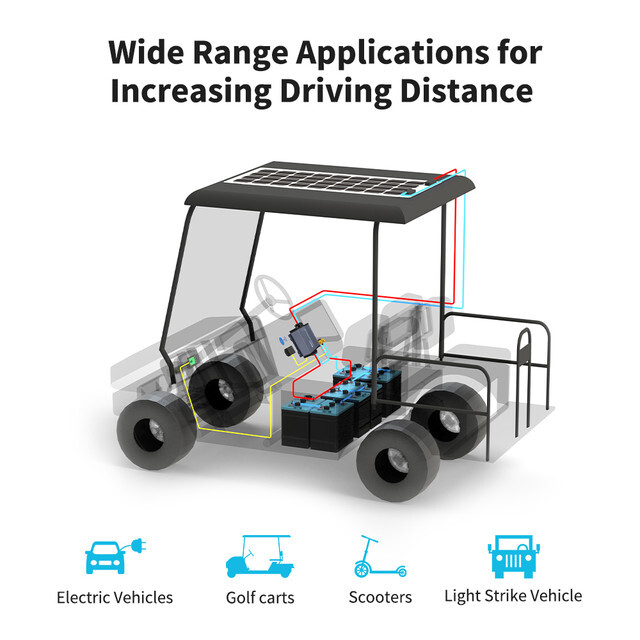

| Application | Back-up Power, Camping/Hiking, Electronics, Home/Garden, Recreational Vehicle (RV), Shed |
| Warranty | 6-Months |

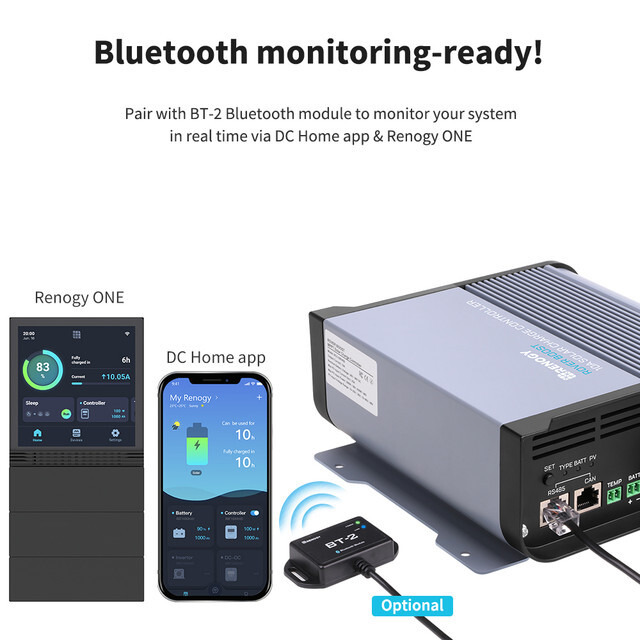

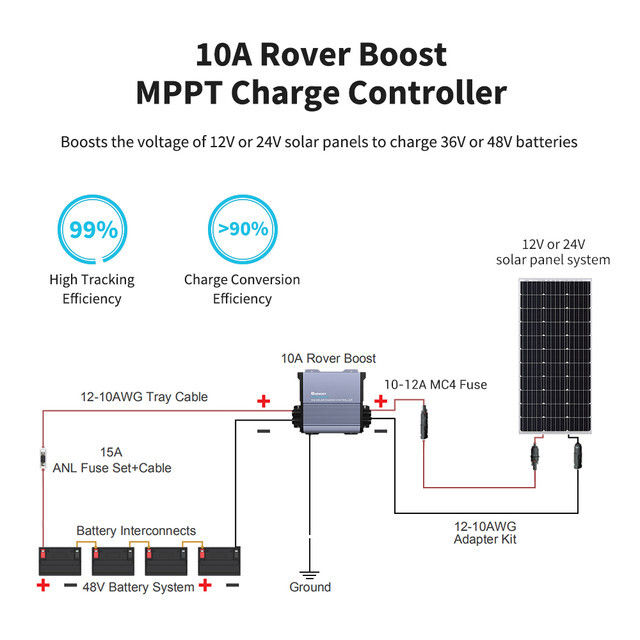

Check the listing for details. Renogy 10A 36V/48V Auto DC Input MPPT Solar Charge Controller Open Box. Condition: Open box. Listed at 88.99 USD. Optional: Renogy BT-2 Bluetooth Module. 99% MPPT Charging Efficiency. Rated System Volt: 36V / 48V. Assuming each battery is a 12V 100Ah battery bank, you will combine 3 x 12V batteries in series to achieve a 36V 100Ah battery bank.
